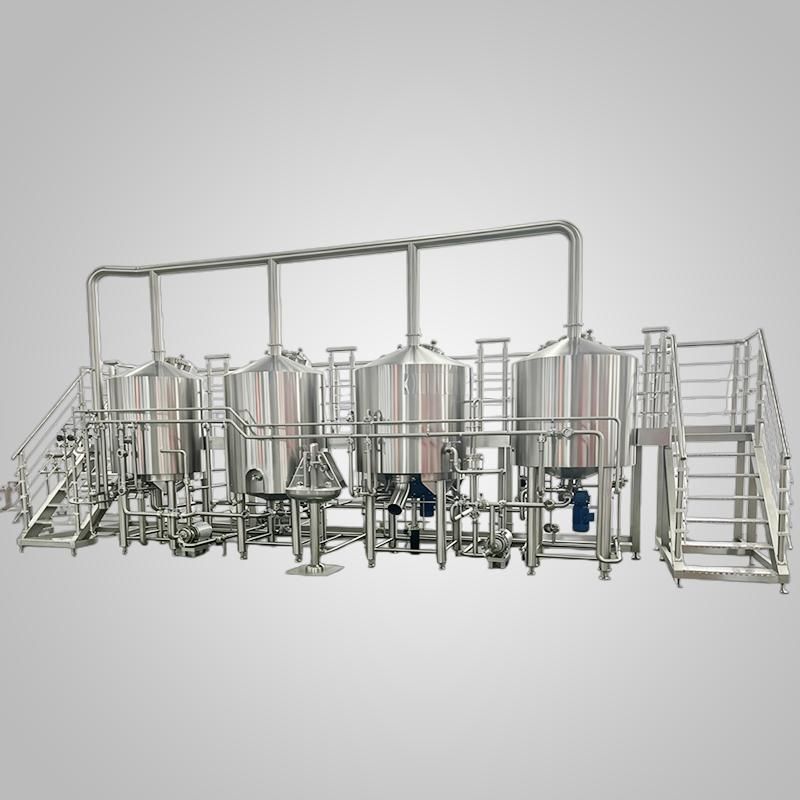

2000L Industrial Brewery

Product Paramenters

Advantage of Configuration

---------------------------------------------------------------------------------------------------------------------------------------

▶ 4-vessel brewhouse can achieve 6 batches of brewing per day, laying a good foundation for the expansion of productionØ

▶ Mixing unit for better mixing of grain and water

▶ The lower agitator motor has more torque;

▶ The liftable scraper cooperates with the pneumatic gate valve to automatically discharge the waste;

▶ Filter tank up to 10mm thick flat bottom and stainless steel square tube support, strong and stable

▶ The wort loop pipe with multiple branch pipes to collect the wort more evenly;

▶ The backwash loop pipe with multiple branch pipes to solve the difficulty of filtration;

▶ Independent heater in the kettl for better boiling effect;

▶ Specially designed steam jacket device to improve steam utilization efficiency and avoid "water hammer" problem

▶ Special tank and pipeline structure to avoid wort aeration problem and reduce material loss

▶ The boiling process can be carried out under pressure, especially for breweries at higher altitudes.

▶ Specially designed steam condensing unit with both steam condensing and hot water recovery functions

▶ Reserve the cooling capacity and pipeline interface for future expansion;

▶ Fully automatic control system: an automatic system with curve display and production record printing, which can store and recall a series of recipes, and complete the brewing process with one key;

2000L Brewhouse Standard Configuration

---------------------------------------------------------------------------------------------------------------------------------------

Malt Milling Unit

▶ Grist case

▶ Particles adjustable counter-roll dry crusher or wet crusher

▶ Flexible or steel auger lifts milled grain directly to the mash bucket

Brewhouse System

▶ Mash tun, lauter tun, kettle tun and whirlpool tun 4-vessel combination;

▶ Two-stage or single-stage heat exchanger for wort cooling;

▶ Wort oxygenation device before entering the fermenter;

▶ Hygienic and high-efficiency mash pump with frequency conversion

▶ Sanitary stainless steel pipes and valves

▶ Quick-install and fully detachable stainless steel operating platform

▶ Special combination of brewing water tank, hot water tank and cold water tank can be selected

2000L Brewhouse Optional Configuration

---------------------------------------------------------------------------------------------------------------------------------------

▶ Water treatment device for brewing water

▶ Gas or electric boilers for providing thermal energy;

▶ Filter press instead of filter tank;

▶ Waste grains conveying device with auger and grains storage tank

▶ Air compressor

▶ Tube sheets for centralized valve operation;

Model/Specification
