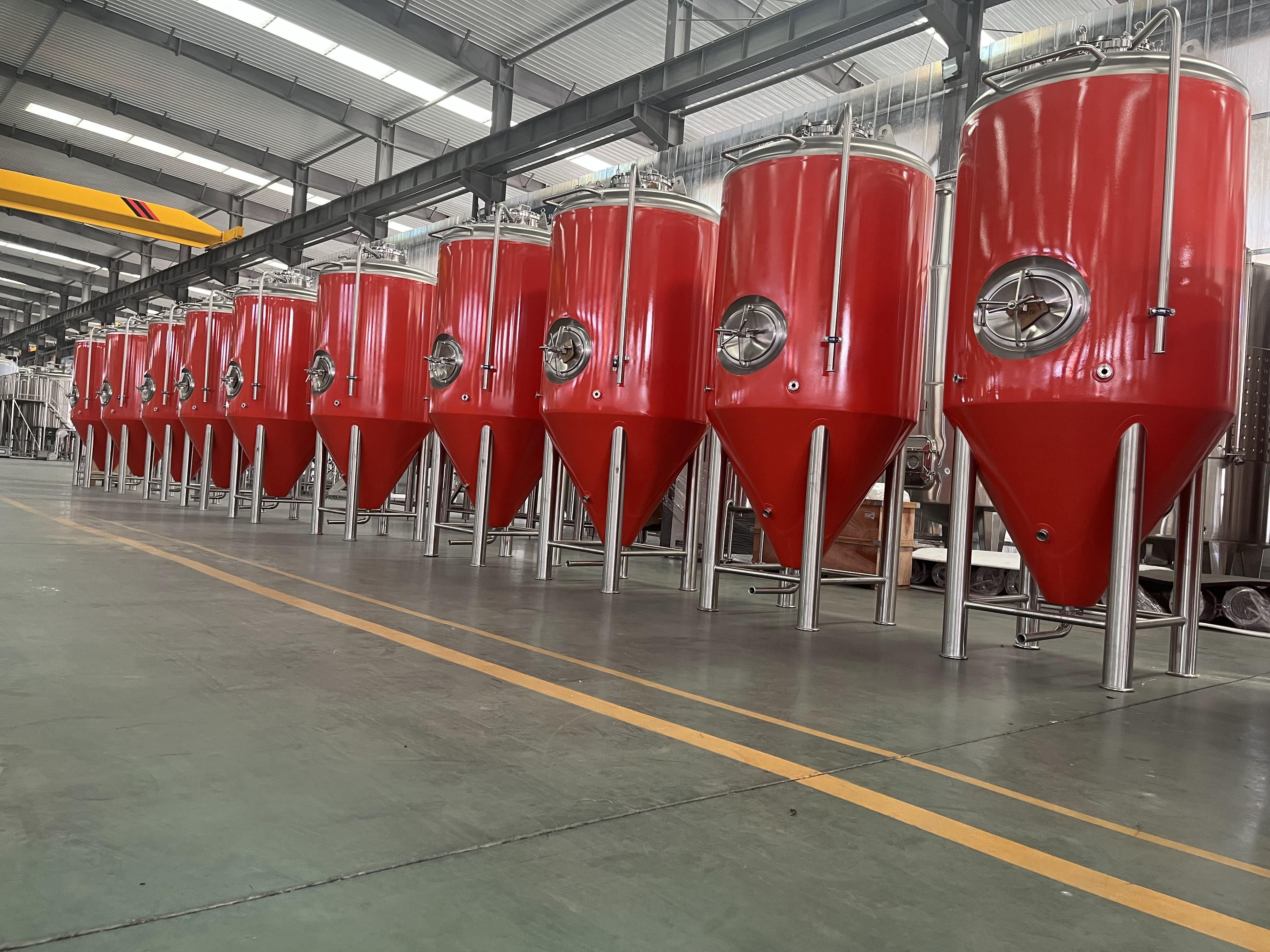

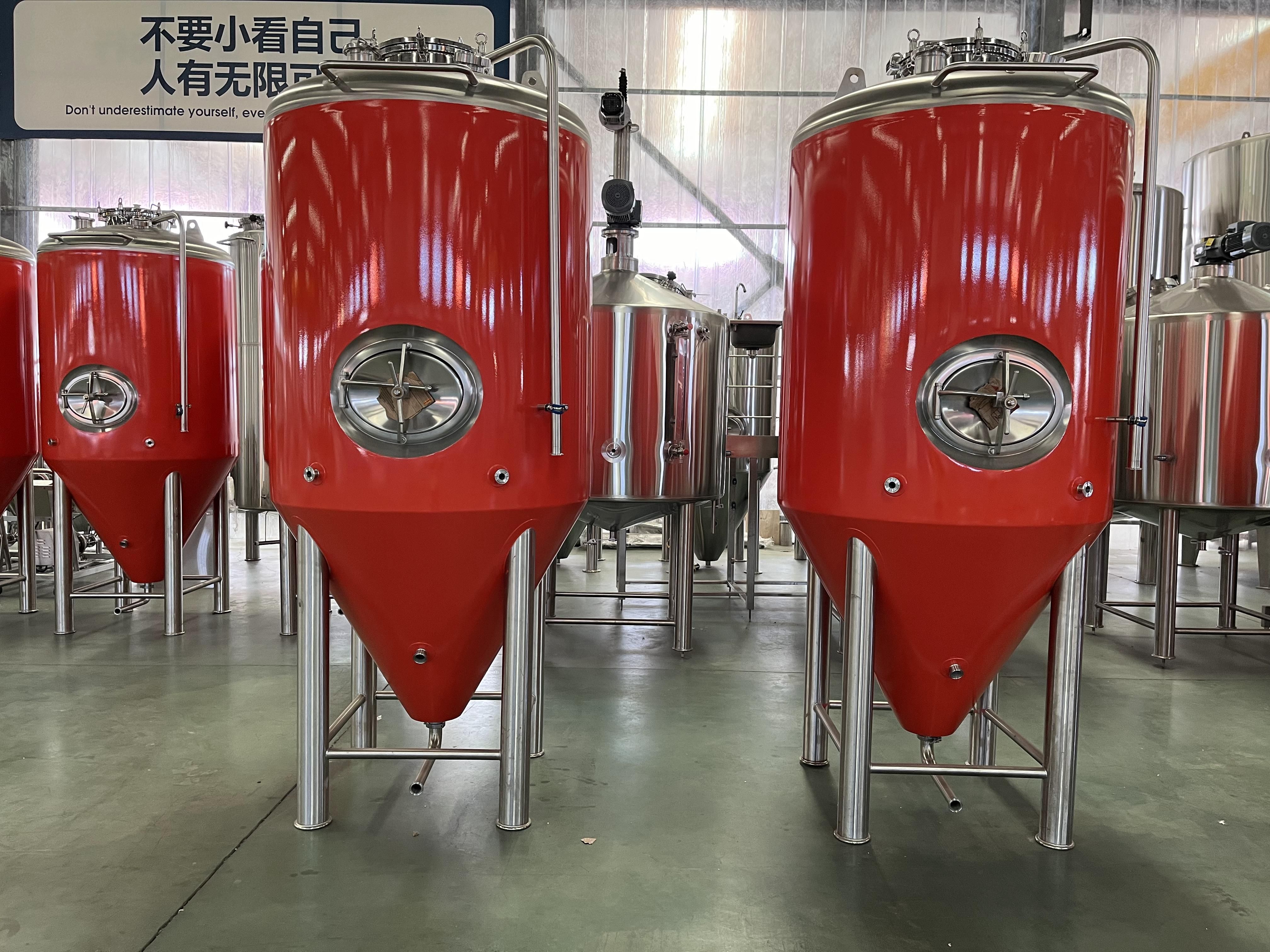

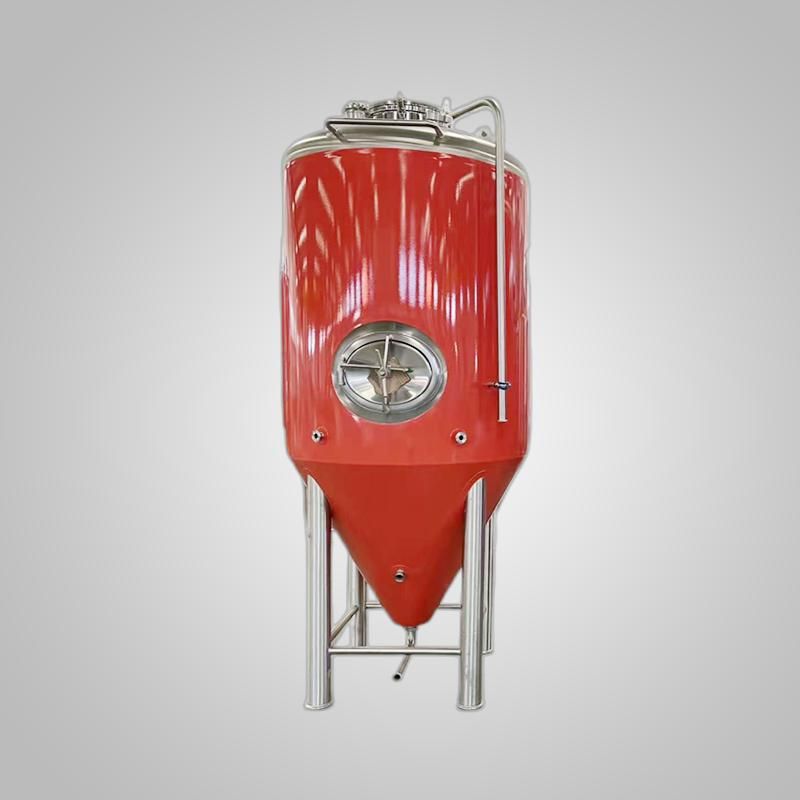

1000L Red Beer Fermentataion Tank

1000L Fermentation tank is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.

Product Paramenters

1000L Red Fermenter standard configuration

 Dished and conical head are available

 Pressure side manhole door

 TC connected CIP arm with 360° coverage spraying ball

 Sanitary sample valve

 Safety valve on top

 Mechanical safe valve PVRV 2.2 bar on CIP arm

 Diaphragm pressure gauge on CIP arm

 Horizontal rotating racking arm and port on cone with butterfly valve

 Tri clamp discharge arm with butterfly valve

 Dry hopping port 6-8'' TC with solid end cap

 Thermowell for high accuracy temperature sensor

 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

 Complete valves, fittings and all parts

 100% TIG welding with pure argon gas shield

 Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

 Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

 Glycol Jacket: Dimpled plate on cone and side

1000L Red Fermenter optional configuration

Separate blow-off pipe & CIP

Carbonation stone for CO2

Display temperature gauge in front

Liquid level display on the sidewall

Advantage of configuration

For easy yeast excretion, designed with a 60° cone angle

Polishing/drawing/mirror finish/pickling passivation optional

Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

The headspace is larger, and the covering headspace volume is calculated separately and additionally.

Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

For flexible conveying of beer, it is equipped with a swivel rocker

To ensure tank alignment and leveling, it is equipped with adjustment bolts
