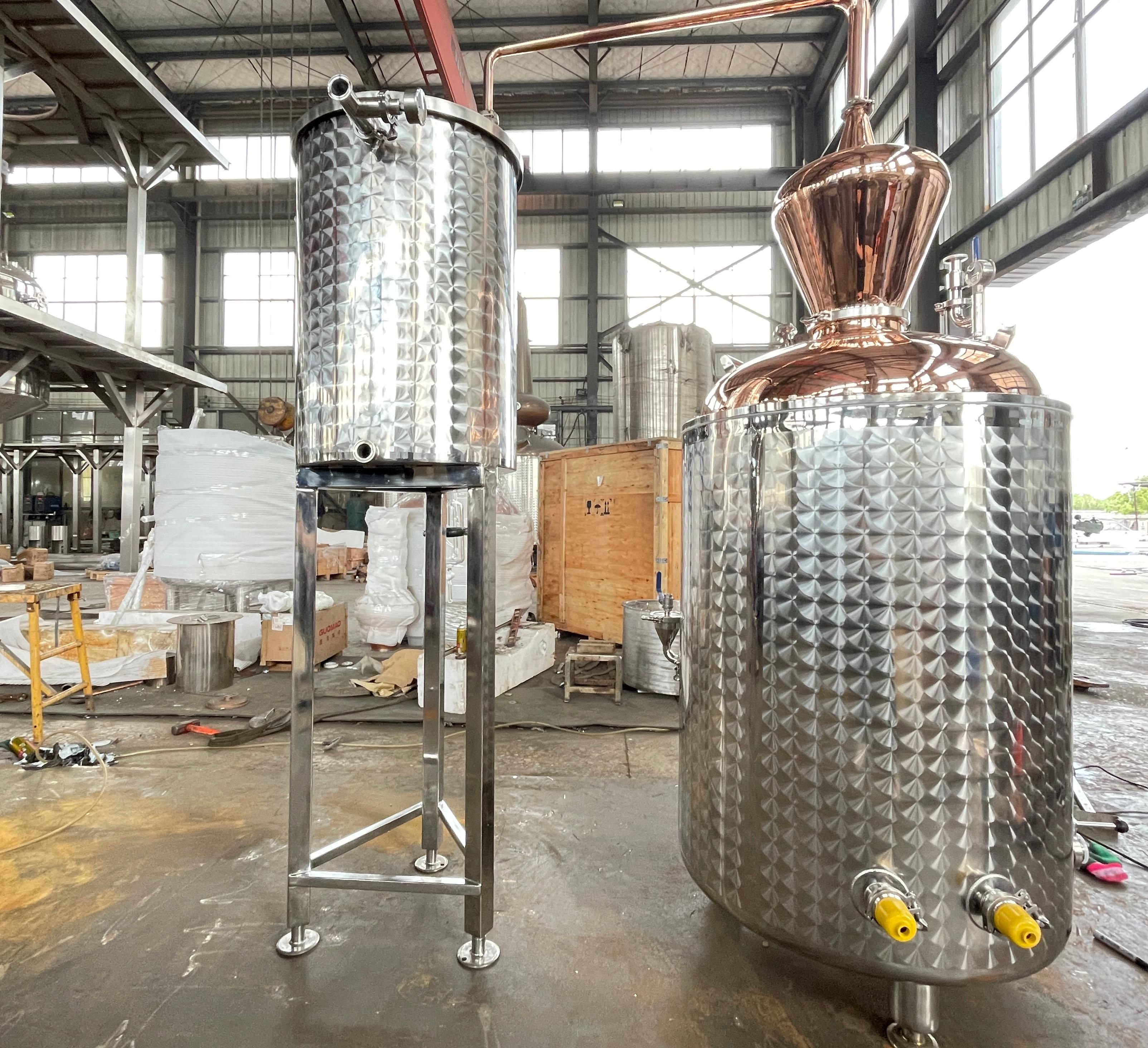

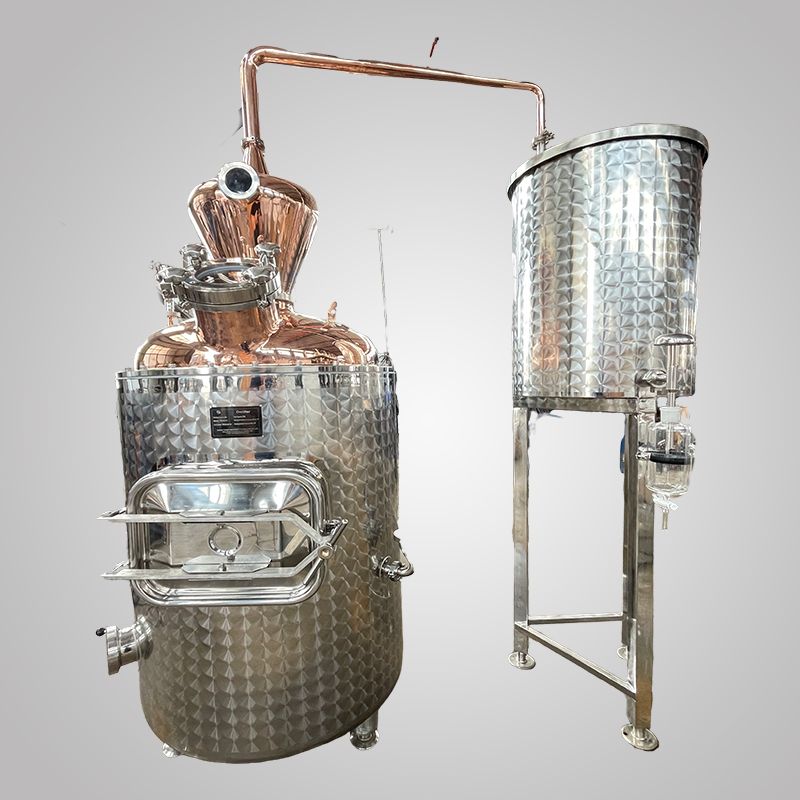

200L Hydrosol Distiller

A heavy-duty, hybrid system built for high-volume botanical extraction.

When your production schedule demands speed, capacity, and repeatability, this 200L hybrid distiller delivers. It combines the aromatic purity of a pure copper distillation head with the durability and hygiene of a stainless steel boiler—and adds a game-changing feature: an internal perforated basket that eliminates the messiest part of essential oil production. It is a complete, turnkey system for commercial hydrosol and essential oil producers.

The internal basket changes everything.

If you have ever tried to clean spent botanical material out of a narrow-necked still, you know the pain. This system solves that problem entirely. A large, perforated stainless steel basket sits inside the boiler, holding your botanical material while allowing steam and water to circulate freely. When the run is finished, simply open the massive side-mounted manway, slide out the basket, and dump the spent material. Cleaning goes from a two-hour chore to a ten-minute task.

Copper head, stainless body. The best of both worlds.

The distillation head is crafted from pure copper—the material that acts as a natural catalyst to strip away harsh sulfides and preserve delicate floral notes. The boiler, however, is built from food-grade SUS304 stainless steel, making it resistant to corrosion from acidic botanicals like citrus peel and witch hazel. You get the aromatic benefits of copper without the patina management and fragility of an all-copper still.

Massive side manway for effortless loading and unloading.

The 200L boiler features an oversized, quick-opening side manway with a glass viewing window. This design allows you to load botanical material directly into the internal basket, monitor the distillation process through the glass, and remove spent material without dismantling the entire system. It is an operator-friendly design that saves time, reduces labor, and keeps your production floor running smoothly.

Independent condenser tower for precise separation.

The vapor travels from the copper head through a copper arm into a dedicated, stand-alone stainless steel condenser tower. This vertical design maximizes cooling efficiency and promotes natural separation of essential oil and hydrosol. The collection vessel is equipped with a glass viewing window, allowing you to monitor the separation in real time and collect each fraction with precision.

200L Hydrosol Distiller-Product Advantages

1. Material & Craftsmanship

• Hybrid Boiler Construction (Copper Inner, Hammered Stainless Outer): The 200L boiler features a high-purity red copper inner bowl, which acts as a natural catalyst to preserve delicate aromatic compounds and terpenes during steam distillation. It is fully encased in a heavy-duty, diamond-hammered 304 stainless steel jacket, providing exceptional structural rigidity, superior thermal insulation, and maximum durability against the corrosive nature of essential oils and hydrosols .

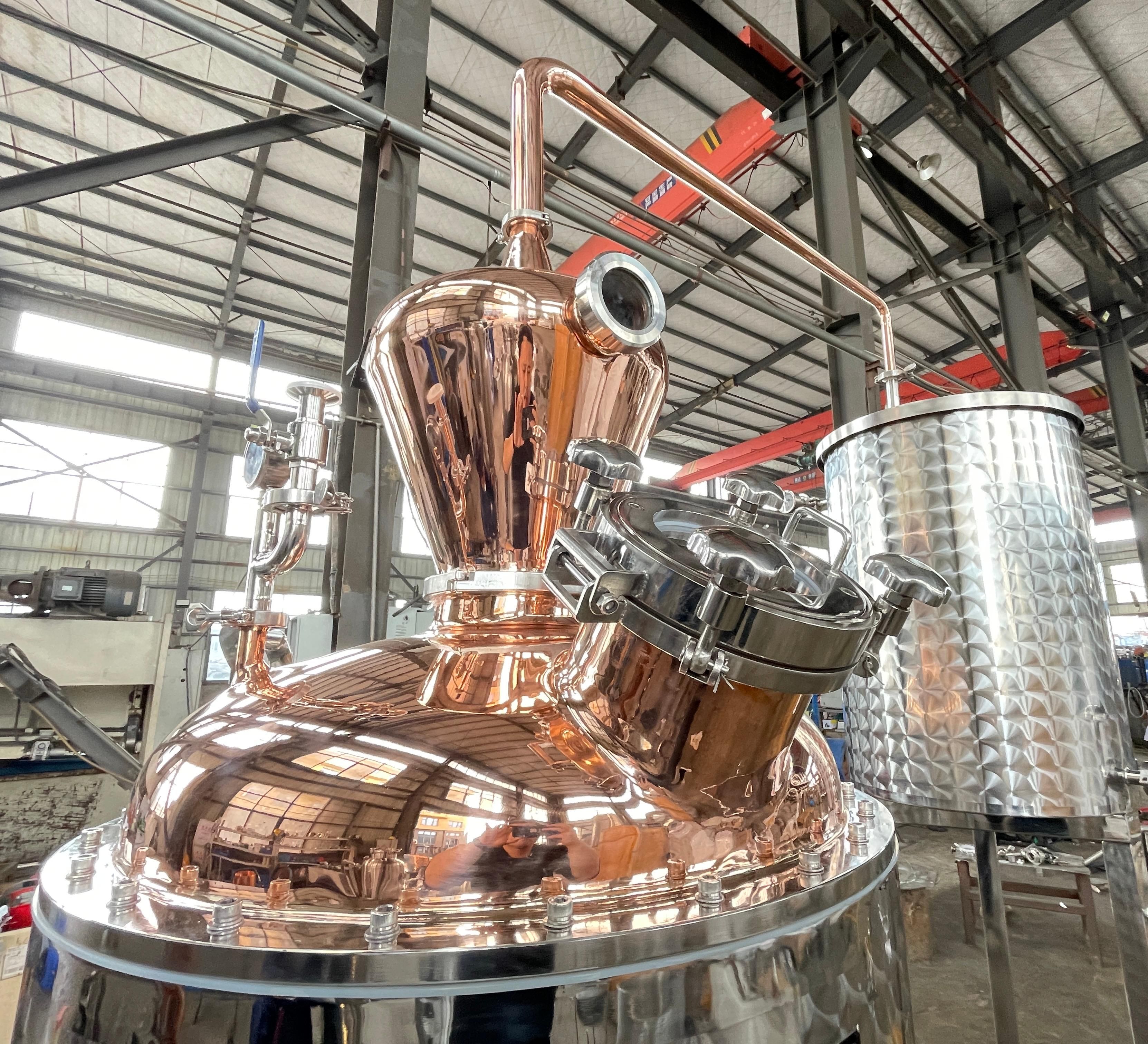

• Classic Copper "Trumpet" Onion Head: The boiler is topped with a beautifully hand-hammered copper expansion chamber featuring a flared "trumpet" neck. This traditional design allows hot, volatile vapors to expand and cool slightly before entering the gooseneck, preventing "bumping" of plant material and ensuring a pure, unburnt, true-to-nature hydrosol profile .

• Precision Stainless Steel Vapor Path: The vapor travels through a smooth stainless steel gooseneck into a high-efficiency vertical condenser, which rapidly cools the vapor back into liquid. The system is engineered with a dedicated glass essential oil separator (Florentine flask) to precisely separate the lighter essential oil from the heavier hydrosol based on density .

• Mirror-Polished Sanitary Finish: All wetted surfaces feature a mirror-polished finish to prevent organic residue adhesion. The system uses heavy-duty tri-clamp fittings with food-grade silicone gaskets, guaranteeing a perfectly vapor-tight, hygienic seal and effortless disassembly for cleaning (CIP) .

2. Functional Design

• 200L Commercial Botanical Batch Capacity: Specifically sized for commercial hydrosol production, aromatherapy distilleries, and botanical extraction facilities. The 200L working volume allows for the extraction of substantial yields of premium floral water and essential oil from flowers, herbs, roots, and spices.

• Integrated Essential Oil & Hydrosol Separation System: The dedicated glass separator allows the distiller to continuously and visually separate the lighter essential oil from the heavier hydrosol in real-time. This ensures zero cross-contamination and allows for the precise collection of both high-value products (pure oil and pure floral water) in a single continuous run .

• Optimized Vapor Path for Aromatic Purity: The combination of the tall copper "trumpet" onion head and the vertical condenser creates an optimal vapor path that minimizes thermal degradation of sensitive botanical compounds. This results in a superior, high-fidelity hydrosol that accurately captures the true essence and scent of the raw plant material.

• Precision Multi-Valve Monitoring & Control: The boiler is equipped with high-accuracy dial thermometers and multiple control valves. This allows the operator to precisely manage temperature, pressure, and vapor flow, ensuring delicate botanical compounds are not destroyed by excessive heat, resulting in a consistent, high-quality product batch after batch.

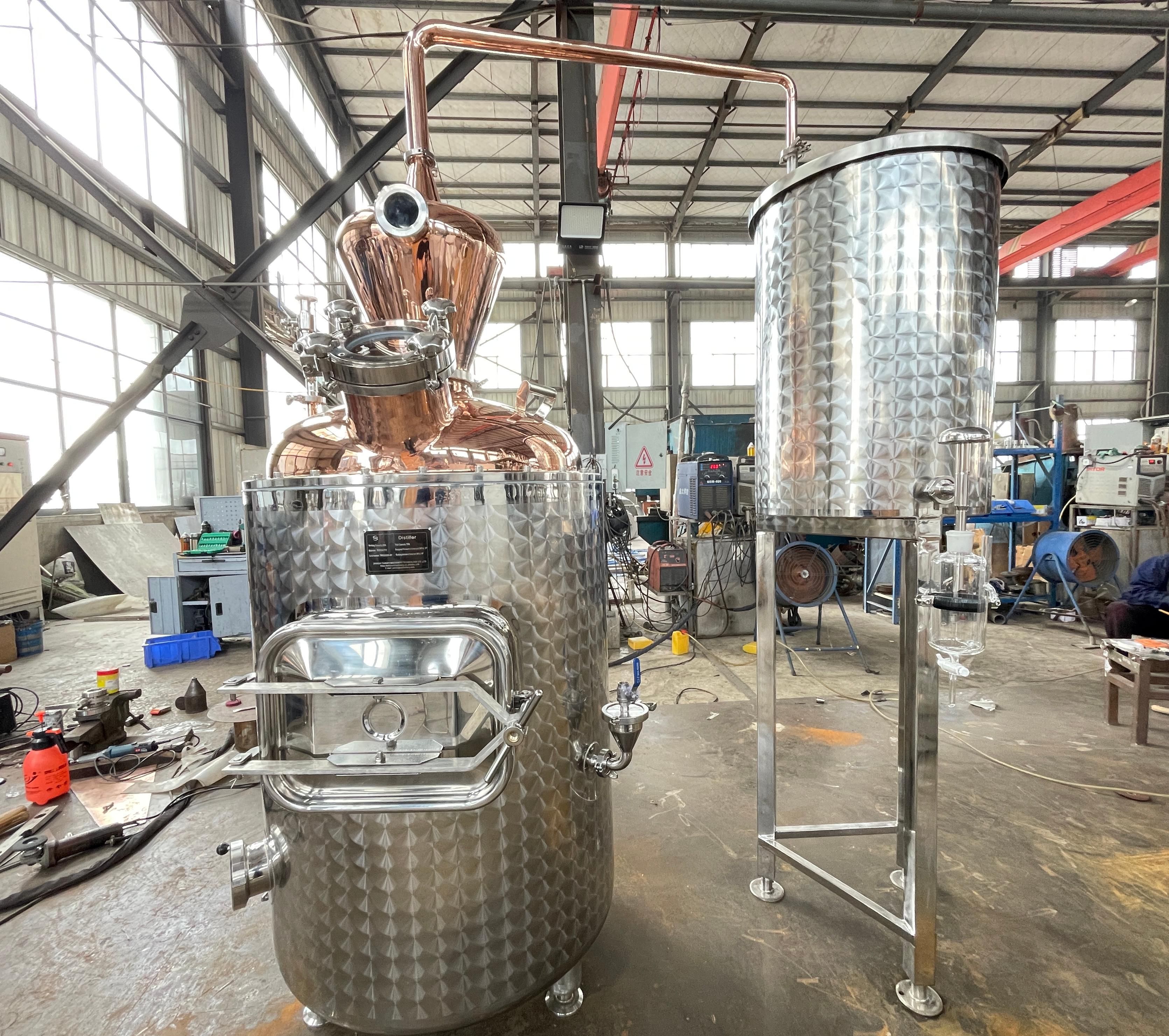

• Large Front Manway for Easy Loading & Cleaning: The boiler features a wide, rectangular front manway door with a heavy-duty clamp. This provides effortless access for loading bulky plant material and performing thorough deep cleaning of the copper inner bowl after each distillation run .

• Clean Electric/Steam Heating & Stable Support: Optimized for clean electric heating or gentle steam injection, the boiler guarantees a controlled, even boil that prevents scorching of the botanical material . The heavy-duty, adjustable stainless steel legs provide absolute stability on any factory floor or workbench, ensuring a safe and secure distillation process.
