1000L Pot and Column Still Whiskey Distiller

Your flagship system for large-scale craft production.

When you’re ready to scale up your distillery operation, this 1000L Pot and Column Still offers the perfect blend of rich, traditional flavor and modern industrial efficiency. Designed as a complete, modular distillation package, it pairs a massive pure copper boiler with a high-efficiency condenser and a dedicated independent stainless steel receiving tank. It’s built to handle continuous, high-volume production without sacrificing the nuanced character that defines premium whiskey, bourbon, or brandy.

A classic copper heart with massive capacity.

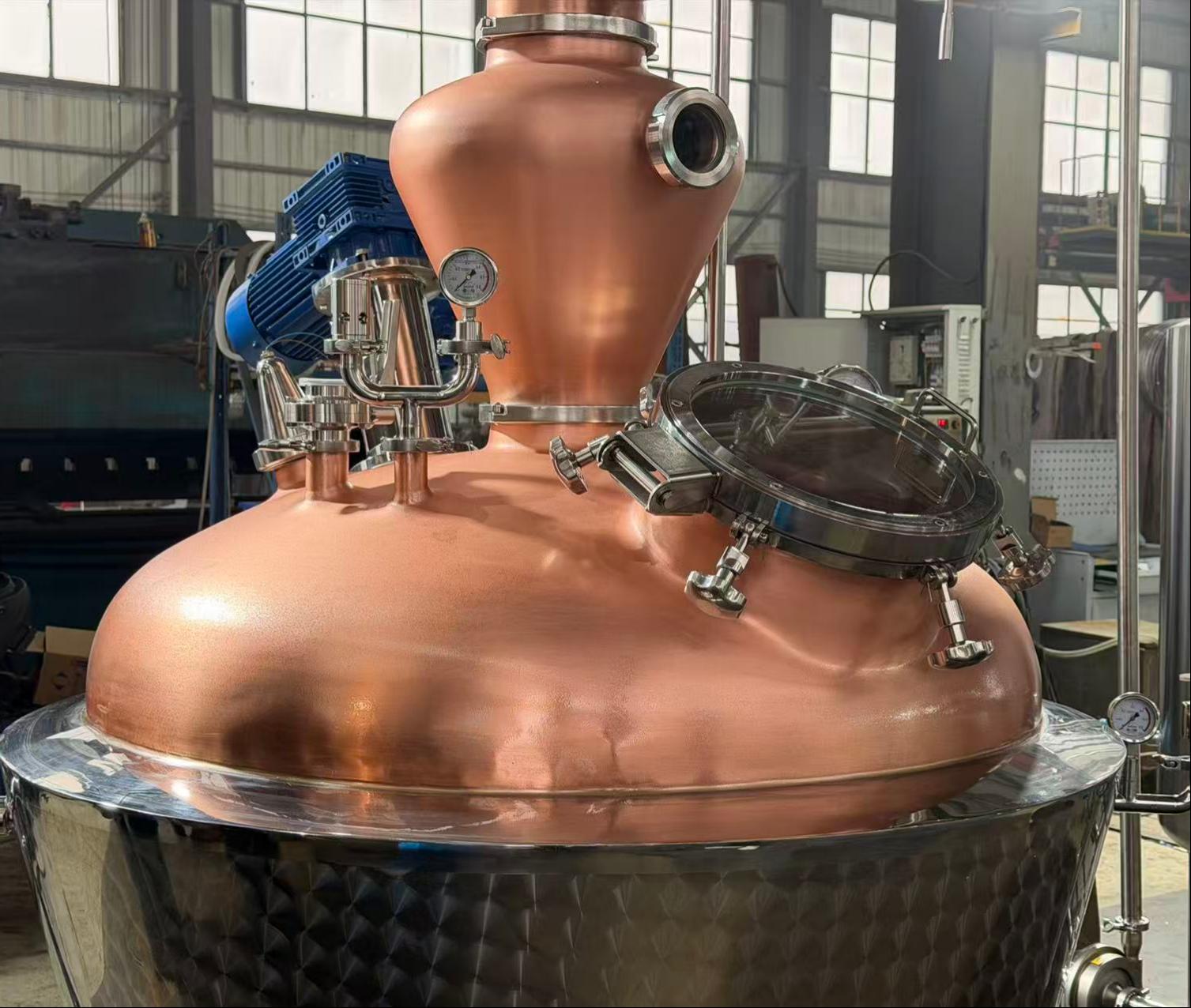

The centerpiece is the monumental boiler, featuring a robust food-grade SUS304 stainless steel base with a beautiful diamond-embossed finish, topped with a handcrafted pure copper onion-shaped dome. The multi-plate copper column, equipped with clear sight glasses, allows you to watch the vapor rise and reflux, ensuring precise cut separation. The pure copper construction naturally removes harsh sulfides, resulting in a remarkably smooth, complex, and aromatic spirit, even at such high volumes.

Complete turnkey modularity.

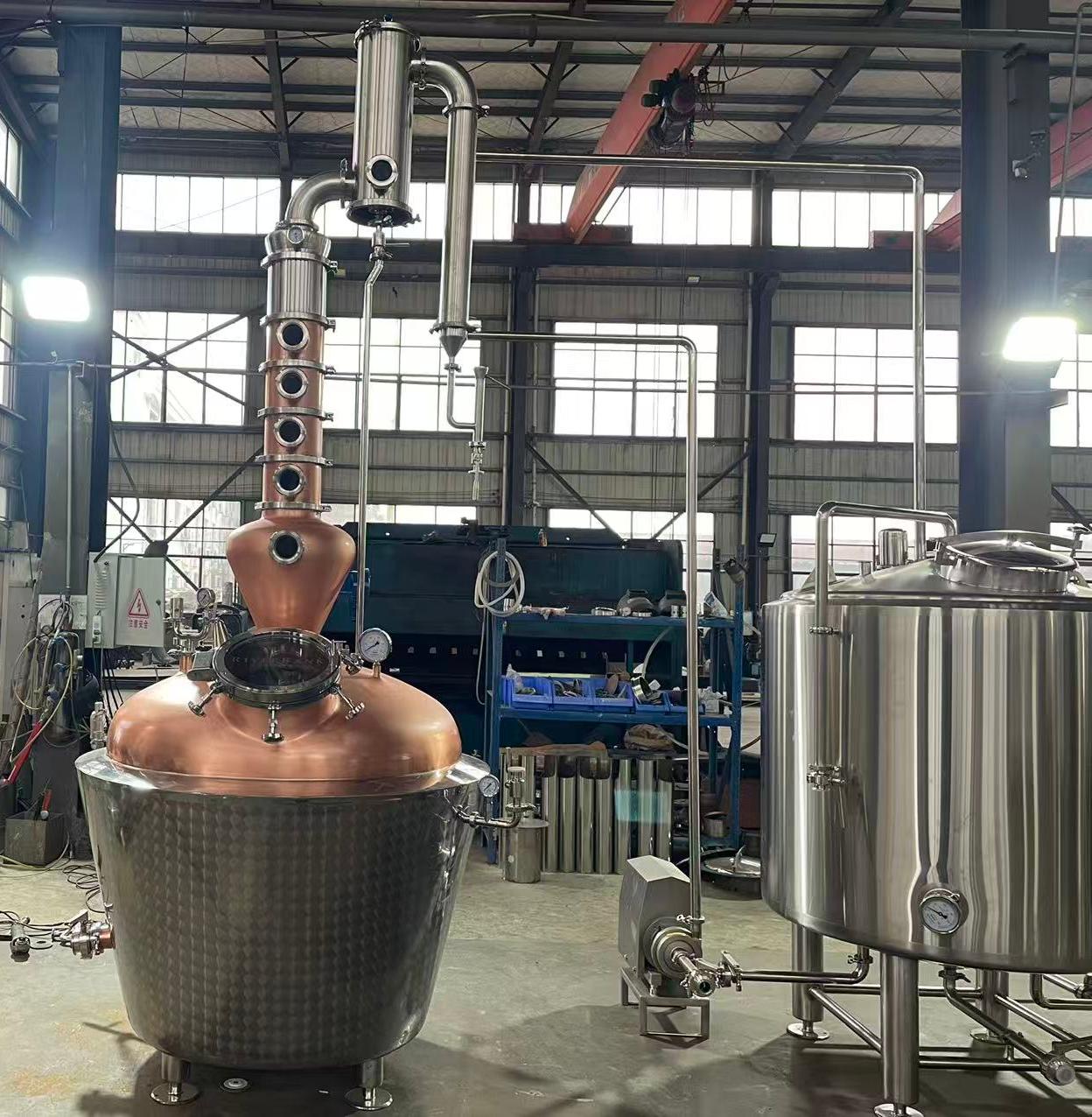

This 1000L setup is more than just a still; it's a fully integrated line. The high-efficiency stainless steel condenser ensures maximum cooling and flavor retention. The system features a dedicated independent stainless steel receiving/fermentation tank, complete with a sanitary pump and piping manifold. This thoughtful design allows distillers to easily pump their wash into the boiler, and transfer the finished distillate out seamlessly, creating an efficient, semi-automated workflow on your distillery floor.

Built to streamline your daily operations.
Operating a commercial distillery requires equipment that is easy to maintain. The large, angled quick-opening manway with a glass cover makes loading grains and cleaning the kettle remarkably simple. All gauges (pressure and temperature) are strategically positioned for quick monitoring, and the entire system utilizes sanitary Tri-clamp connections, making teardown and sanitation a quick, hassle-free process. This is a true industrial workhorse designed to grow alongside your brand.

1000L Hybrid Pot & Column Still for Whiskey Distillation-Product Advantages

1. Material & Craftsmanship

·  Large-Scale Hybrid Boiler (Copper Inner, Hammered Stainless Outer): The 1000L boiler features a thick, high-purity red copper inner bowl. This active copper surface catalyzes the removal of sulfides, producing a rich, fruity, and deeply complex malt profile characteristic of premium whiskey. The exterior is encased in a heavy-duty, diamond-hammered 304 stainless steel jacket, providing superior thermal insulation, structural rigidity, and complete resistance to harsh industrial wear and tear.

·  Classic Copper "Bow-Tie" Vapor Chamber (Onion/Whiskey Helmet): This still features an exquisite, hand-hammered copper expansion chamber (often called a "bow-tie" or "whiskey helmet") located between the pot and the column. This classic design allows heavy fusel oils and vapors to expand, condense, and fall back into the pot, naturally retaining a heavier, more textured, and robust pot-still body.

·  High-Purity Copper Rectification Column: The attached column is precision-built from food-grade red copper, fitted with bubble cap trays. The extensive copper path ensures maximum vapor purification, stripping unwanted harshness while enhancing the sweet, malty esters.

·  Mirror-Polished Components & Sanitary Fittings: All spirit-wetted paths feature a high-polish finish. The system utilizes heavy-duty tri-clamp connections and food-grade silicone gaskets, guaranteeing a perfectly sealed environment, absolute hygiene, and ease of disassembly for daily cleaning.

2. Functional Design

·  1000L Commercial-Grade Production Scale: Designed for established distilleries and large micro-breweries. The 1000L working capacity allows for substantial batch production, providing high daily throughput while retaining the flexibility to craft unique small-batch recipes.

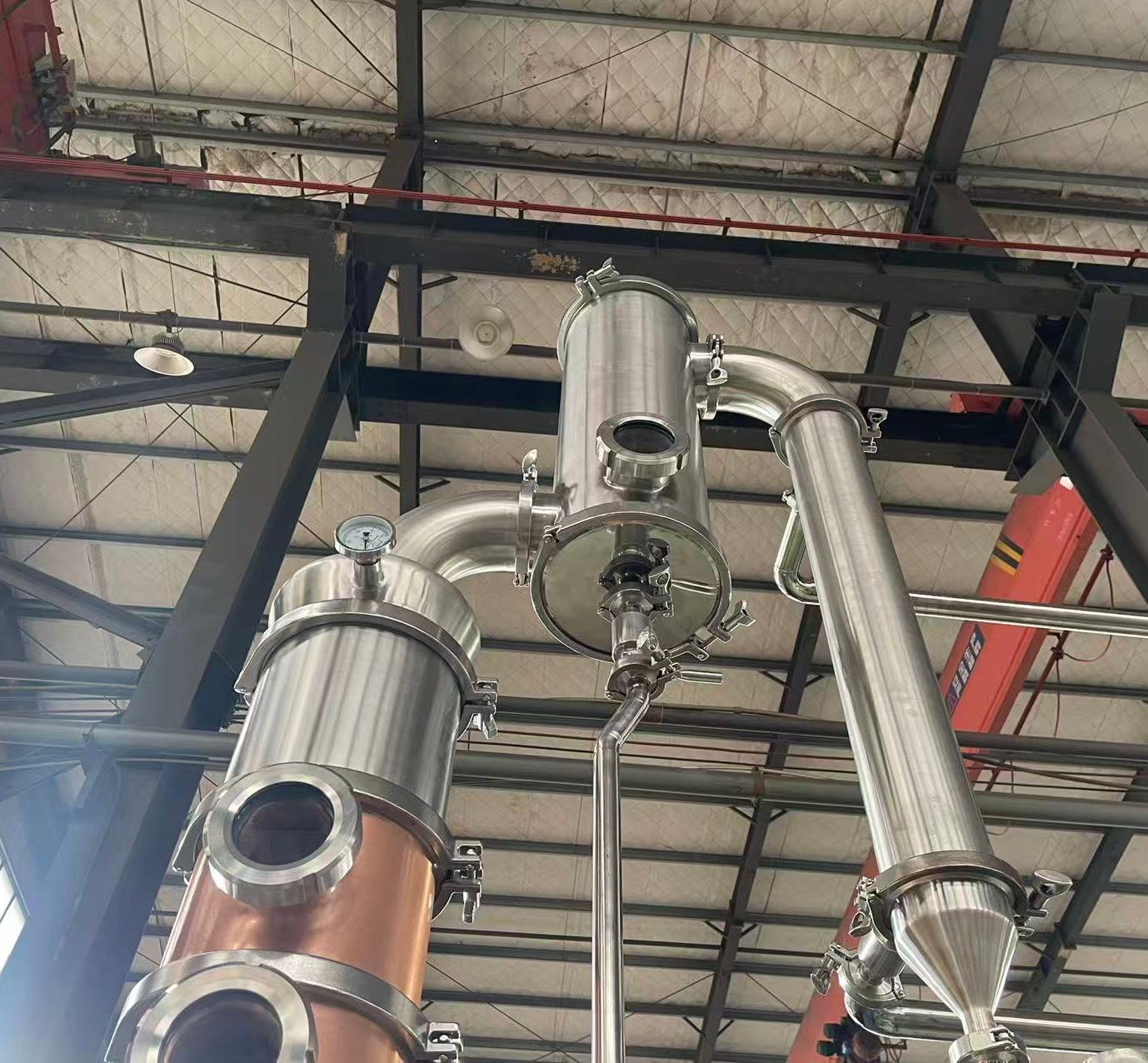

·  Optimized Top-Mounted Condenser System: The condenser is strategically installed at the top of a curved vapor arm. This space-saving design reduces the overall footprint and height requirements of the still. The high-efficiency stainless steel condenser ensures rapid, complete vapor condensation, minimizing alcohol volatilization loss and maximizing final yield.

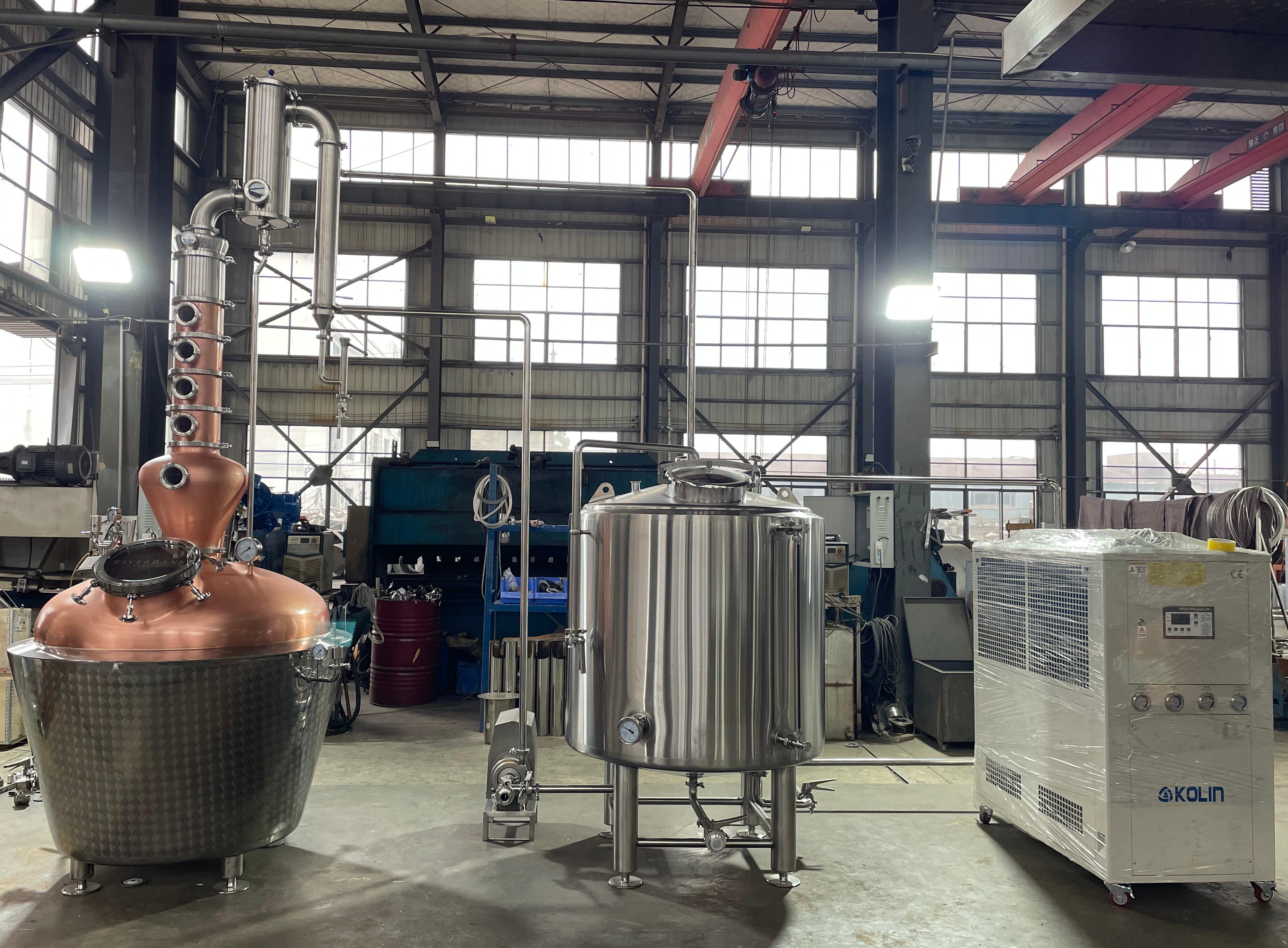

·  Integrated Mash Tun & Transfer Pump System: The system is accompanied by a separate stainless steel mash tun/collection tank. It is connected via a food-grade transfer pump and sanitary piping (as seen in the images). This integrated design streamlines the workflow: wash can be easily pumped into the still for distillation, and finished distillate can be efficiently transferred or collected, significantly reducing manual labor and improving overall efficiency.

·  Versatile Hybrid Pot & Column Operation: The complex valve manifold allows distillers to switch seamlessly between Pot Still mode (heavy, rich, oily spirit) and Column Still mode (lighter, cleaner, higher-proof spirit), offering immense flexibility to adapt to different product lines or whiskey styles.

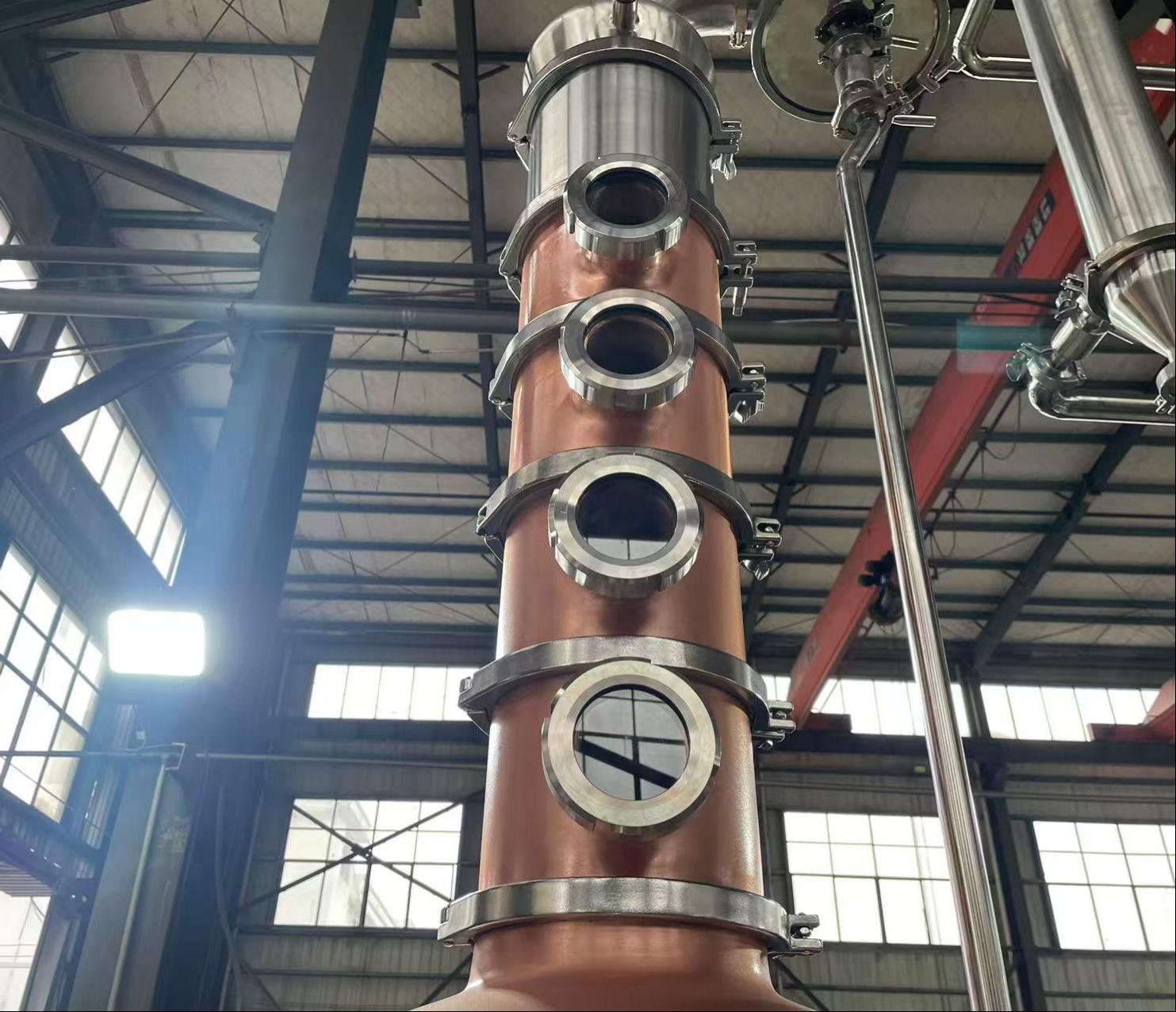

·  Precision Multi-Sight-Glass Observation & Control: The copper column is equipped with multiple strategically placed sight glasses. This provides a crystal-clear, real-time visual of the internal vapor rising, bubbling, and reflux flooding. Combined with high-accuracy dial thermometers on the column and pot, distillers can make exceptionally precise cuts (Heads, Hearts, Tails).

·  Clean Heating & Ergonomic Accessibility: Optimized for electric or steam heating to provide precise temperature control and prevent scorching. The large front manway offers effortless access for loading wash, while the heavy-duty bottom drain valve ensures quick and easy removal of spent grains. Heavy-duty adjustable leveling feet guarantee absolute stability on any factory floor.
