2000L Multi-functional Distiller

Industrial-Scale Precision for High-Volume Spirits

The 2000L Multi-functional Distiller is a comprehensive, high-capacity unit engineered for the demanding needs of large-scale commercial distilleries. Combining traditional copper pot still craftsmanship with advanced rectification technology, the 2000L Multi-functional Distiller offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.

Premium Copper & Stainless Steel Construction

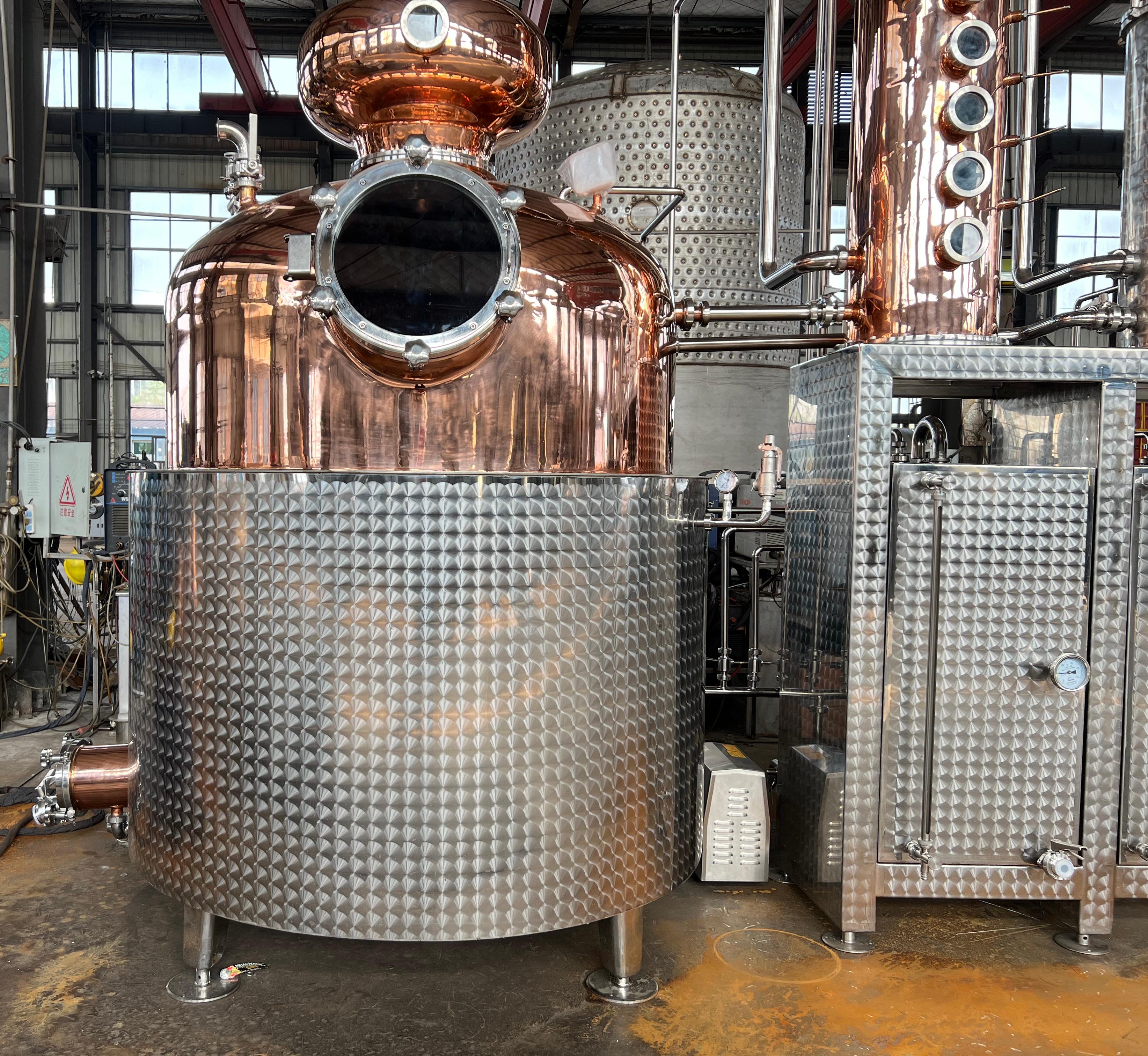

The 2000L Multi-functional Distiller features a hybrid build that maximizes both flavor profile and industrial durability. The main boiler is encased in a polished, diamond-patterned stainless steel jacket with a massive copper head and traditional onion-style helmet. This ensures that the 2000L Multi-functional Distiller effectively removes unwanted sulfur compounds while maintaining the structural integrity required for high-volume operations.

Advanced Multi-Plate Rectification

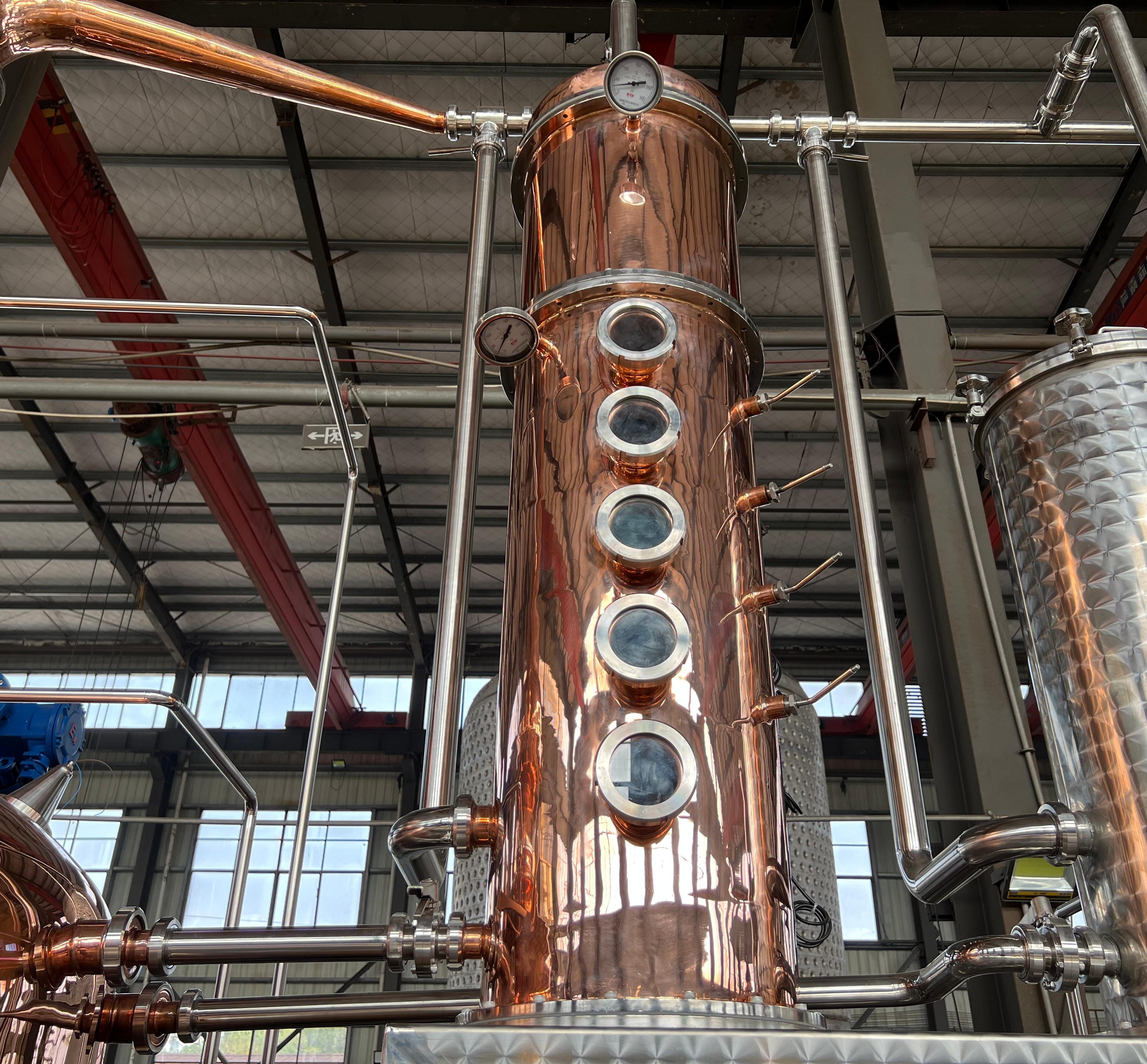

The standout feature of the 2000L Multi-functional Distiller is its tall rectification column, equipped with multiple theoretical plates. Each plate is fitted with a dedicated sight glass, allowing the distiller to monitor liquid-vapor interaction in real-time. This high-efficiency design allows the 2000L Multi-functional Distiller to achieve maximum purity with fewer distillation runs.

Integrated Modular Design

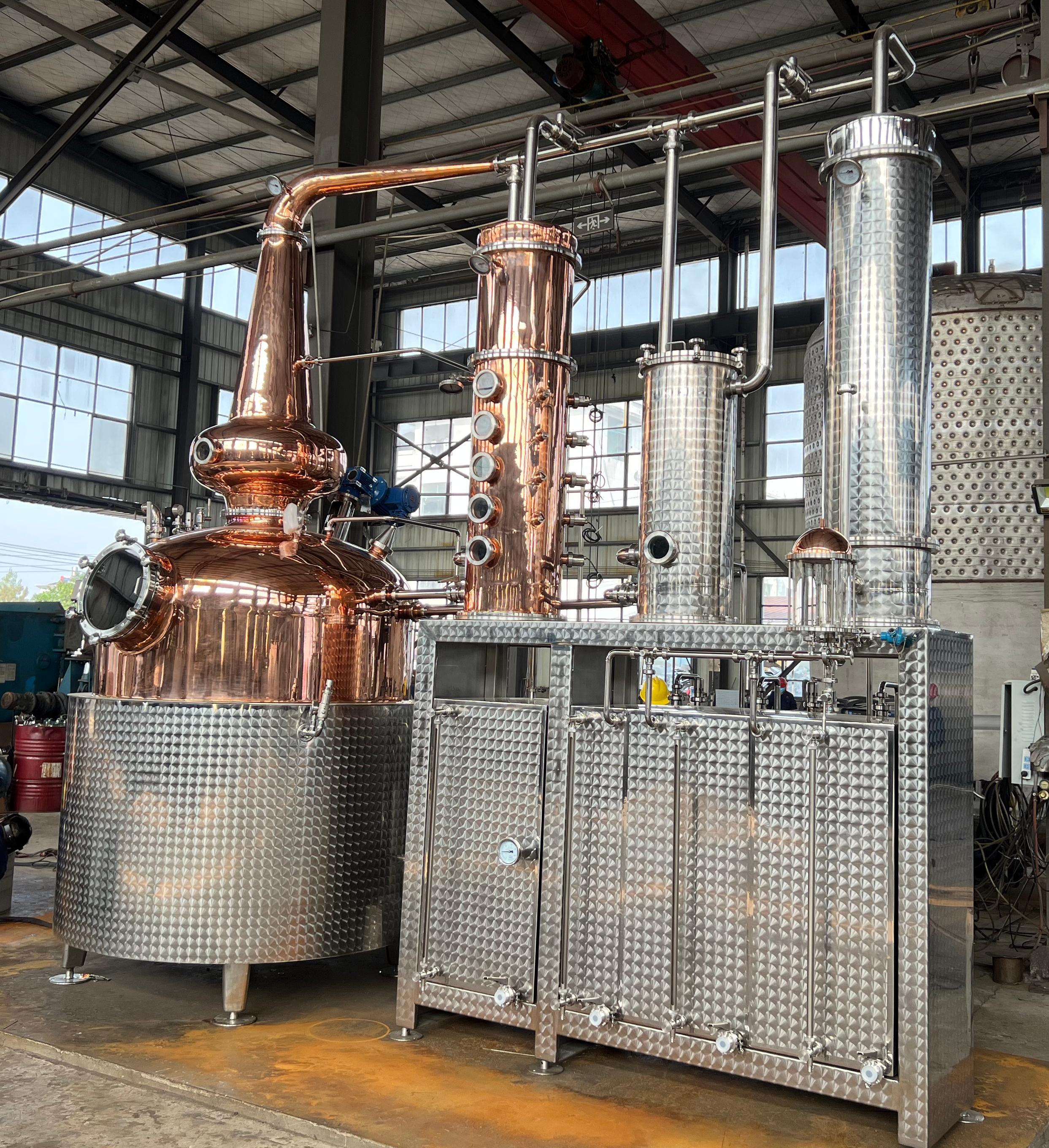

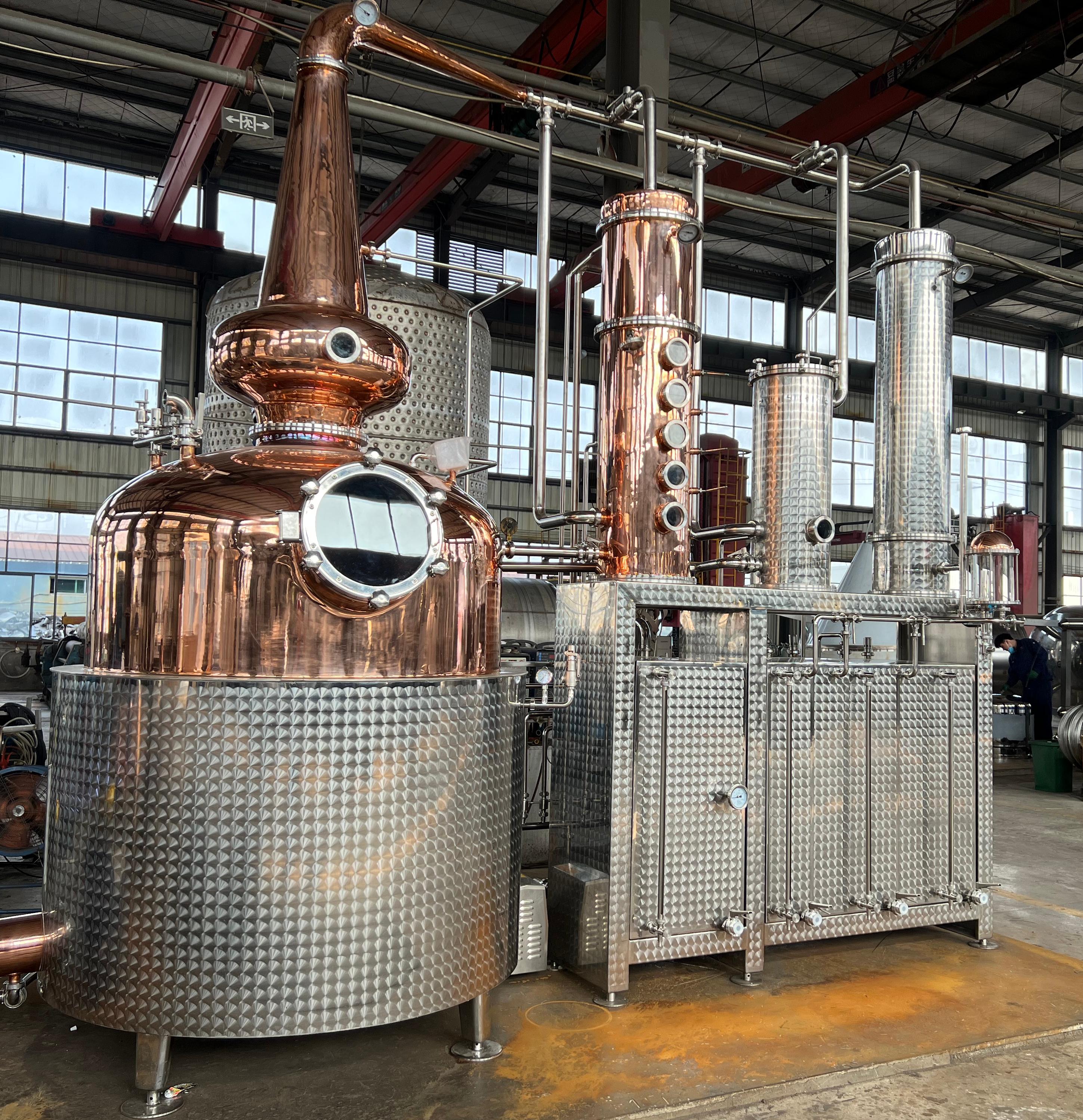

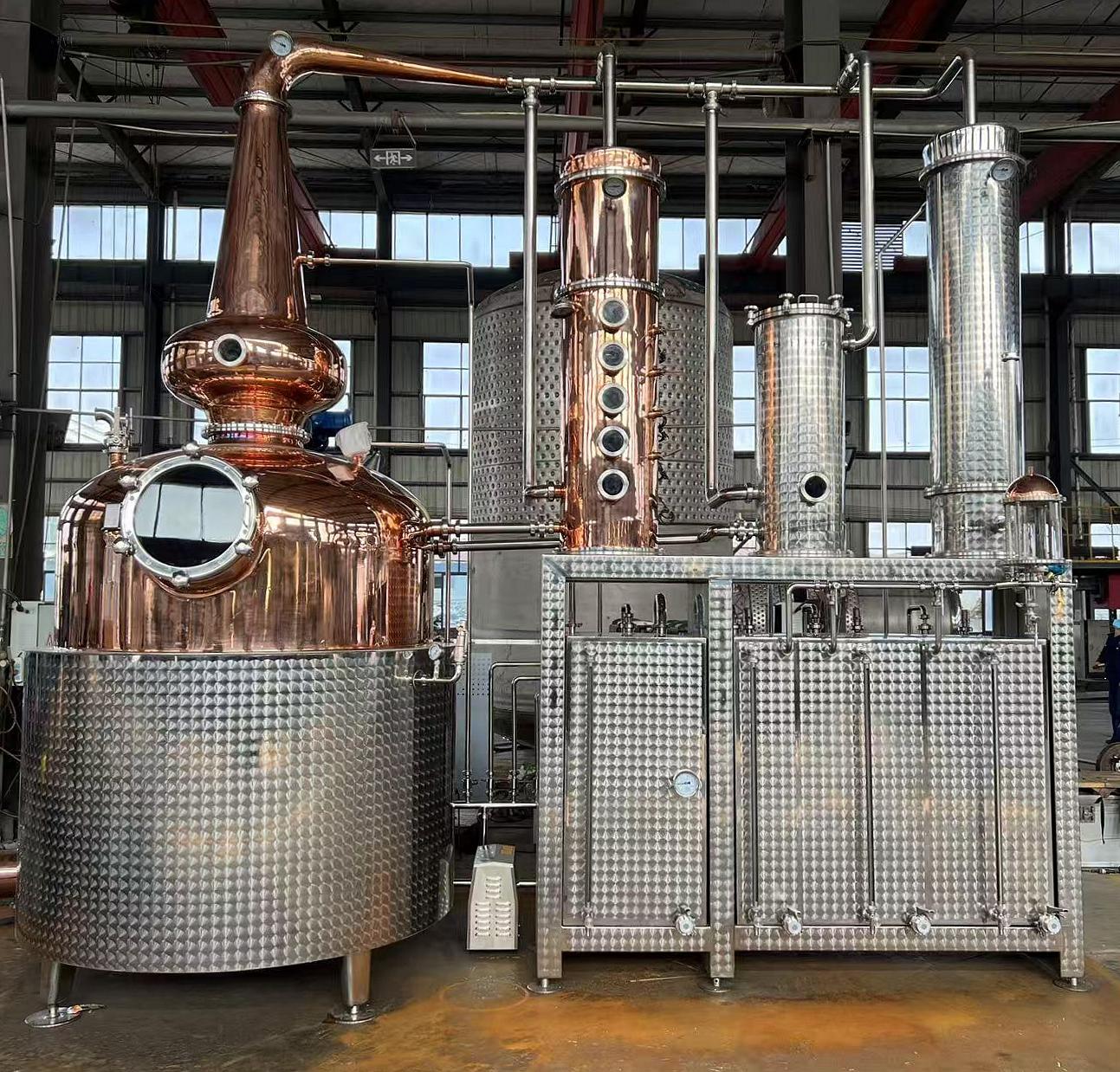

The 2000L Multi-functional Distiller is designed as a complete, integrated workstation. It includes a heavy-duty stainless steel frame that houses the collection vessels, pumps, and auxiliary filtration columns. This "all-in-one" approach, combined with integrated gauge panels, makes the 2000L Multi-functional Distiller easy to install and operate in a professional distillery environment.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

2000L Multi-functional Distiller— Product Advantages

1. Material & Craftsmanship

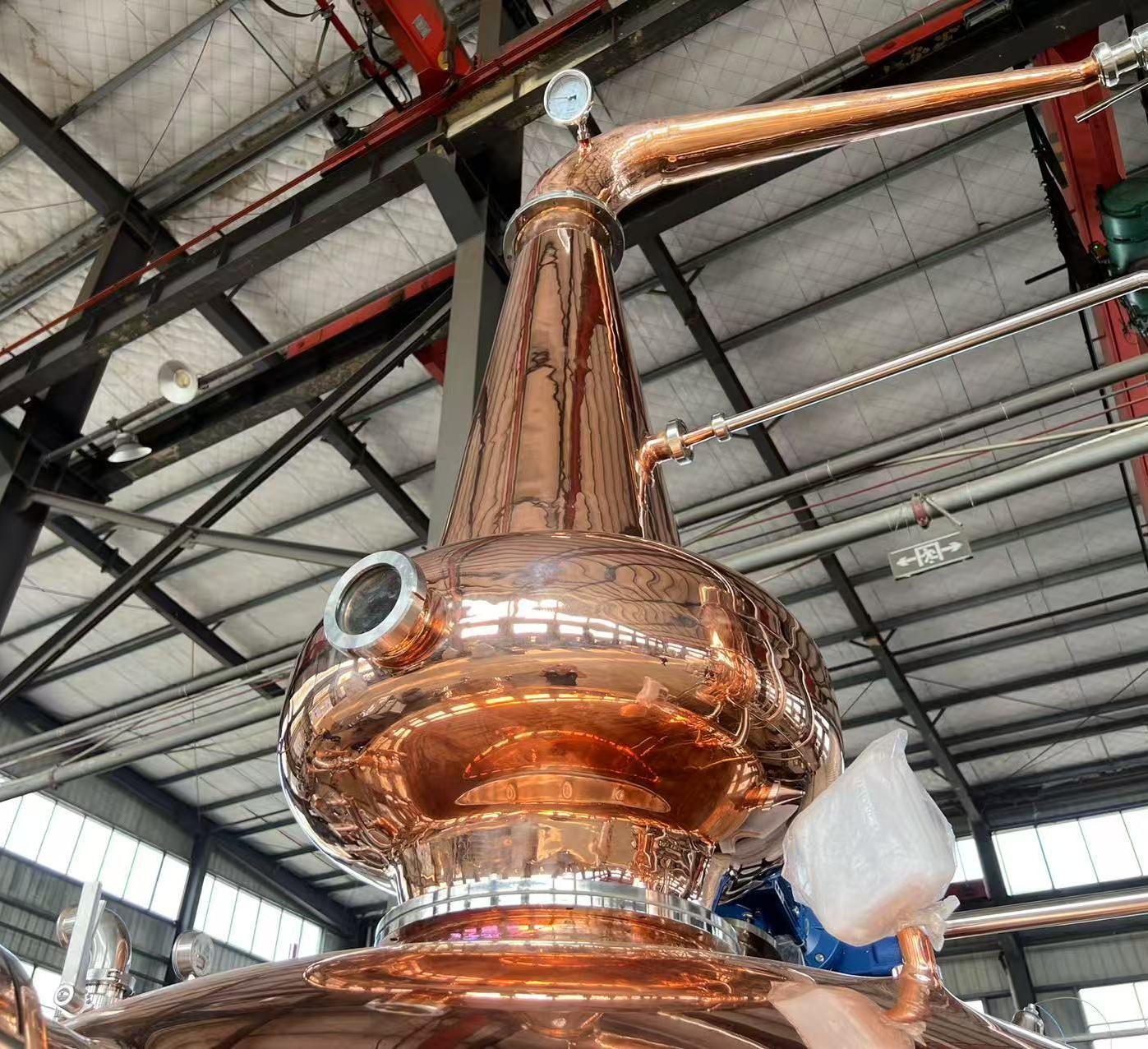

          • Premium Copper Pot Still & Multi‑Stage Helmet: Crafted from high‑purity red copper with mirror‑polished finish. The distinctive multi‑stage bulbous helmet provides extended copper contact for superior sulfur removal and spirit smoothness.

          • 304 Stainless Steel Boiler & Frame: Hammered‑finish stainless steel boiler jacket, dephlegmator, condenser, and heavy‑duty integrated base — corrosion‑resistant, easy‑to‑clean, and built for continuous industrial‑scale operation.

          • Hygienic Pipeline Connection: Quick‑clamp ferrule connections throughout the system allow tool‑free disassembly and assembly, with no dead corners during cleaning for full food‑grade hygiene compliance.

2. Functional Design

          • 2000L Maximum Production Capacity: The flagship model in the multi‑functional series, delivering maximum throughput for large‑scale commercial distilleries and industrial spirit production operations.

          • 5‑Plate Copper Rectification Column: Equipped with 5 copper rectification plates, each featuring an observation window for real‑time distillation monitoring and precise fraction separation control.

          • Dedicated Stainless Steel Dephlegmator: Hammered‑finish partial condenser with sight glass provides adjustable reflux ratio, allowing operators to fine‑tune spirit character from full pot‑still flavor to vodka‑grade neutrality.

          • Multi‑Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for industrial‑scale commercial distilleries.

3. Temperature Control & Monitoring

          • Multi‑Point Temperature Detection: Thermometers installed at the pot still, helmet, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

          • Pressure Indication System: Multiple industrial‑grade pressure gauges fitted at the boiler, helmet, and column sections to ensure safe operating conditions throughout each production run.

          • Safety Valve: Pressure relief valve installed on the boiler to prevent over‑pressure conditions, ensuring operator and equipment safety during high‑capacity operations.

4. Structural Advantages

          • Integrated Cabinet‑Style Base: Heavy‑duty hammered stainless steel base with multiple access doors conceals collection vessels and piping, providing a clean professional appearance while housing essential support equipment.

          • Heavy‑Duty Reinforced Frame: Oversized structural frame provides exceptional stability and support for the large‑capacity columns and condenser, engineered for continuous industrial use.

          • Modular Column Construction: Each plate section can be independently disassembled via tri‑clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.

          • Industrial‑Grade Conical Legs: Heavy‑duty stainless steel conical legs provide stable, elevated mounting for the massive pot still, allowing easy floor cleaning and drainage beneath the unit.
