Multi-functional Distiller
Professional-Grade Capacity with Integrated Efficiency

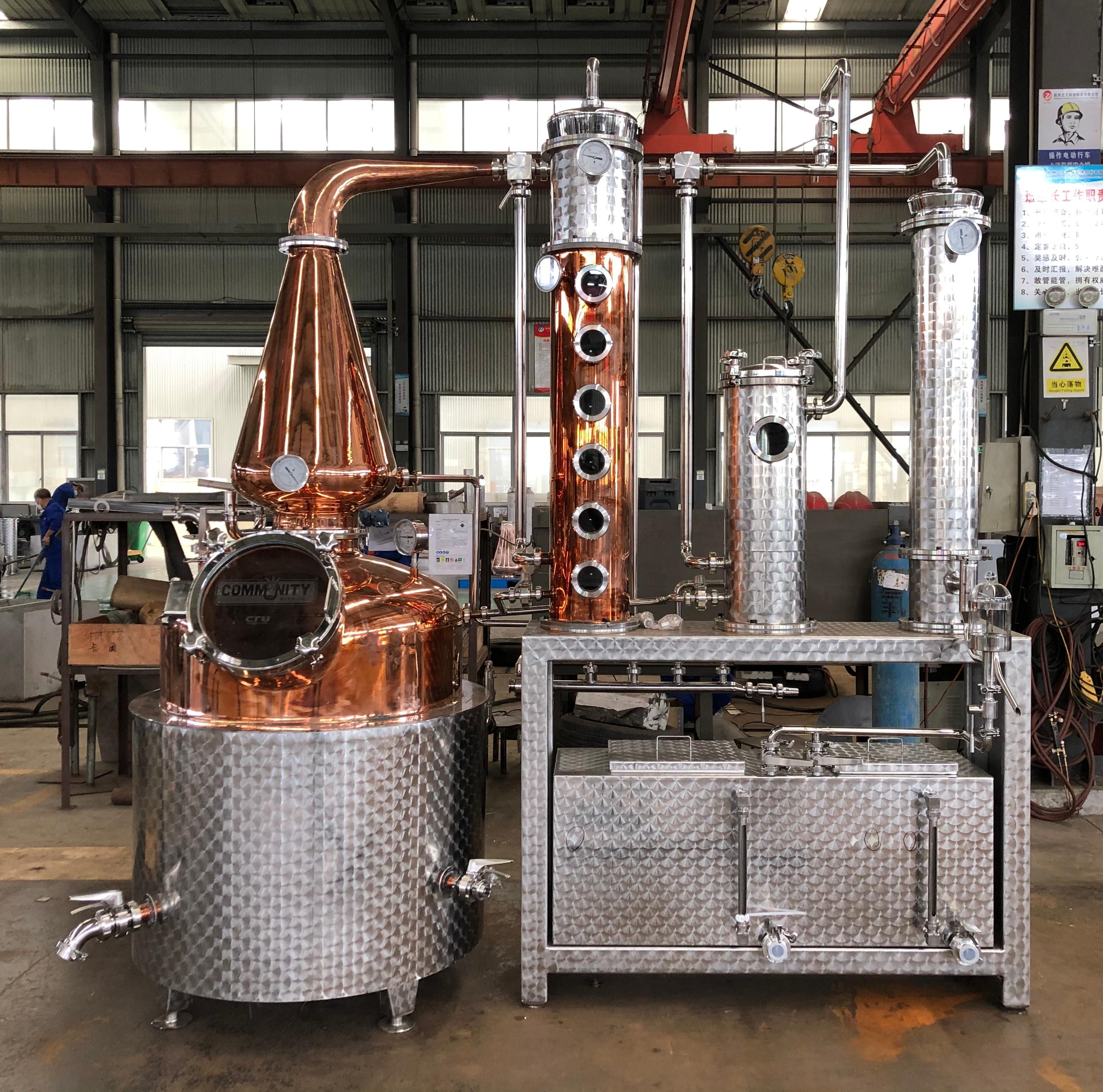

The 300L Multi-purpose Distillation Still is a comprehensive, high-capacity unit engineered for the demanding needs of professional craft distilleries. Combining traditional copper pot still craftsmanship with advanced rectification technology, the 300L Multi-purpose Distillation Still offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.
Premium Copper & Stainless Steel Construction
The 300L Multi-purpose Distillation Still features a hybrid build that prioritizes both flavor profile and industrial hygiene. The boiler head, onion, and rectification columns are crafted from high-purity copper to facilitate natural catalysis, effectively removing unwanted sulfur compounds. This is complemented by a durable, textured stainless steel jacket, ensuring that the 300L Multi-purpose Distillation Still maintains a sleek, professional appearance and food-grade durability.
Advanced Rectification & Visibility
At the heart of the 300L Multi-purpose Distillation Still is a multi-plate rectification column equipped with high-visibility sight glasses. These allow the distiller to observe the liquid-vapor interaction at every stage in real-time. This visual feedback is critical for making the precise cuts required to produce world-class spirits using the 300L Multi-purpose Distillation Still.
Integrated Collection Base
A defining feature of this 300L Multi-purpose Distillation Still is its integrated stainless steel base cabinet. Designed for organization and efficiency, this unit houses the collection vessels and pumps, reducing the footprint on the distillery floor while keeping essential components protected and accessible.
ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.
Application | Use Case |
Spirits | Whiskey, brandy, gin, vodka, rum |
Botanical Extracts | Essential oils, herbal distillates |
Purified Water | Distilled / deionized water production |
R&D / Education | Lab-scale distillation experiments & training |
| Model | ZR-DT-300L |
| Capacity | Effective volume: 300L |
| Material | SUS304 SUS316 Red Copper |
| Uasge | Whisky Brandy Rum Gin Vodka Others |
| Application | Home commercial |
| Heating way | Electric heating Steam heating Direct fire heating |
| Control System | Fully automated with PLC Siemens Semi-Automated with PID Schneider |
| Voltage | Three-phase/380(220, 415,480…)v/50(60)Hz Single phase/220(110, 240…)v/50(60)Hz |
| Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter | |
| Types | Volume | Component |
| Whisky distiller | 50-5000L | Still pot, swan neck, condenser, CIP, pipe system |
| Vodka distiller | 50-5000L | Still pot , onion head, column, dephlegmator, condenser, pipe system |
| Brandy distiller | 50-5000L | Still pot, onion head, dephlegmator, column, condenser ,CIP, pipe system |
| Rum distiller | 50-5000L | Still pot, column, condenser, CIP, pipe system |
| Gin distiller | 50-5000L | Still pot, column, gin basket, condenser, CIP, pipe system |
| Multi-spirits distiller | 200-5000L | Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank |
1. Material & Craftsmanship

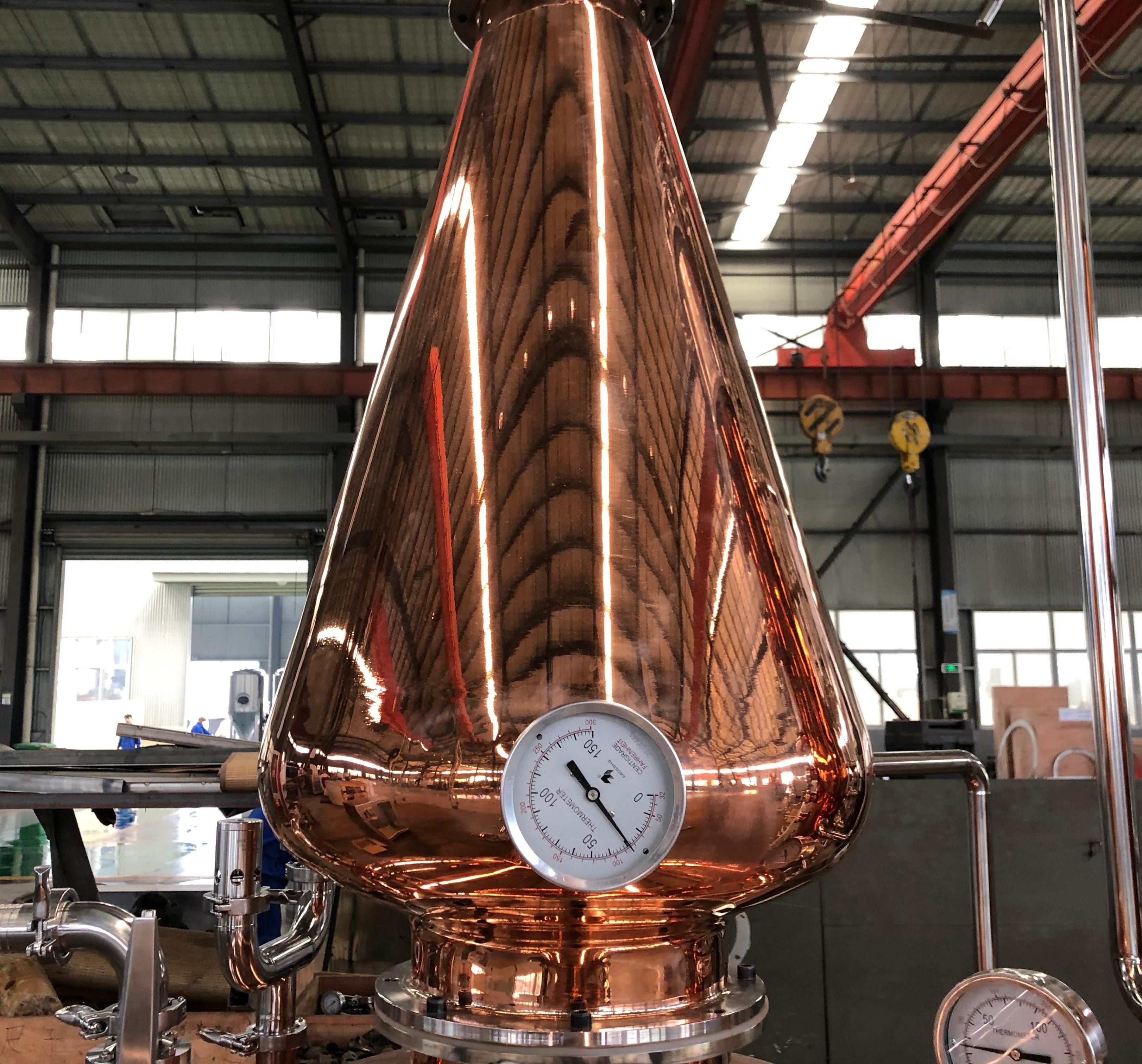

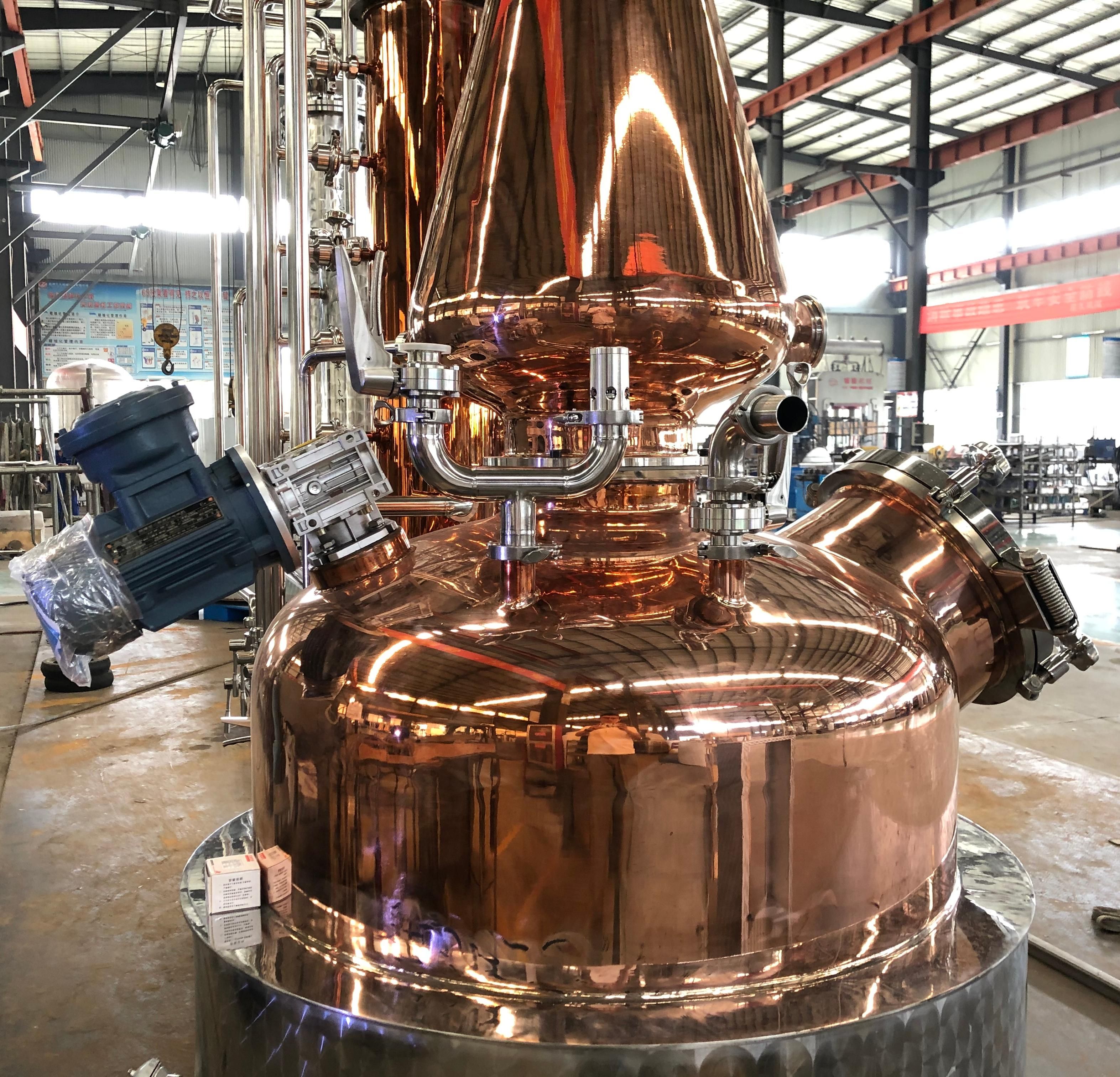

• Copper Pot Still & Helmet: Crafted from high‑purity red copper with mirror‑polished finish. Copper reacts with sulfur compounds during distillation to effectively eliminate sulfide off‑odors, improving spirit purity and clean taste.
• 304 Stainless Steel Main Body: Boiler jacket, frame, condenser, and dephlegmator constructed from food‑grade 304 stainless steel with hammered finish — corrosion‑resistant, easy‑to‑clean, and built for long‑term commercial service life.
• Hygienic Pipeline Connection: Quick‑clamp ferrule connections throughout the system allow tool‑free disassembly and assembly, with no dead corners during cleaning for full food‑grade hygiene compliance.
2. Functional Design

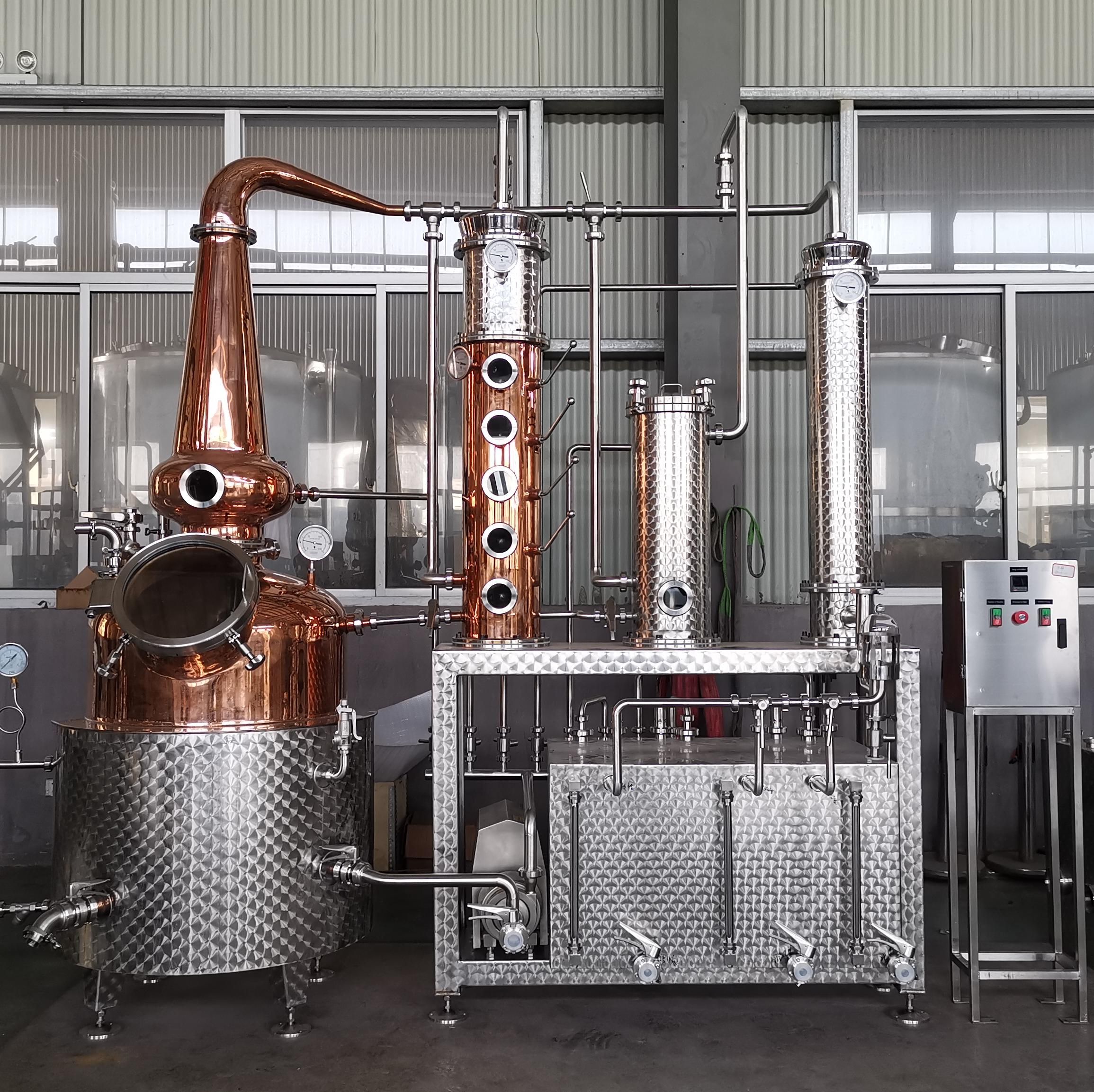

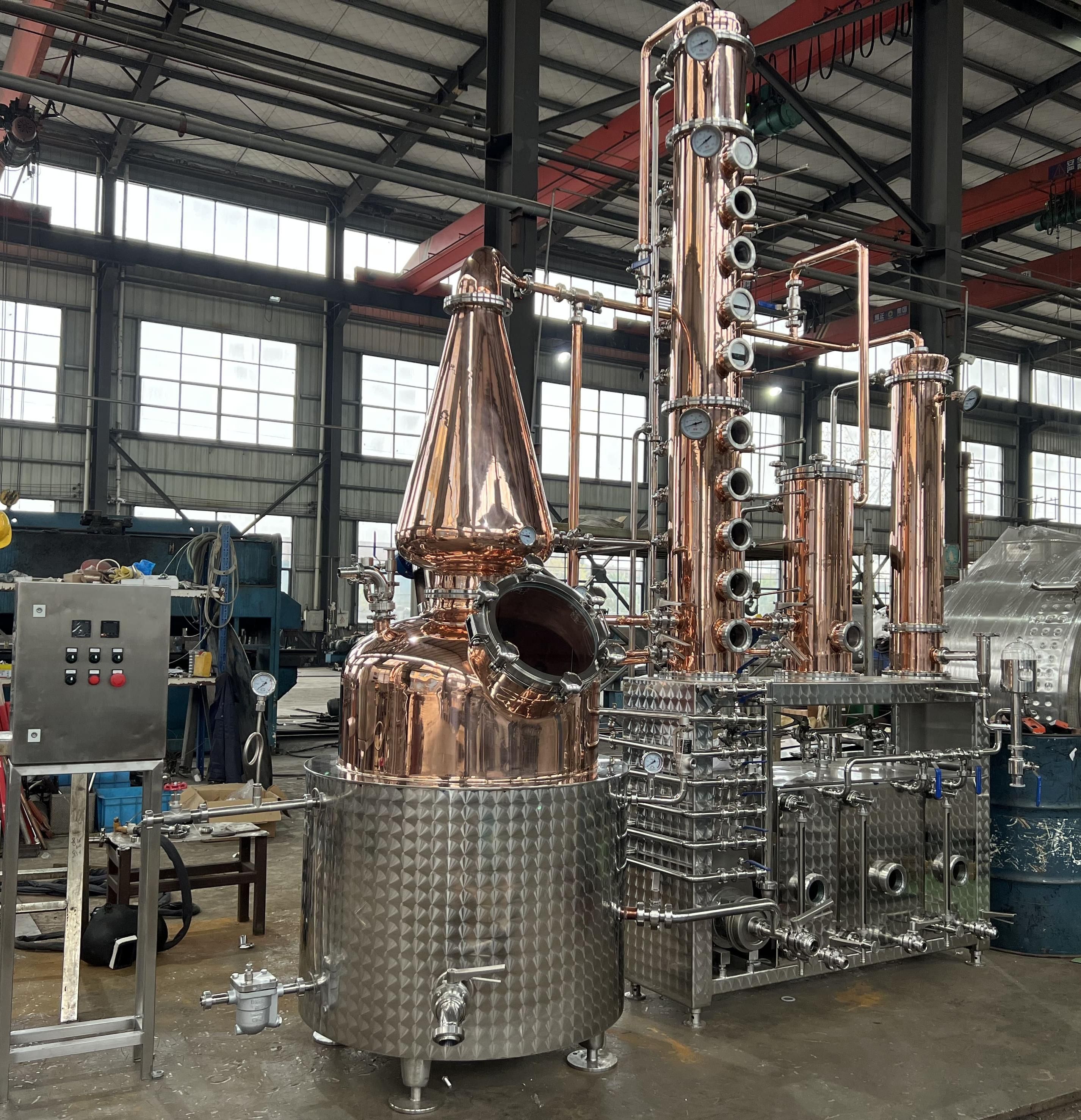

• 5‑Plate Copper Rectification Column: Equipped with 5 copper rectification plates, each featuring an observation window for real‑time distillation monitoring and precise fraction separation control.
• Dedicated Stainless Steel Dephlegmator: Hammered‑finish partial condenser with sight glass provides adjustable reflux ratio, allowing operators to fine‑tune spirit character from full pot‑still flavor to high‑purity neutral grade.
• Multi‑Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for commercial distilleries and craft operations.
• Large‑Diameter Boiler Viewport: Oversized circular sight glass installed on the pot still body, providing full visibility of the boiling action and cleaning verification without opening the system.
3. Temperature Control & Monitoring
• Multi‑Point Temperature Detection: Thermometers installed at the pot still, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.
• Pressure Indication System: Multiple industrial‑grade pressure gauges fitted at the boiler, helmet, and column to ensure safe operating conditions throughout each production run.
• Parrot / Spirit Safe Included: Glass‑body spirit safe allows real‑time proof reading and clean hearts collection without interrupting the distillation run.
4. Structural Advantages
• Integrated Bottom Collection Box: Built‑in hammered stainless steel cabinet with double doors beneath the column frame provides concealed storage for collection vessels, tools, and accessories — keeping the workspace tidy and organized.

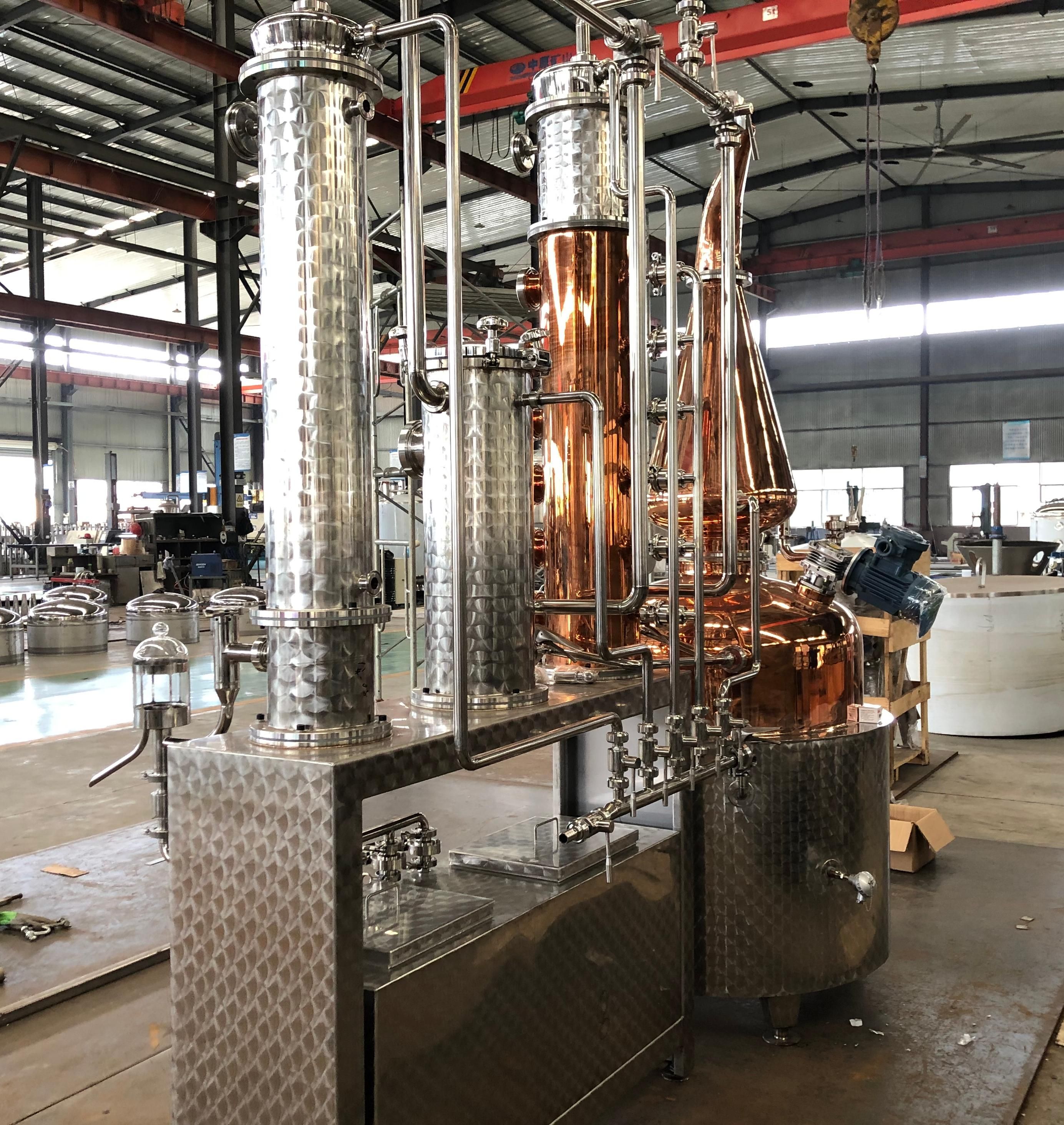

• Compact Skid‑Mounted Design: Rectification column, dephlegmator, condenser, and collection system all mounted on a single stainless steel frame — compact footprint and easy installation.
• Modular Column Construction: Each plate section can be independently disassembled via tri‑clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.
• Showroom‑Grade Aesthetics: The combination of mirror‑polished copper, hammered stainless steel, and integrated design creates a visually impressive centerpiece suitable for visitor‑facing distillery installations and tasting rooms.
What is the capacity of the 300L Multi-functional Distiller?
The 300L Multi-functional Distiller features a 250-liter boiler capacity. With the recommended 50-60% fill rate, you can process 125-150L of mash per batch, yielding approximately 25-35L of high-proof spirit per run. The included fermentation tank allows seamless integration of the complete production process.
Is the 300L Multi-functional Distiller suitable for commercial use?
Yes. The 300L Multi-functional Distiller is designed for medium to large-scale commercial distilleries. It offers professional-grade construction, complete fermentation and distillation capabilities, and premium copper components, making it ideal for craft spirit brands and established distilleries seeking a comprehensive production system.
What heating options are available for the 300L Multi-functional Distiller?
The 300L Multi-functional Distiller offers multiple heating options: - Electric heating (recommended): 36-48 kW with digital temperature control - Gas/diesel burner - Steam heating The integrated utility cabinet houses all heating controls and pumps for organized, professional operation.
Can I control the alcohol proof with the 300L Multi-functional Distiller?
Yes. The 300L Multi-functional Distiller allows you to produce spirits ranging from 40% ABV to 95% ABV. The multi-plate copper rectification column gives you precise control over the final proof, and the multiple sight glasses let you monitor the distillation process in real-time.
Can I customize the configuration of the 300L Multi-functional Distiller?
Yes. The 300L Multi-functional Distiller can be customized to meet your specific needs: - Column height and number of plates - Heating method (electric/gas/steam) - Voltage and frequency (110V/220V/380V, 50/60Hz) - Fermentation tank size and features - Additional columns for higher purity - Gin basket size and configuration - Additional safety features - Custom color and finish - PLC control system upgrade
