Professional-Grade Precision for High-Volume Spirits

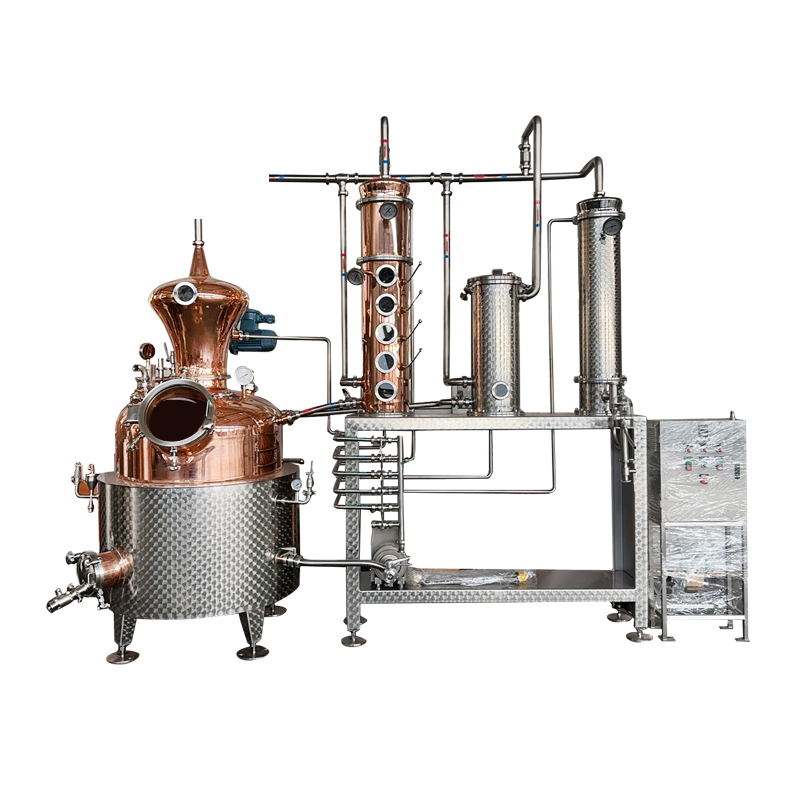

The 300L Commercial Spirit Distiller is a comprehensive, high-capacity unit engineered for the demanding needs of professional craft distilleries. Combining traditional copper pot still craftsmanship with advanced rectification technology, the 300L Commercial Spirit Distiller offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.

Premium Copper & Stainless Steel Construction

The 300L Commercial Spirit Distiller features a hybrid build that prioritizes both flavor profile and industrial hygiene. The boiler head, onion, and rectification columns are crafted from high-purity copper to facilitate natural catalysis, while the boiler is encased in a durable, textured stainless steel jacket. This ensures that the 300L Commercial Spirit Distiller effectively removes unwanted sulfur compounds while maintaining a sleek, professional appearance and food-grade durability.

Advanced Rectification & Visibility

At the heart of the 300L Commercial Spirit Distiller is a multi-plate rectification column equipped with high-visibility sight glasses. These allow the distiller to observe the liquid-vapor interaction at every stage in real-time. This visual feedback is critical for making the precise cuts required to produce world-class spirits using the 300L Commercial Spirit Distiller.

Integrated Control & Modular Design

The 300L Commercial Spirit Distiller is designed as a complete, modular workstation. It includes a dedicated electronic control panel for managing heating and system parameters with precision. The "multi-functional" design enables the unit to operate in both pot still and column still modes, making the 300L Commercial Spirit Distiller one of the most flexible units in its class for commercial-scale operations.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

300L Commercial Spirit Distiller— Product Advantages

1. Material & Craftsmanship

• Copper Pot Still & Helmet: Crafted from high-purity red copper with mirror-polished finish. Copper reacts with sulfur compounds during distillation to effectively eliminate sulfide off-odors, improving spirit purity and clean taste.

• 304 Stainless Steel Main Body: Boiler jacket, frame, condenser, and dephlegmator constructed from food-grade 304 stainless steel with hammered finish — corrosion-resistant, easy-to-clean, and built for long-term commercial service life.

• Hygienic Pipeline Connection: Quick-clamp ferrule connections throughout the system allow tool-free disassembly and assembly, with no dead corners during cleaning for full food-grade hygiene compliance.

2. Functional Design

• 5-Plate Copper Rectification Column: Equipped with 5 copper rectification plates, each featuring an observation window for real-time distillation monitoring and precise fraction separation control.

• Dedicated Stainless Steel Dephlegmator: Hammered-finish partial condenser provides adjustable reflux ratio, allowing operators to fine-tune spirit character from full pot-still flavor to high-purity neutral grade.

• Multi-Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for commercial distilleries and craft operations.

• Large-Diameter Boiler Viewport: Oversized circular sight glass installed on the pot still body, providing full visibility of the boiling action and cleaning verification without opening the system.

3. Temperature Control & Monitoring

• Multi-Point Temperature Detection: Thermometers installed at the pot still, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

• Pressure Indication System: Industrial-grade pressure gauge fitted at the boiler to ensure safe operating conditions throughout each production run.

• Standalone Control Panel: Dedicated electrical control cabinet with heating switches, indicator lights, and safety alarms for precise temperature adjustment and stable performance.

4. Structural Advantages

• Integrated Skid-Mounted Design: Rectification column, dephlegmator, condenser, and collection system all mounted on a single stainless steel open-frame structure — compact footprint, excellent visibility, and easy installation.

• Multi-Port Collection Manifold: Stainless steel header with multiple outlets enables simultaneous fraction collection for clean heads/hearts/tails separation without interrupting the distillation run.

• Built-In Circulation Pump: Integrated pump on the lower shelf enables efficient coolant circulation and mash transfer, eliminating the need for external equipment.

• Modular Column Construction: Each plate section can be independently disassembled via tri-clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.
