Professional-Grade Precision for High-Capacity Spirits

The 250L Multi-functional Distiller is a comprehensive, high-capacity unit engineered for the demanding needs of professional craft distilleries. Combining traditional copper pot still craftsmanship with advanced rectification technology, the 250L Multi-functional Distiller offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.

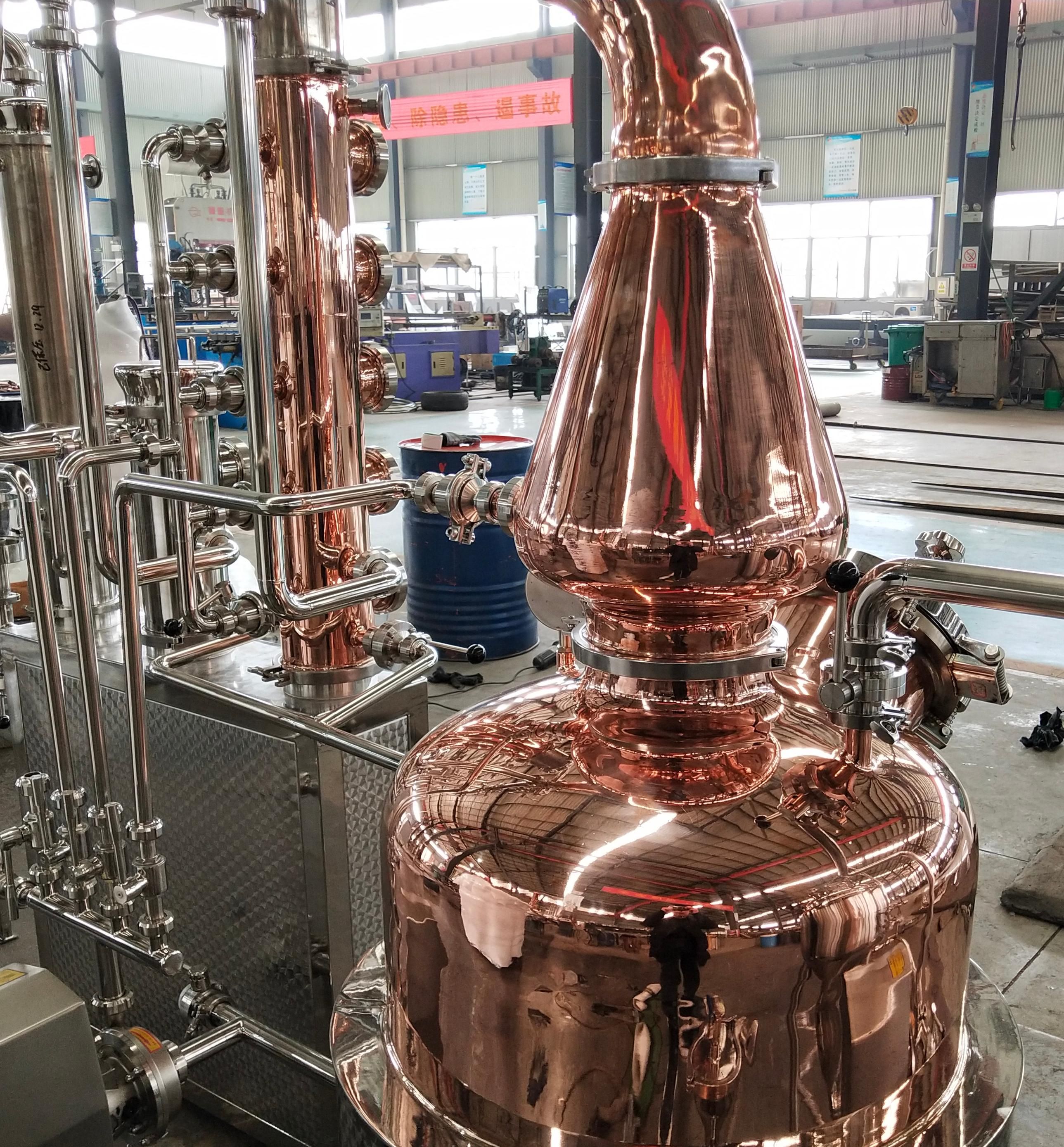

Premium Copper & Stainless Steel Construction

The 250L Multi-functional Distiller features a hybrid construction that maximizes both quality and durability. The boiler is encased in a durable, textured stainless steel jacket, while the boiler head, onion, and rectification columns are crafted from high-purity copper. This ensures that the 250L Multi-functional Distiller effectively removes unwanted sulfur compounds while maintaining a sleek, professional appearance and food-grade hygiene.

Advanced Rectification & Visibility

At the heart of the 250L Multi-functional Distiller is a multi-plate rectification column equipped with high-visibility sight glasses. These allow the distiller to observe the liquid-vapor interaction at every stage in real-time. This visual feedback is critical for making the precise cuts required to produce world-class spirits using the 250L Multi-functional Distiller.

Integrated Control & Efficiency

The 250L Multi-functional Distiller is designed as a complete, modular workstation. It includes a dedicated electronic control panel for managing heating and system parameters with precision. The "multi-functional" design enables the unit to operate in both pot still and column still modes, making the 250L Multi-functional Distiller one of the most flexible units in its class.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

250L Multi-Functional Distiller — Product Advantages

1. Material & Craftsmanship

• Copper Pot Still & Helmet: Crafted from high-purity red copper with mirror-polished finish. Copper reacts with sulfur compounds during distillation to effectively eliminate sulfide off-odors, improving spirit purity and clean taste profile.

• 304 Stainless Steel Main Body: Boiler jacket, frame, condenser, and cabinet constructed from food-grade 304 stainless steel with hammered finish — corrosion-resistant, easy-to-clean, and built for long-term commercial service life.

• Hygienic Pipeline Connection: Quick-clamp ferrule connections throughout the entire system allow tool-free disassembly and assembly, with no dead corners during cleaning for full food-grade hygiene compliance.

2. Functional Design

• Multi-Stage Rectification Column: Equipped with 5 copper rectification plates. Each layer features an observation window for real-time distillation monitoring and precise fraction separation control.

• Multi-Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for commercial distilleries.

• Visual Window Design: Large sight glasses fitted on both the copper helmet and every rectification plate for complete visibility of the entire distillation process from start to finish.

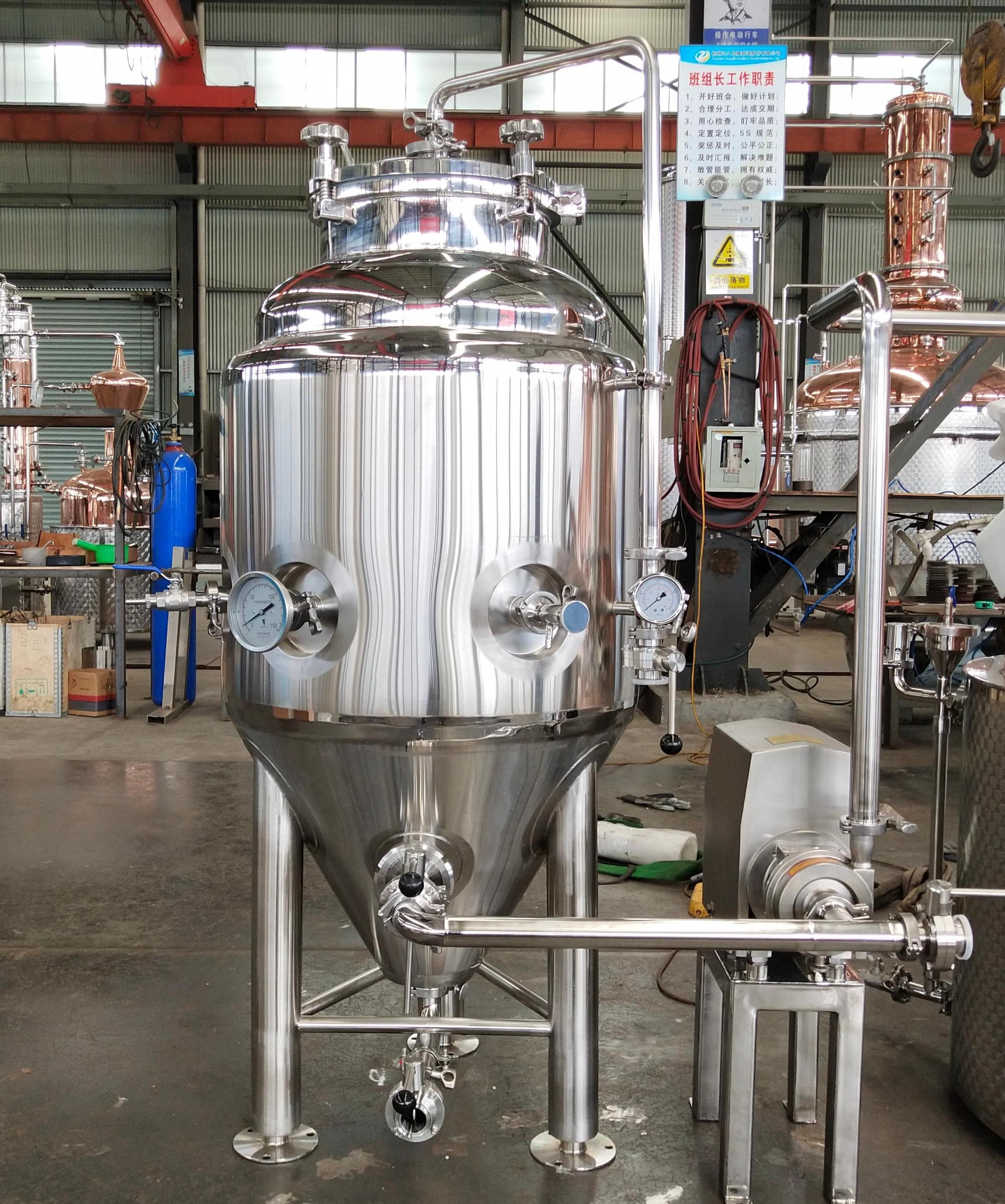

• Integrated Fermentation Tank Included: Complete production line with dedicated stainless steel conical fermentation vessel, enabling end-to-end mash-to-spirit workflow on a single installation.

3. Temperature Control & Monitoring

• Multi-Point Temperature Detection: Multiple thermometers monitor temperature of the boiler, each column section, and condenser in real time to guarantee distillation accuracy and batch consistency.

• Pressure Indication System: Industrial-grade pressure gauges installed at critical process points to ensure safe operating conditions throughout each production run.

• Electric Heating Control Panel: Dedicated standalone control cabinet with independent heating switches, indicator lights, and safety alarms for precise temperature adjustment and stable performance.

4. Structural Advantages

• Integrated Cabinet-Mounted Design: Rectification column, dephlegmator, condenser, and collection vessel all mounted on a single stainless steel cabinet with concealed piping — compact footprint and professional appearance.

• Modular Column Construction: Each plate section can be independently disassembled via tri-clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.

• Standalone Control Panel: Separate elevated control cabinet provides ergonomic operator access while keeping electrical systems isolated from the wet distillation area for enhanced safety.

• Parrot / Spirit Safe Included: Glass-body spirit safe allows real-time proof reading and clean hearts collection without interrupting the distillation run.
