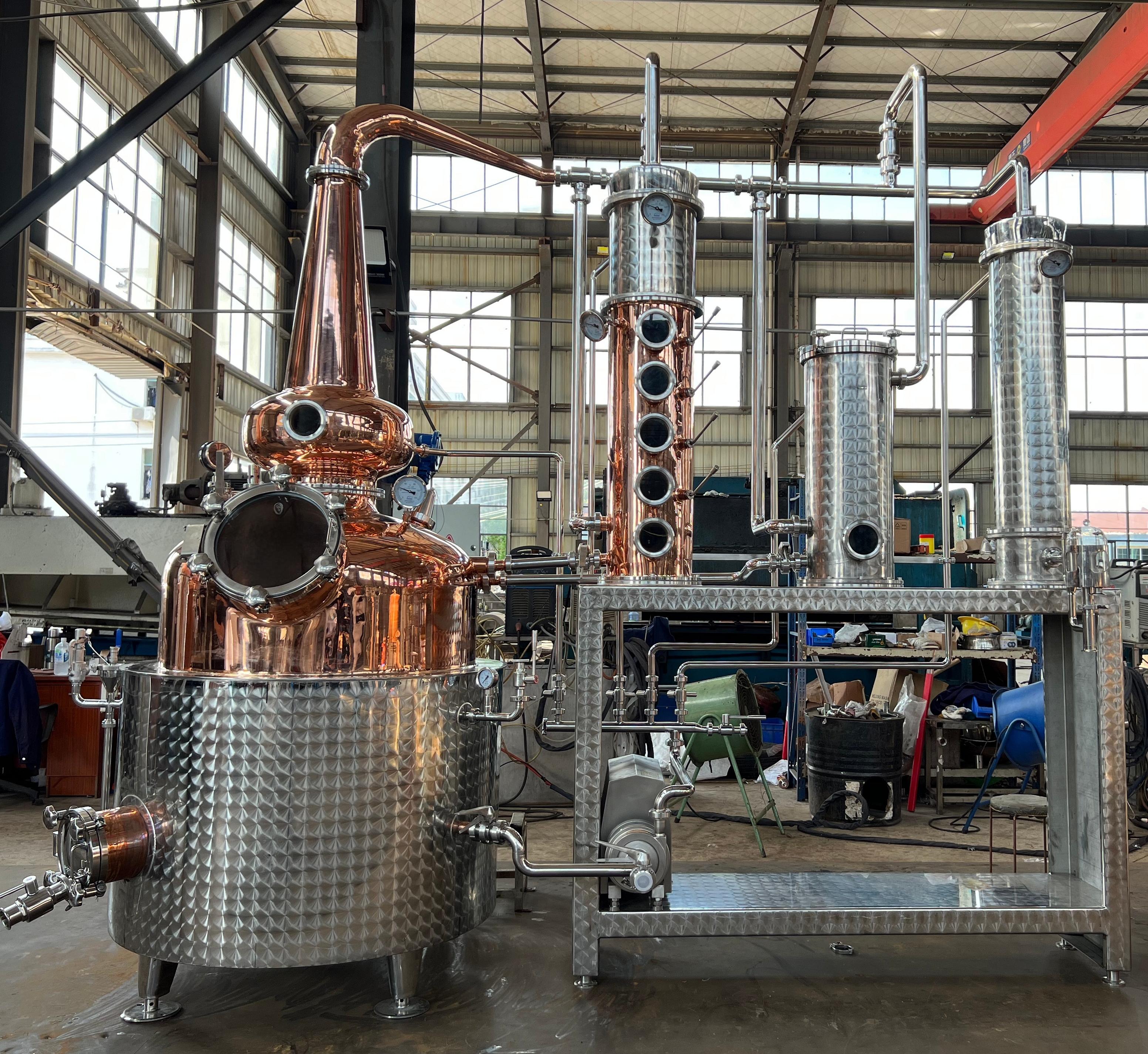

500L Commercial Spirit Distiller

Professional-Grade Precision for High-Volume Spirits

The 500L Multi-functional Distiller is a comprehensive, high-capacity unit engineered for the demanding needs of professional craft distilleries. Combining traditional copper pot still craftsmanship with advanced rectification technology, the 500L Multi-functional Distiller offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.

Premium Copper & Stainless Steel Construction

The 500L Multi-functional Distiller features a hybrid build that maximizes both flavor profile and industrial durability. The main boiler is encased in a polished stainless steel jacket with a high-capacity copper head and traditional swan neck. This ensures that the 500L Multi-functional Distiller effectively removes unwanted sulfur compounds while maintaining the structural integrity required for commercial-scale operations.

Advanced Multi-Plate Rectification

The standout feature of the 500L Multi-functional Distiller is its tall rectification column, equipped with multiple theoretical plates. Each plate is fitted with a dedicated sight glass, allowing the distiller to monitor liquid-vapor interaction in real-time. This high-efficiency design allows the 500L Multi-functional Distiller to achieve maximum purity with fewer distillation runs.

Integrated Modular Design

The 500L Multi-functional Distiller is designed as a complete, integrated workstation. It includes a heavy-duty stainless steel frame that houses the collection vessels, pumps, and auxiliary filtration columns. This "all-in-one" approach, combined with integrated gauge panels, makes the 500L Multi-functional Distiller easy to install and operate in a professional distillery environment.

500L Multi-functional Distiller— Product Advantages

1. Material & Craftsmanship

          • Copper Pot Still & Multi‑Stage Helmet: Crafted from high‑purity red copper with mirror‑polished finish. The distinctive multi‑stage helmet design provides extended copper contact for superior sulfur removal and spirit smoothness.

          • 304 Stainless Steel Boiler & Frame: Hammered‑finish stainless steel boiler jacket, dephlegmator, condenser, and structural frame — corrosion‑resistant, easy‑to‑clean, and built for long‑term commercial service life.

          • Hygienic Pipeline Connection: Quick‑clamp ferrule connections throughout the system allow tool‑free disassembly and assembly, with no dead corners during cleaning for full food‑grade hygiene compliance.

2. Functional Design

          • 500L High‑Capacity Pot Still: Generous boiler volume enables efficient large‑batch production for commercial distilleries, significantly improving throughput and reducing labor costs per liter of finished spirit.

          • 6‑Plate Copper Rectification Column: Equipped with 6 copper rectification plates, each featuring an observation window for real‑time distillation monitoring and precise fraction separation control — ideal for producing high‑proof neutral spirits.

          • Dedicated Stainless Steel Dephlegmator: Hammered‑finish partial condenser with sight glass provides adjustable reflux ratio, allowing operators to fine‑tune spirit character from full pot‑still flavor to vodka‑grade neutrality.

          • Multi‑Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for large‑scale commercial distilleries.

3. Temperature Control & Monitoring

          • Multi‑Point Temperature Detection: Thermometers installed at the pot still, helmet, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

          • Pressure Indication System: Multiple industrial‑grade pressure gauges fitted at the boiler, helmet, and column sections to ensure safe operating conditions throughout each production run.

          • Safety Valve: Pressure relief valve installed on the boiler to prevent over‑pressure conditions, ensuring operator and equipment safety.

4. Structural Advantages

          • Open‑Frame Skid Design: Rectification column, dephlegmator, and condenser mounted on a heavy‑duty stainless steel open‑frame structure — excellent visibility, ventilation, and easy access for maintenance.

          • Built‑In Circulation Pump: Integrated pump on the lower shelf enables efficient coolant circulation and product transfer, eliminating the need for external equipment.

          • Adjustable Leveling Feet: Both the pot still and support frame feature adjustable stainless steel feet for precise leveling on uneven factory floors.

          • Modular Column Construction: Each plate section can be independently disassembled via tri‑clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.
