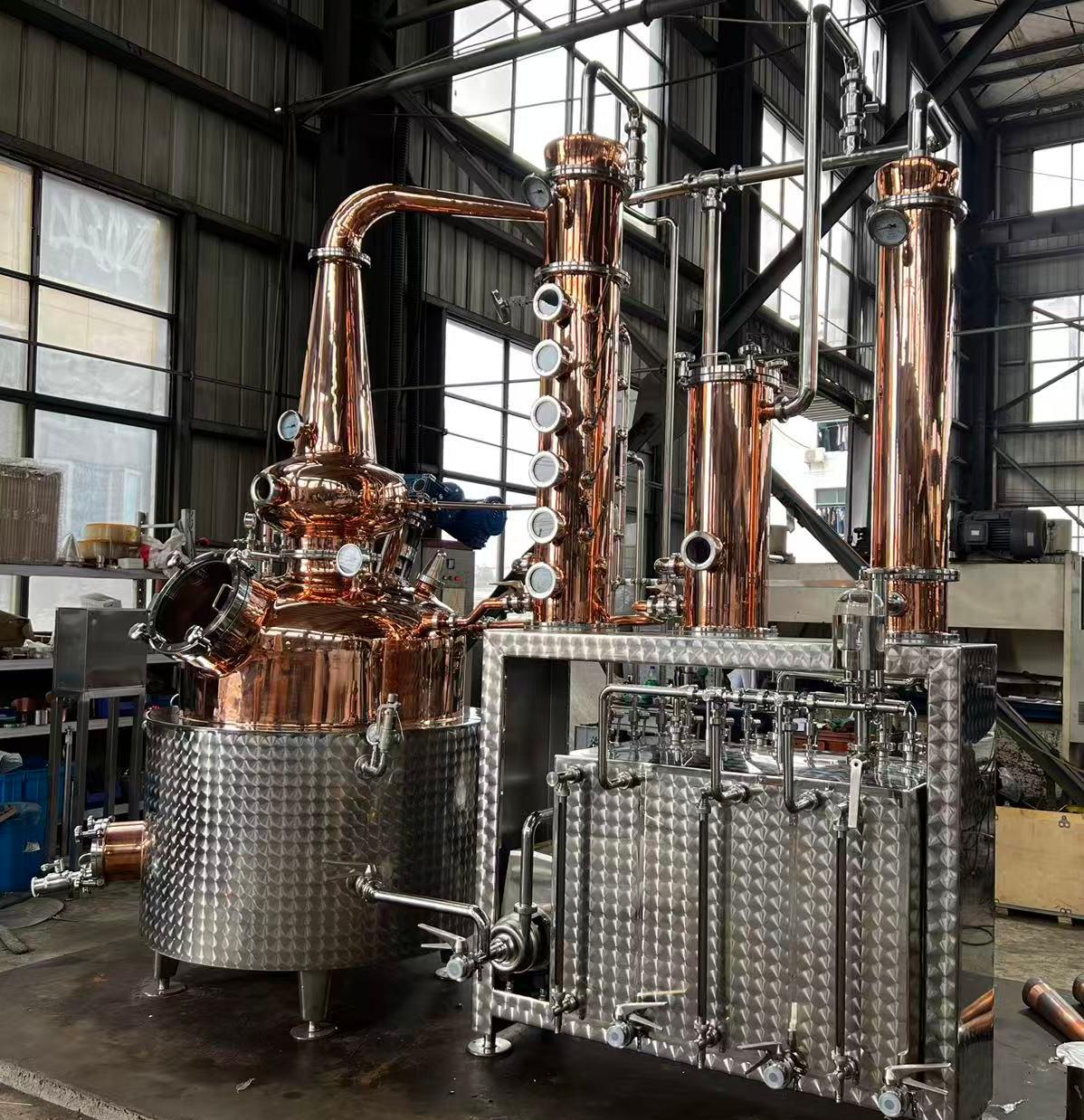

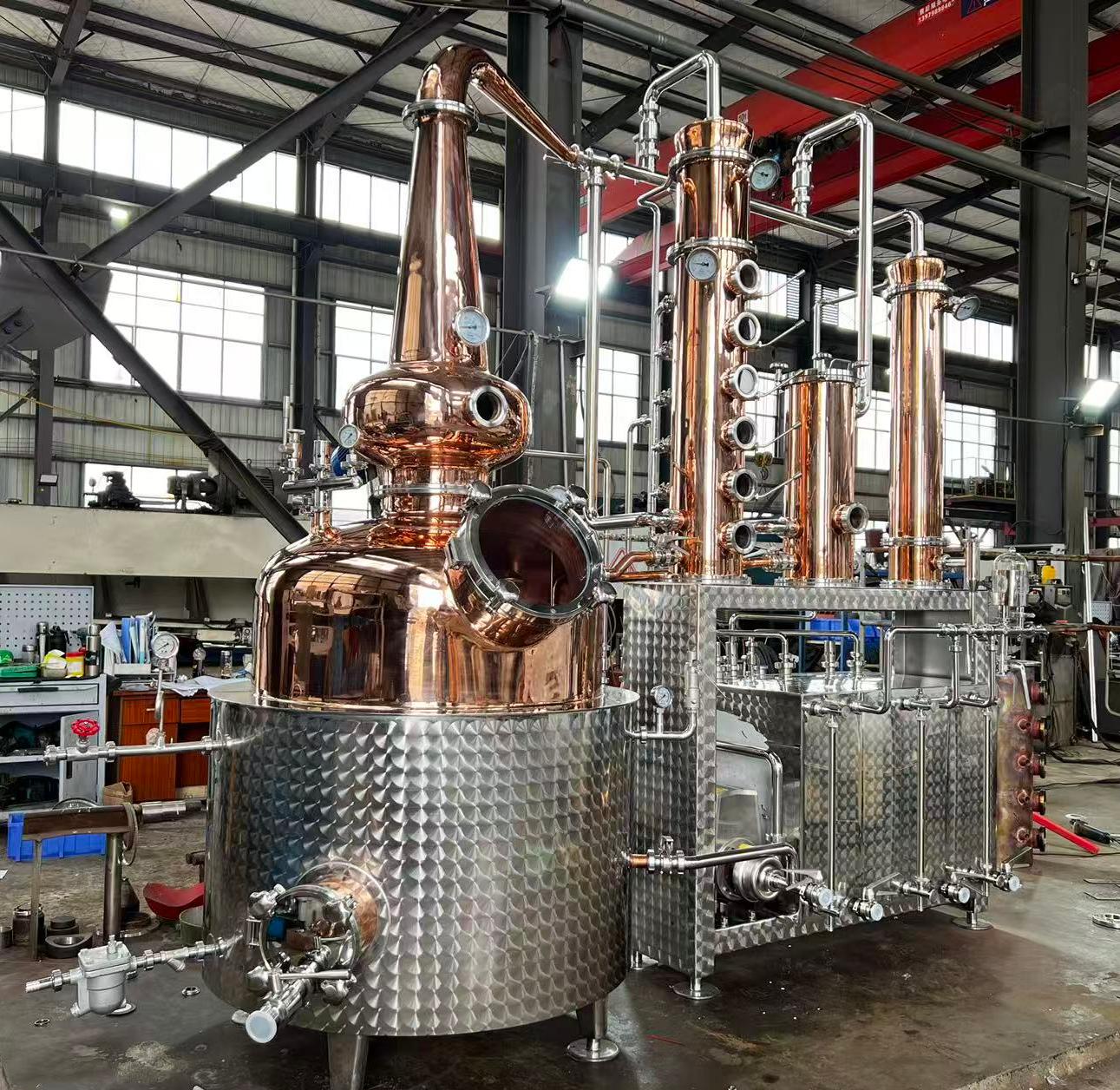

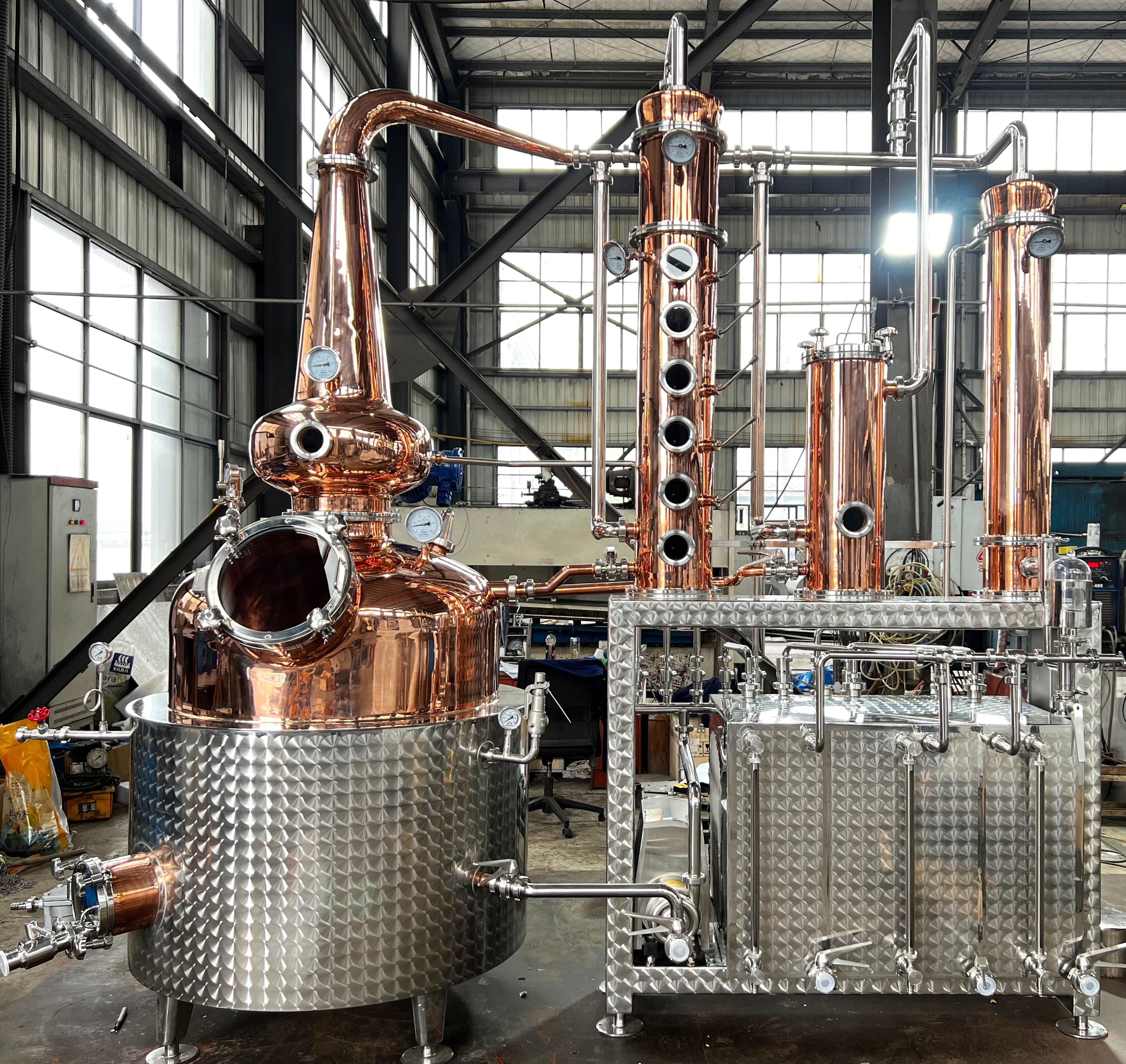

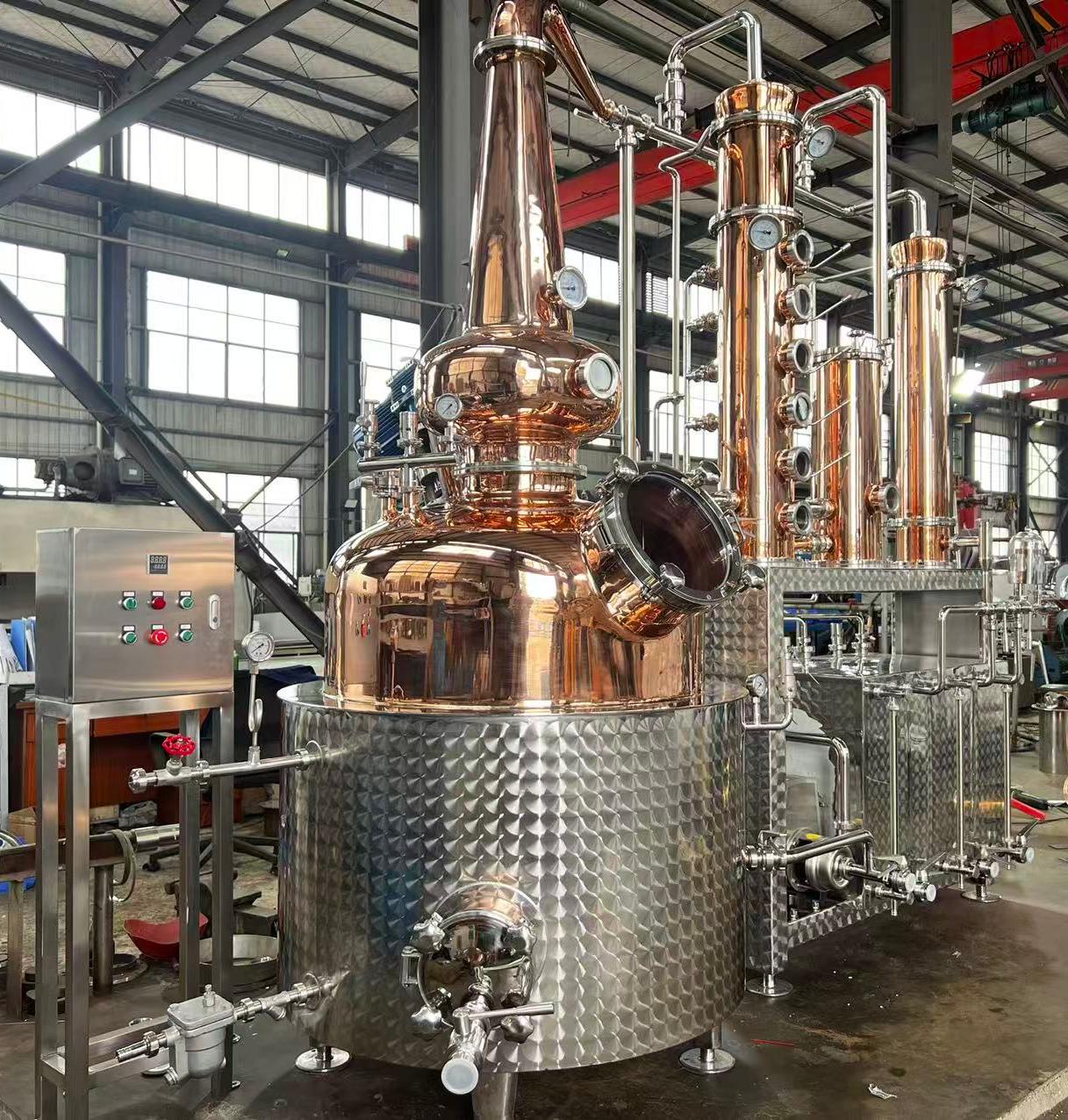

Premium Copper & Stainless Steel Construction

The 500L Multi-functional Distiller features a hybrid build that maximizes both flavor profile and industrial durability. The main boiler is encased in a polished stainless steel jacket with a high-capacity copper head and traditional swan neck. This ensures that the 500L Multi-functional Distiller effectively removes unwanted sulfur compounds while maintaining the structural integrity required for commercial-scale operations.

Advanced Multi-Plate Rectification

The standout feature of the 500L Multi-functional Distiller is its tall rectification column, equipped with multiple theoretical plates. Each plate is fitted with a dedicated sight glass, allowing the distiller to monitor liquid-vapor interaction in real-time. This high-efficiency design allows the 500L Multi-functional Distiller to achieve maximum purity with fewer distillation runs.

Integrated Modular Design

The 500L Multi-functional Distiller is designed as a complete, integrated workstation. It includes a heavy-duty stainless steel frame that houses the collection vessels, pumps, and auxiliary filtration columns. This "all-in-one" approach, combined with integrated gauge panels, makes the 500L Multi-functional Distiller easy to install and operate in a professional distillery environment.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

500L Multi-functional Distiller— Product Advantages

1. Material & Craftsmanship

          • All‑Copper Vapor Contact Pathway: Pot still, multi‑stage helmet, rectification column, dephlegmator, and product condenser all crafted from high‑purity red copper with mirror‑polished finish — maximizing copper contact throughout the entire vapor path for superior sulfur removal and spirit purity.

          • 304 Stainless Steel Base & Frame: Boiler jacket, integrated collection vessels, and structural frame constructed from food‑grade 304 stainless steel with hammered finish — corrosion‑resistant, easy‑to‑clean, and built for long‑term commercial service life.

          • Hygienic Pipeline Connection: Quick‑clamp ferrule connections throughout the system allow tool‑free disassembly and assembly, with no dead corners during cleaning for full food‑grade hygiene compliance.

2. Functional Design

          • 500L High‑Capacity Pot Still: Generous boiler volume enables efficient large‑batch production for commercial distilleries, significantly improving throughput and reducing labor costs per liter of finished spirit.

          • Multi‑Stage Copper Helmet Design: Distinctive bulbous‑then‑conical helmet shape provides extended copper contact and natural reflux action, enhancing spirit smoothness and character during pot‑still distillation.

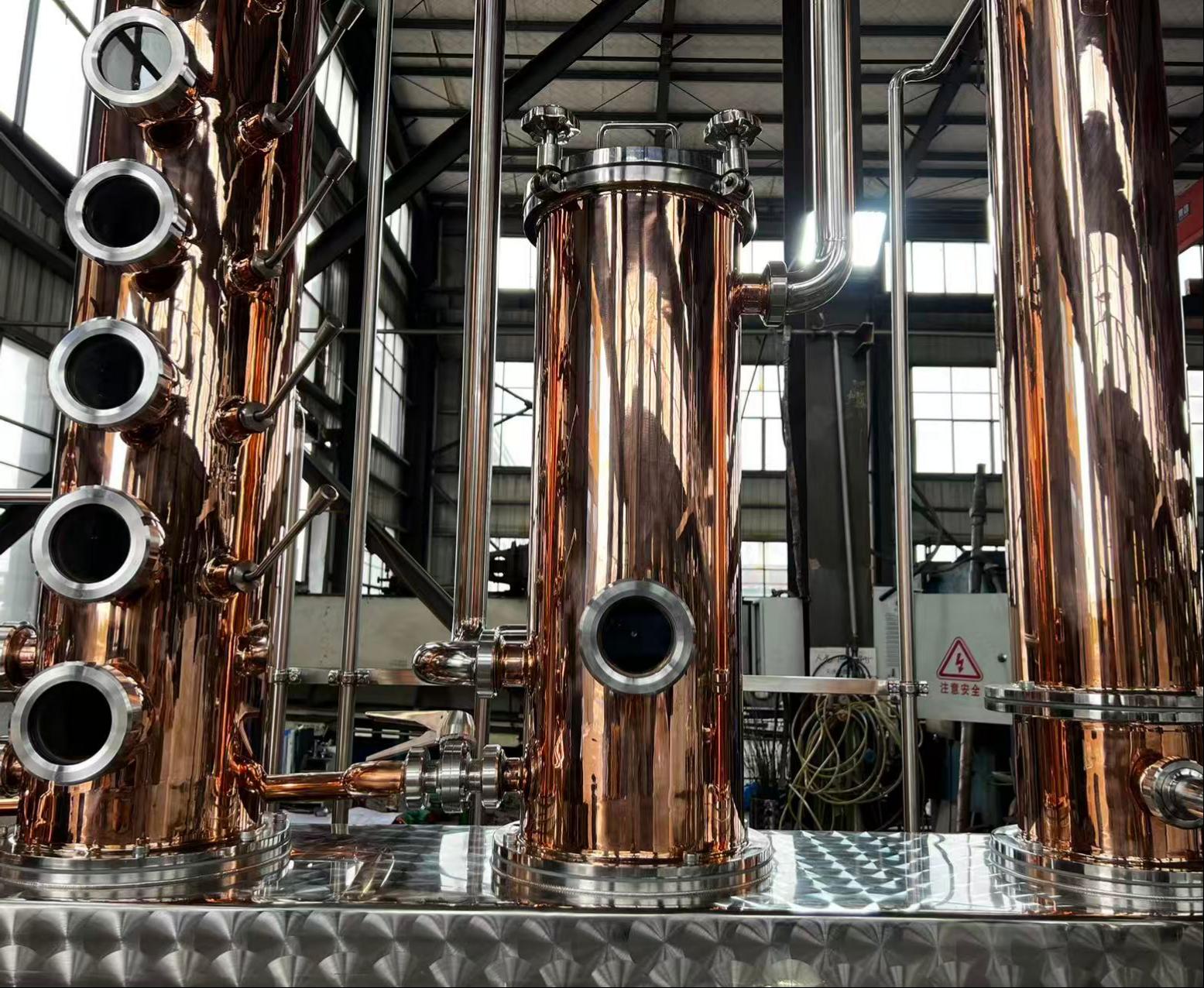

          • 5‑Plate Copper Rectification Column: Equipped with 5 copper rectification plates, each featuring an observation window for real‑time distillation monitoring and precise fraction separation control.

          • Dedicated Copper Dephlegmator: Full copper partial condenser provides adjustable reflux ratio, allowing operators to fine‑tune spirit character from full pot‑still flavor to high‑purity neutral grade.

          • Multi‑Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for large‑scale commercial distilleries.

3. Temperature Control & Monitoring

          • Multi‑Point Temperature Detection: Thermometers installed at the pot still, helmet, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

          • Pressure Indication System: Multiple industrial‑grade pressure gauges fitted at the boiler, helmet, and column to ensure safe operating conditions throughout each production run.

          • Safety Valve: Pressure relief valve installed on the boiler to prevent over‑pressure conditions, ensuring operator and equipment safety.

4. Structural Advantages

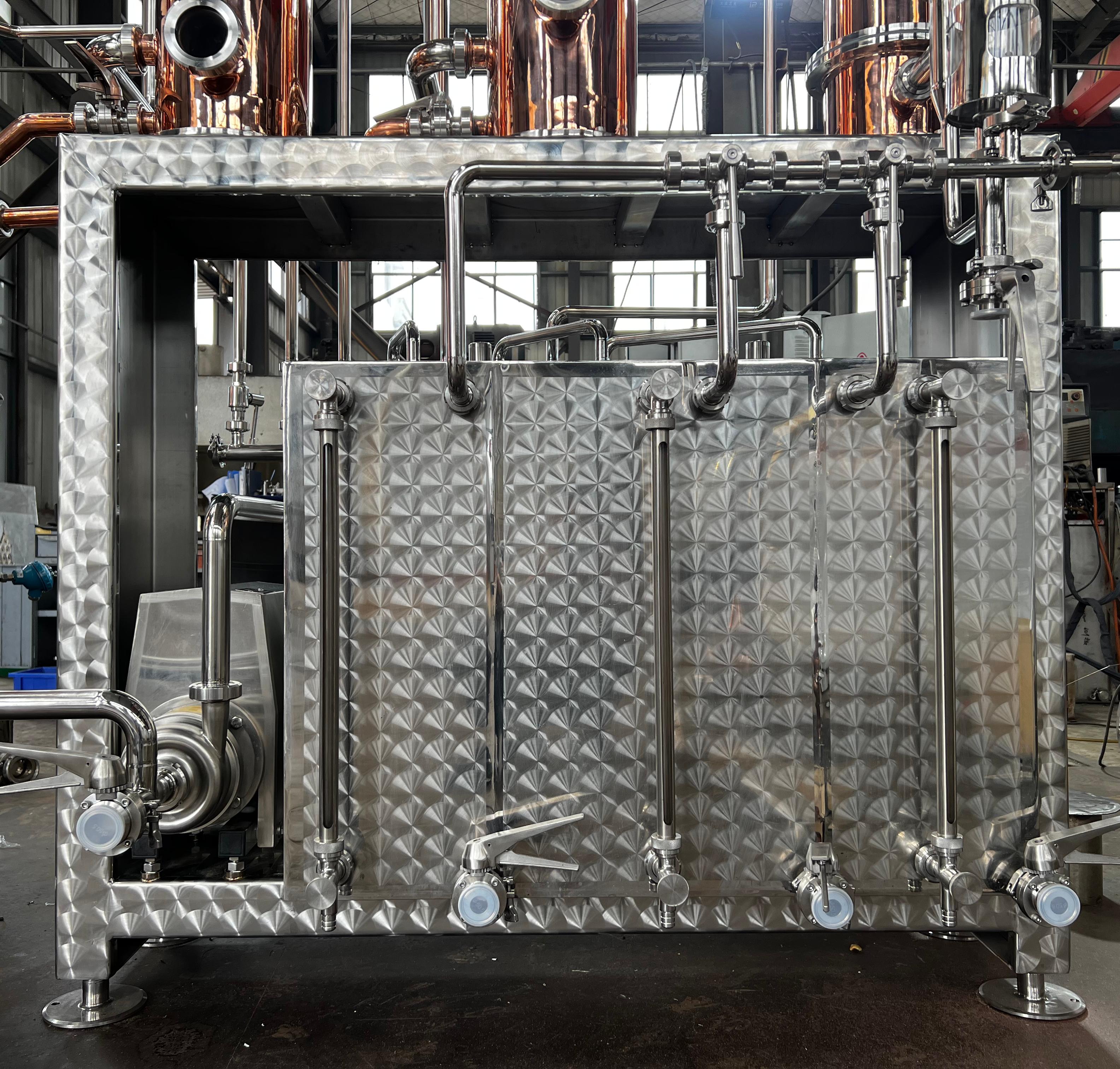

          • Integrated Collection Base: Built‑in hammered stainless steel cabinet houses collection vessels with individual discharge valves, enabling clean simultaneous heads/hearts/tails separation without interrupting the distillation run.

          • Built‑In Circulation Pump: Integrated pump enables efficient coolant circulation and product transfer, eliminating the need for external equipment.

          • Modular Column Construction: Each plate section can be independently disassembled via tri‑clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.

          • Heavy‑Duty Support Legs: Sturdy stainless steel legs provide stable, elevated mounting for the large‑capacity pot still, allowing easy floor cleaning and drainage beneath the unit.
