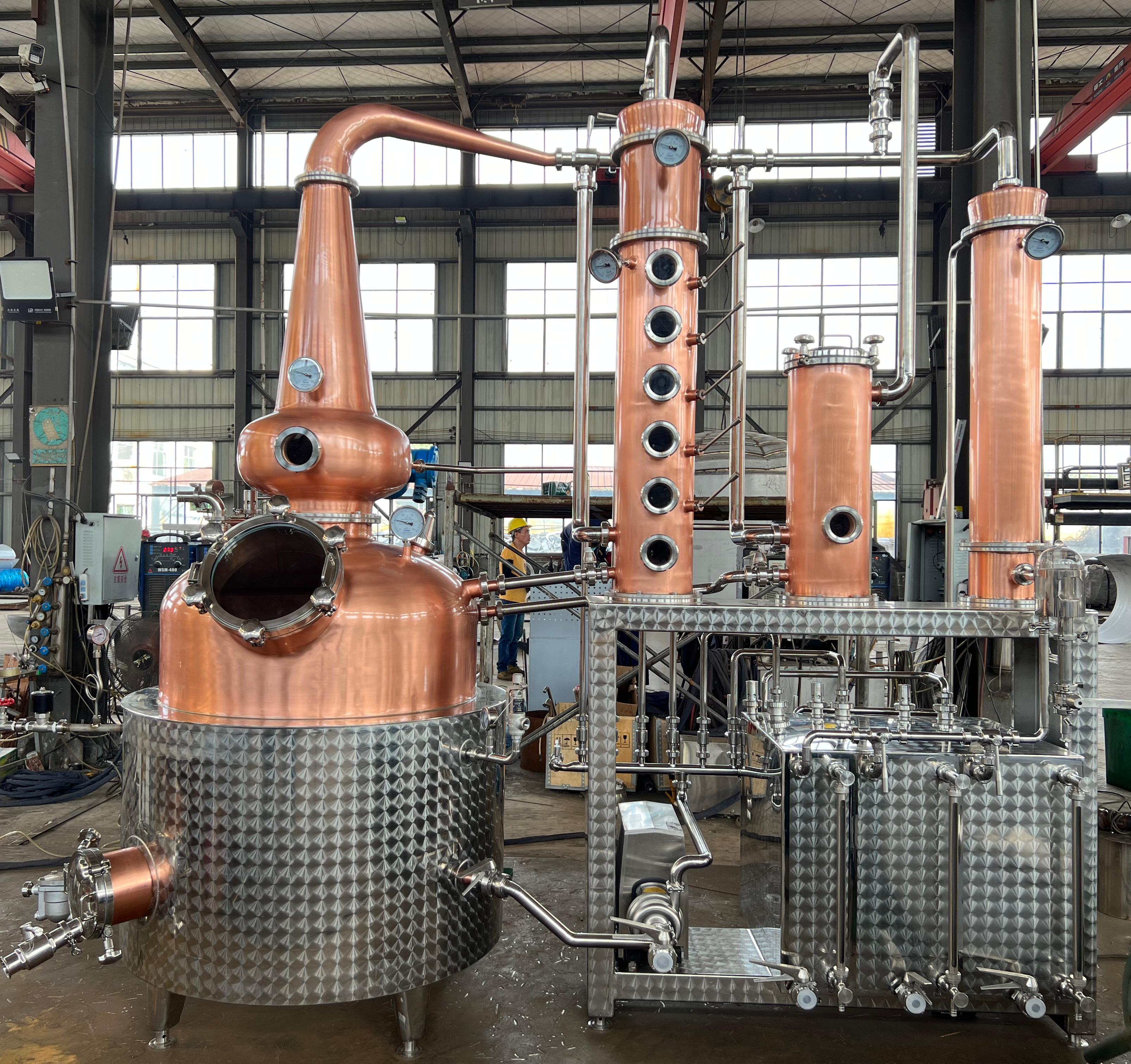

500L All-Copper Multi-Functional Distiller

The Pinnacle of High-Capacity, Pure-Flavor Distillation

The 500L All-Copper Multi-Functional Distiller is a comprehensive, high-capacity unit engineered for the demanding needs of professional craft distilleries. Combining traditional copper pot still aesthetics with advanced rectification technology, the 500L All-Copper Multi-Functional Distiller offers the versatility to produce everything from complex, heavy-bodied whiskies to high-proof neutral spirits.

Premium All-Copper Construction

The standout feature of the 500L All-Copper Multi-Functional Distiller is its extensive use of high-purity copper for all vapor-contact components. From the massive boiler head and onion to the rectification columns and condensers, the 500L All-Copper Multi-Functional Distiller utilizes copper's natural catalytic properties to remove unwanted sulfur compounds, ensuring a smooth, clean spirit profile. The boiler is encased in a durable, textured stainless steel jacket for industrial hygiene.

Advanced Rectification & Visibility

At the heart of the 500L All-Copper Multi-Functional Distiller is a multi-plate rectification column equipped with high-visibility sight glasses. These allow the distiller to observe the liquid-vapor interaction at every stage in real-time. This visual feedback is critical for making the precise cuts required to produce world-class spirits using the 500L All-Copper Multi-Functional Distiller.

Integrated Modular Design

The 500L All-Copper Multi-Functional Distiller is designed as a complete, integrated workstation. It includes a heavy-duty stainless steel frame that houses the collection vessels and a dedicated pump for efficient liquid management. The "multi-functional" design enables the unit to operate in both pot still and column still modes, making the 500L All-Copper Multi-Functional Distiller one of the most flexible and premium units in its class.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

500L All-Copper Multi-Functional Distiller— Product Advantages

1. Material & Craftsmanship

• 100% Copper Vapor Contact Pathway: Pot still, multi‑stage helmet, lyne arm, rectification column, dephlegmator, and product condenser — every component that contacts vapor is crafted from high‑purity red copper with mirror‑polished finish, maximizing sulfur removal and delivering the purest, smoothest spirit possible.

• 304 Stainless Steel Base & Frame: Boiler jacket, integrated collection vessels, and structural frame constructed from food‑grade 304 stainless steel with hammered finish — providing corrosion resistance, durability, and a striking visual contrast to the copper components.

• Hygienic Pipeline Connection: Quick‑clamp ferrule connections throughout the system allow tool‑free disassembly and assembly, with no dead corners during cleaning for full food‑grade hygiene compliance.

2. Functional Design

• 500L High‑Capacity Pot Still: Generous boiler volume enables efficient large‑batch production for commercial distilleries, significantly improving throughput and reducing labor costs per liter of finished spirit.

• 6‑Plate Copper Rectification Column: Equipped with 6 copper rectification plates, each featuring an observation window for real‑time distillation monitoring and precise fraction separation control — ideal for producing high‑proof neutral spirits with exceptional purity.

• Full Copper Dephlegmator: Copper partial condenser provides adjustable reflux ratio, allowing operators to fine‑tune spirit character from full pot‑still flavor to vodka‑grade neutrality — with maximum copper contact throughout.

• Multi‑Purpose Switching: Suitable for distilling Baijiu, Whisky, Brandy, Rum, Gin, Vodka, and other spirits. One unit meets diverse production requirements for large‑scale commercial distilleries.

3. Temperature Control & Monitoring

• Multi‑Point Temperature Detection: Thermometers installed at the pot still, helmet, column plates, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

• Pressure Indication System: Multiple industrial‑grade pressure gauges fitted at the boiler, helmet, and column sections to ensure safe operating conditions throughout each production run.

• Safety Valve: Pressure relief valve installed on the boiler to prevent over‑pressure conditions, ensuring operator and equipment safety.

4. Structural Advantages

• Integrated Multi‑Vessel Collection Base: Built‑in hammered stainless steel cabinet houses multiple collection vessels with individual sight glasses and discharge valves, enabling clean simultaneous heads/hearts/tails separation without interrupting the distillation run.

• Open‑Frame Skid Design: Rectification column, dephlegmator, and condenser mounted on a heavy‑duty stainless steel open‑frame structure — excellent visibility, ventilation, and easy access for maintenance.

• Built‑In Circulation Pump: Integrated pump enables efficient coolant circulation and product transfer, eliminating the need for external equipment.

• Modular Column Construction: Each plate section can be independently disassembled via tri‑clamp connections for maintenance, facilitating thorough cleaning and routine upkeep between different product runs.

5. Premium Advantage

• Authentic Copper Tradition: The all‑copper vapor pathway represents the gold standard in spirit distillation — the same construction trusted by the world's finest distilleries for centuries, delivering unmatched flavor development and spirit quality.
