300L Hybrid Pot Column Whiskey Distiller

A modular masterpiece for the serious craft distiller.

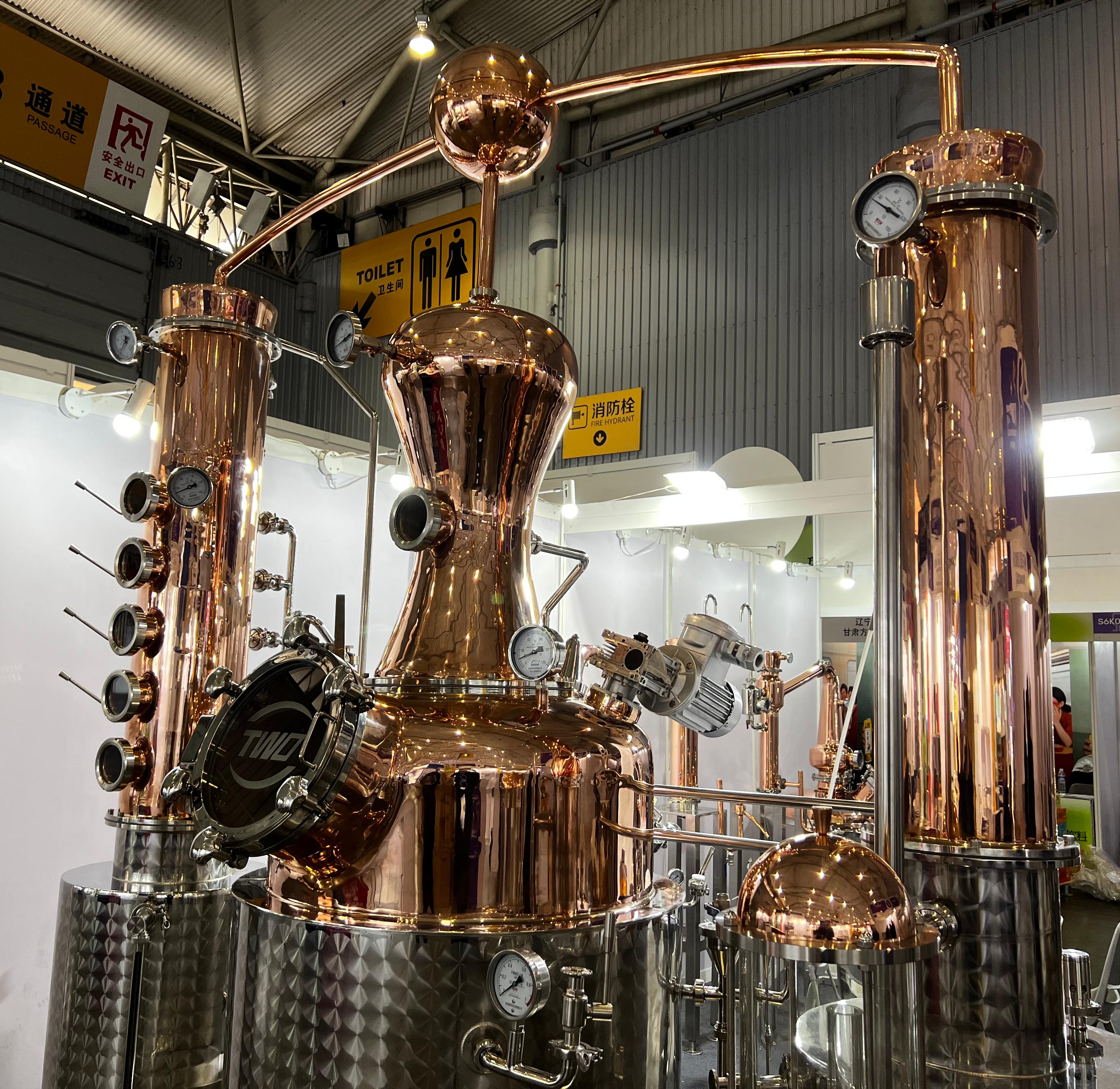

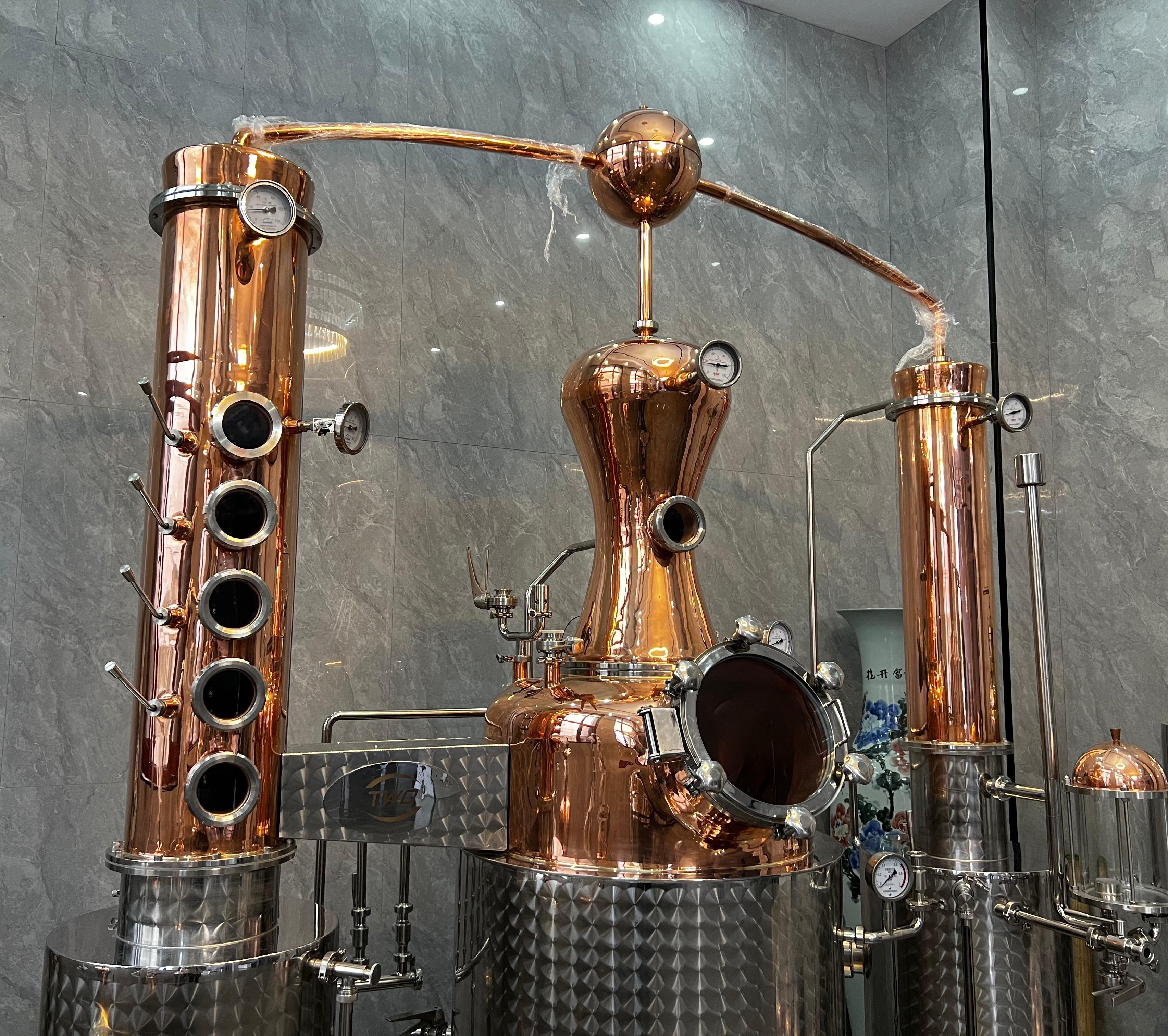

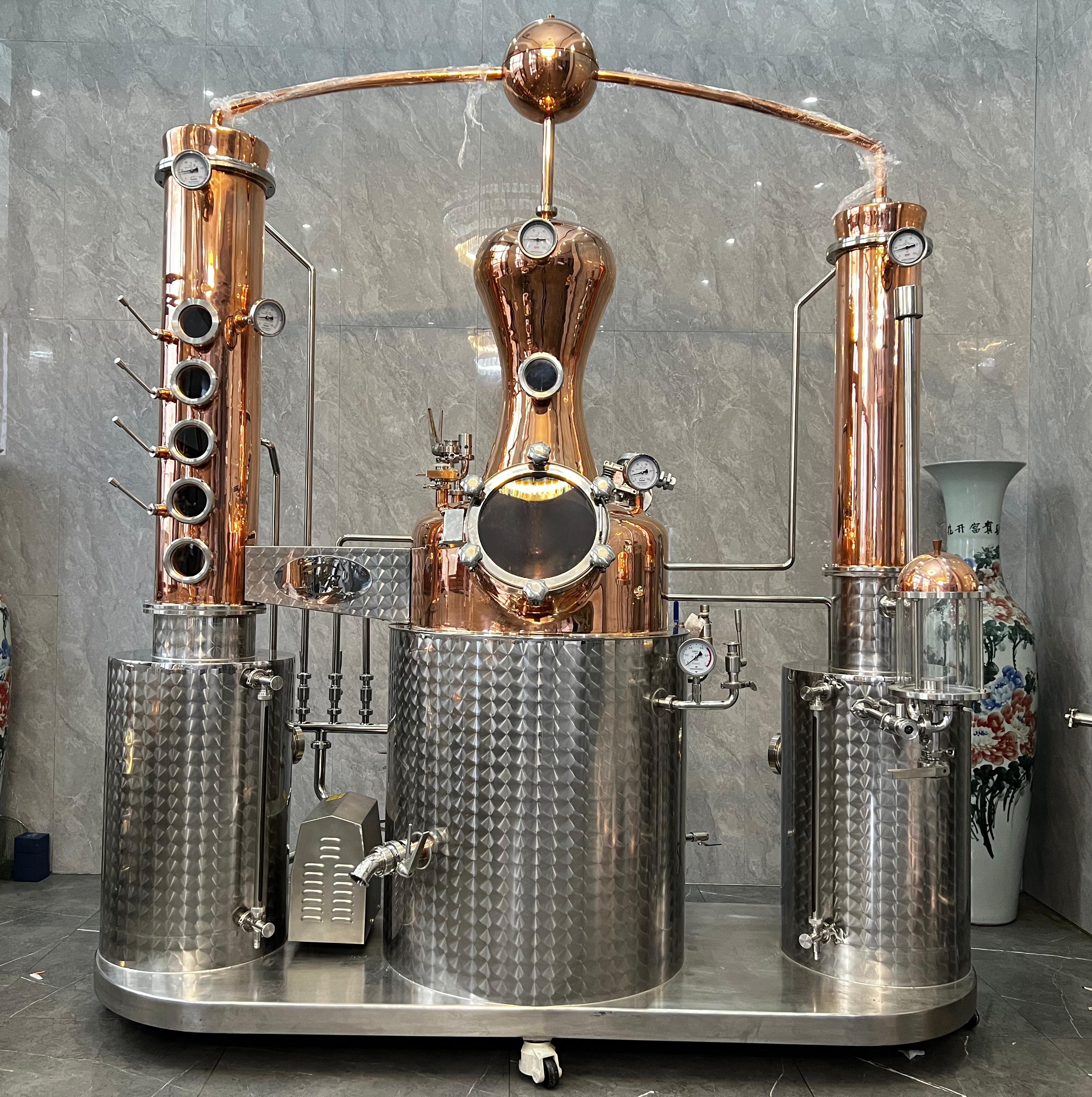

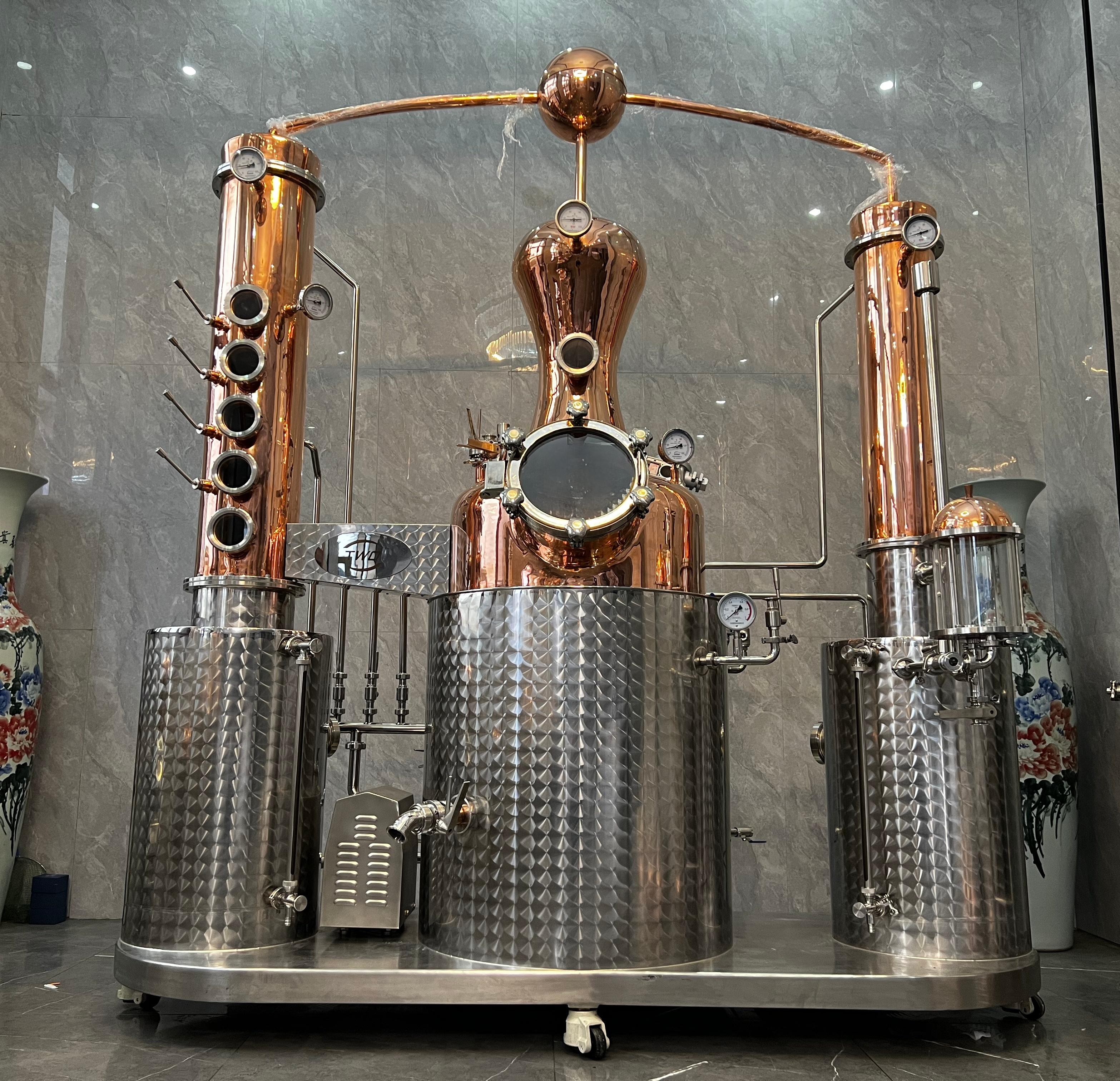

This 300L Hybrid Pot and Column Still is a highly sophisticated, all-in-one distillery system designed to be the centerpiece of a premium craft production line. Featuring a unique modular "three-pillar" design, it elegantly splits the distillation process across an independent copper boiler, an adjustable copper rectification column, and a separate condenser, all unified by a precision stainless steel vapor manifold system. It stands as the ultimate solution for distillers who demand the utmost versatility without compromising on either rich flavor or high purity.

Flexible process pathways for ultimate spirit control.
What truly sets this system apart is its dynamic vapor routing capability. The bypass valves installed on all connections allow you to control which section of the still your spirit vapors travel through . This gives you complete control to achieve different desired distillation characteristics through different process paths . It can be run as a traditional pot still (retaining the original flavor of raw materials, perfect for whiskey and brandy) or switched to column mode to improve alcohol purity (ideal for gin or vodka production) . The multi-plate copper column features sight glasses for monitoring the internal reflux in real-time, ensuring precise cuts.

Premium craftmanship: The best of copper and steel.
The system combines the flavor-enhancing properties of high-purity copper with the durability of 304 stainless steel. The boiler features a pure TP2 copper onion-shaped dome and neck, which naturally removes unwanted sulfur compounds and enhances aroma to create a smoother, richer spirit . The rectification column is also crafted from premium copper with bubble cap trays to achieve superior separation, while the external shells and condenser are constructed from heavy-duty food-grade SUS304 stainless steel for easy cleaning and maximum longevity .

Integrated CIP, gauges, and heavy-duty mobility.
This 300L still is engineered for effortless daily operation. It is equipped with a built-in CIP cleaning ball for automated sanitation . The front and side columns are fitted with precise thermometers and pressure gauges, giving you a complete overview of your process. The entire system is mounted on a unified 304 stainless steel base, complete with heavy-duty hydraulic lift casters, allowing you to easily maneuver the entire distillation unit around your production floor .

Heating options tailored to your setup.
Whether you prefer uniform indirect thermal fluid heating, direct fire, steam, or electricity, this system can be customized to accommodate your existing infrastructure and heating preferences, ensuring safe and effective operation for batches of any size.

300L Hybrid Pot & Column Whiskey Distiller-Product Advantages

1. Material & Craftsmanship

·  Unified Commercial Base Platform: Unlike traditional modular setups, this system is engineered on a single, heavy-duty hammered stainless steel base platform equipped with casters. This innovative design provides absolute structural integrity, simplifies installation, and allows the entire still to be easily moved and repositioned within the distillery, saving valuable floor space.

·  Premium Hybrid Boiler (Copper Inner & Hammered Steel Outer): The central boiler features a pure red copper inner bowl to actively catalyze the removal of sulfides and enrich the fruity, malt esters characteristic of premium whiskey. This is sealed within a thick, diamond-hammered 304 stainless steel jacket, offering superior thermal insulation, scratch resistance, and long-term durability.

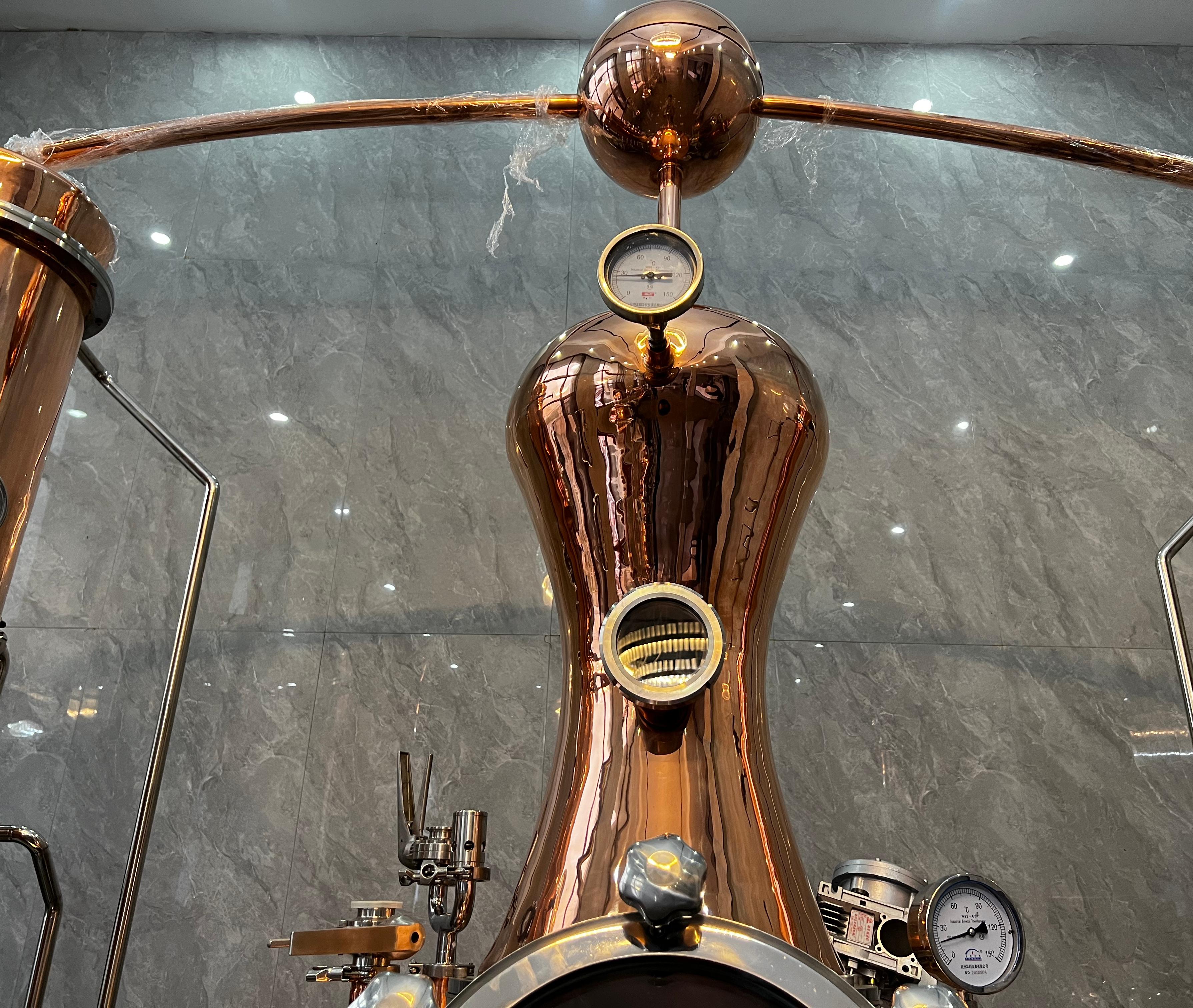

·  Classic Hand-Hammered Copper "Whiskey Helmet": The pot features a beautiful, traditional copper onion head (helmet) with a central vapor dome. This classic design allows heavier vapors to expand and condense, creating a rich, heavier, and more textured pot-still character, while also providing a stunning aesthetic focal point.

·  High-Purity Copper Condenser & Column Sections: Both the distillation column (left) and the condenser tower (right) are constructed from food-grade red copper with intricate mirror-polished finishes. This maximizes copper contact for flavor purification and offers exceptional corrosion resistance, paired with heavy-duty tri-clamp fittings for guaranteed vapor-tight seals.

2. Functional Design

·  Versatile Hybrid Pot & Column Operation: The highly optimized piping and valve manifold system allows the distiller to switch seamlessly between traditional Pot Still mode (for heavy, robust body whiskey) and Column Still mode (for lighter, cleaner, higher-proof spirits) without re-plumbing. This makes it an incredibly versatile tool for producing multiple spirit styles (Single Malt, Grain Whiskey, Gin, etc.) in one unit.

·  Efficient Multi-Sight-Glass Column (Left): The copper column features multiple strategically placed sight glasses. Each section is equipped with observation windows and dial thermometers, allowing the distiller to visually monitor internal vapor rising, liquid bubbling, and reflux flooding in real-time, ensuring precise control over the purity and character of the "Hearts" cut.

·  Dual-Tower Integrated Condensation System: The right-side copper tower houses a high-efficiency condenser. This dedicated tower design ensures rapid and full condensation of the spirit vapors, maximizing yield and preventing alcohol loss, even when running at high production speeds.

·  Precision Electric Heating with Agitation Capability: Designed for clean and precise operation, the still utilizes an internal electric heating system managed by the external control panel. The boiling vessel is optimized to prevent scorching, providing an even, rolling boil that protects the delicate malt flavors.

·  Ergonomic Accessibility & Easy Cleaning: The large, wide-mouth front manway door provides effortless access for charging the wash and deep cleaning the interior. The large bottom drain valve allows for quick and easy removal of spent grains.

·  Safe and Comprehensive Instrumentation: High-accuracy dial thermometers are strategically placed on the boiler, column, and condenser to provide continuous temperature monitoring. The system features a pressure relief valve, ensuring safe operation, and the heavy-duty adjustable feet provide absolute stability on uneven floors.
