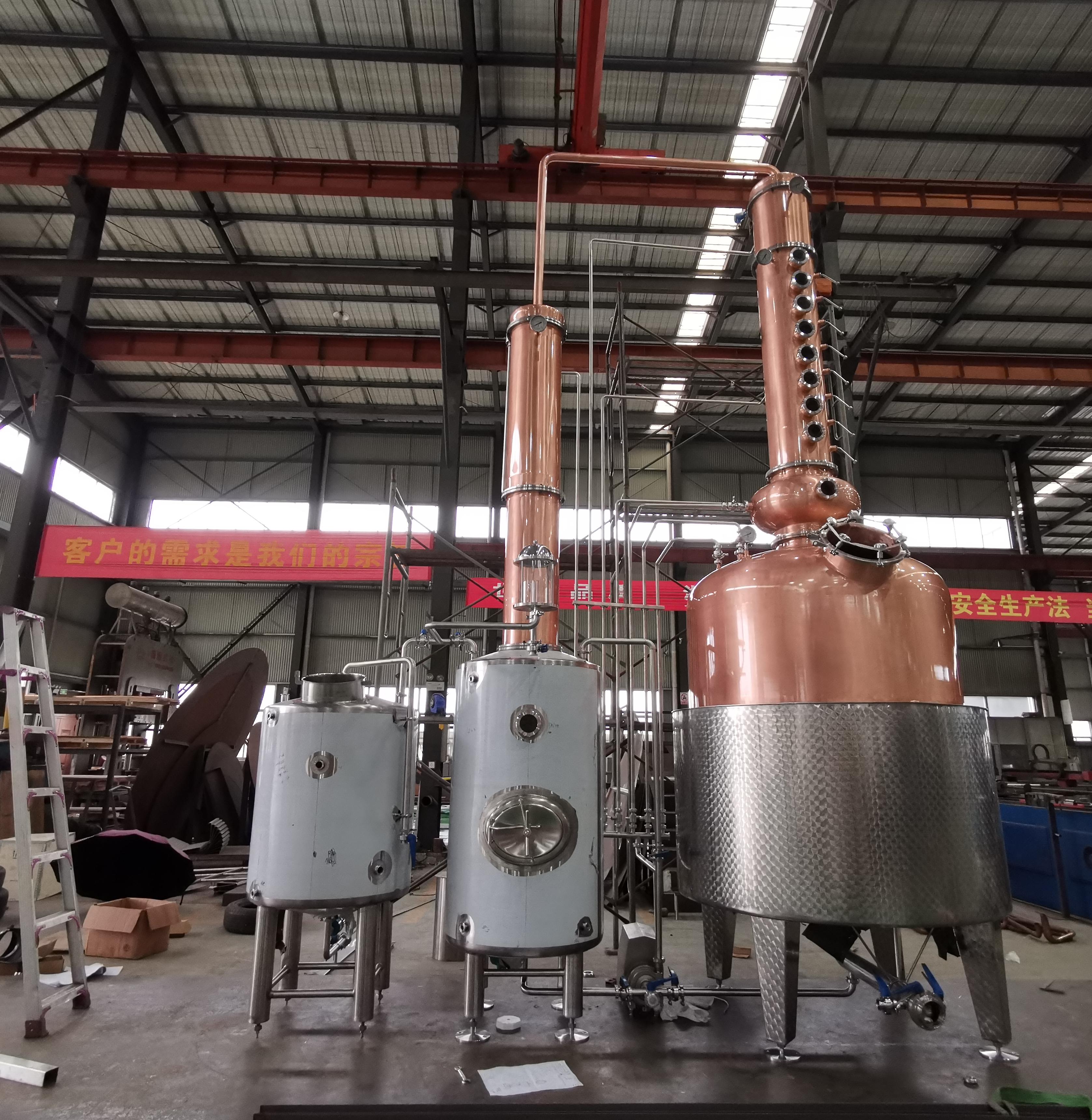

500L Pot and Column Still Whiskey Distiller

Taking craft whiskey to a commercial scale.

Scaling up production doesn't mean you have to sacrifice the craftsmanship. This 500L Pot and Column Still is a heavy-duty, completely modular system designed for growing distilleries that need reliability and serious output. By splitting the distillation process across a dedicated copper boiler, a tall fractionating column, and independent auxiliary tanks, it provides the perfect workflow for consistent, large-batch whiskey production.

The powerful heart of copper and stainless steel.
The core of the system features a massive boiler built with a heavy-duty food-grade SUS304 stainless steel base and a stunning, hand-finished pure copper dome and neck. This combination ensures the equipment remains rugged and easy to clean, while the copper works its natural magic—stripping away harsh sulfides and promoting a rich, smooth, and complex flavor profile. The large, multi-plate copper rectification column, complete with a glass manway and sight glasses, gives you a clear view of the vapor flow and reflux, allowing for precise cuts.

The ultimate modular workflow.
What truly sets this 500L system apart is the integrated auxiliary tank setup. It includes a dedicated stainless steel condenser column and two independent stainless steel collection/storage tanks, all meticulously connected by a sanitary piping manifold. This configuration allows you to run completely continuous or batch processes effortlessly. Whether you want the heavy, oily character of a traditional pot still run, or the cleaner, higher-proof output of a column still, the smart valve routing lets you switch modes with ease.

Built for the busy distillery floor.
Designed with the operators in mind, this system features a large, angled glass manway on the boiler for easy grain loading and cleaning. All essential thermometers and pressure gauges are strategically placed across the system for effortless monitoring. Everything is connected with sanitary Tri-clamp fittings, making teardown, maintenance, and sanitation quick and painless. It’s an industrial-grade workhorse built to handle years of rigorous production.

500L Hybrid Pot & Column Whiskey Distiller-Product Advantages

1. Material & Craftsmanship

·  Heavy-Gauge Hybrid Boiler Construction (Copper Inner & Stainless Outer): The main boiler features a massive high-purity red copper interior to provide maximum catalytic contact. This actively strips harsh sulfides and enriches the fruity, complex ester profile essential for craft whiskey. The exterior is fully encased in a heavy-duty, diamond-hammered 304 stainless steel jacket, offering superior structural rigidity, thermal insulation, and maximum durability for continuous industrial use.

·  Classic Hand-Hammered Copper Pot & Onion Head: The central boiler is topped with a beautifully crafted copper onion head (Whiskey Helmet). This traditional design allows for optimal vapor expansion, naturally retaining heavier oils and creating a distinctly rich, textured, and robust pot-still body.

·  Integrated High-Purity Copper Column: The primary distillation column is constructed from premium red copper with precision-engineered bubble cap trays. This ensures the maximum vapor-to-liquid interaction required to distill a perfectly smooth and clean spirit. Every joint is finished with heavy-duty tri-clamp fittings and food-grade silicone gaskets for absolute vapor-tight security.

·  Freestanding Premium Copper Condenser: The large, independent condenser tower on the left is also fabricated from high-grade copper, maintaining a consistent copper contact path from the very first boil to the final condensation, ensuring a flawless flavor profile.

2. Functional Design

·  500L Industrial-Scale Production Capacity: Designed specifically for expanding commercial distilleries, the 500L capacity provides a substantial batch output. It strikes the perfect balance between high-volume production and maintaining the flexibility of small-batch craft qualities.

·  Modular Dual-Tower Layout (Space Saving): Unlike traditional stills with the condenser hanging off the side, this system utilizes a freestanding condenser tower. This significantly reduces the overall height requirement of the still house, facilitates easier installation, and allows for seamless integration into existing production lines.

·  Versatile Hybrid Pot & Column Operation: Featuring a complex, multi-valve piping manifold, this system offers ultimate operational flexibility. Distillers can easily switch between Pot Still Mode (for a heavy, oily, flavorful body) and Column Still Mode (for a lighter, cleaner, higher-proof spirit) without any re-plumbing, allowing for the production of multiple whiskey styles within a single unit.

·  Comprehensive Process Instrumentation & Control: The system is equipped with multiple high-accuracy dial thermometers strategically placed on the boiler, pot neck, column, and condenser to provide real-time temperature data. This enables precise control over the reflux ratio and allows for exact cuts (Foreshots, Hearts, Feints) to ensure maximum consistency and spirit quality.

·  Separate Auxiliary Stainless Steel Tanks (Collection & Storage): The setup includes two high-capacity, 304 stainless steel tanks. These serve as an integrated, hygienic platform for collecting the raw distillate and can also function as a storage or dilution tank. Their smooth, polished finishes ensure easy cleaning (CIP) and strict hygiene compliance.

·  Optimized for Electric/Steam Heating with Ergonomic Accessibility: Designed to operate efficiently with electric immersion heaters or steam jackets, the boiler is protected from scorching. The wide-mouth front manway provides effortless access for loading grain wash, while the heavy-duty bottom discharge valve ensures quick and easy removal of spent grains, optimizing the overall production workflow.
