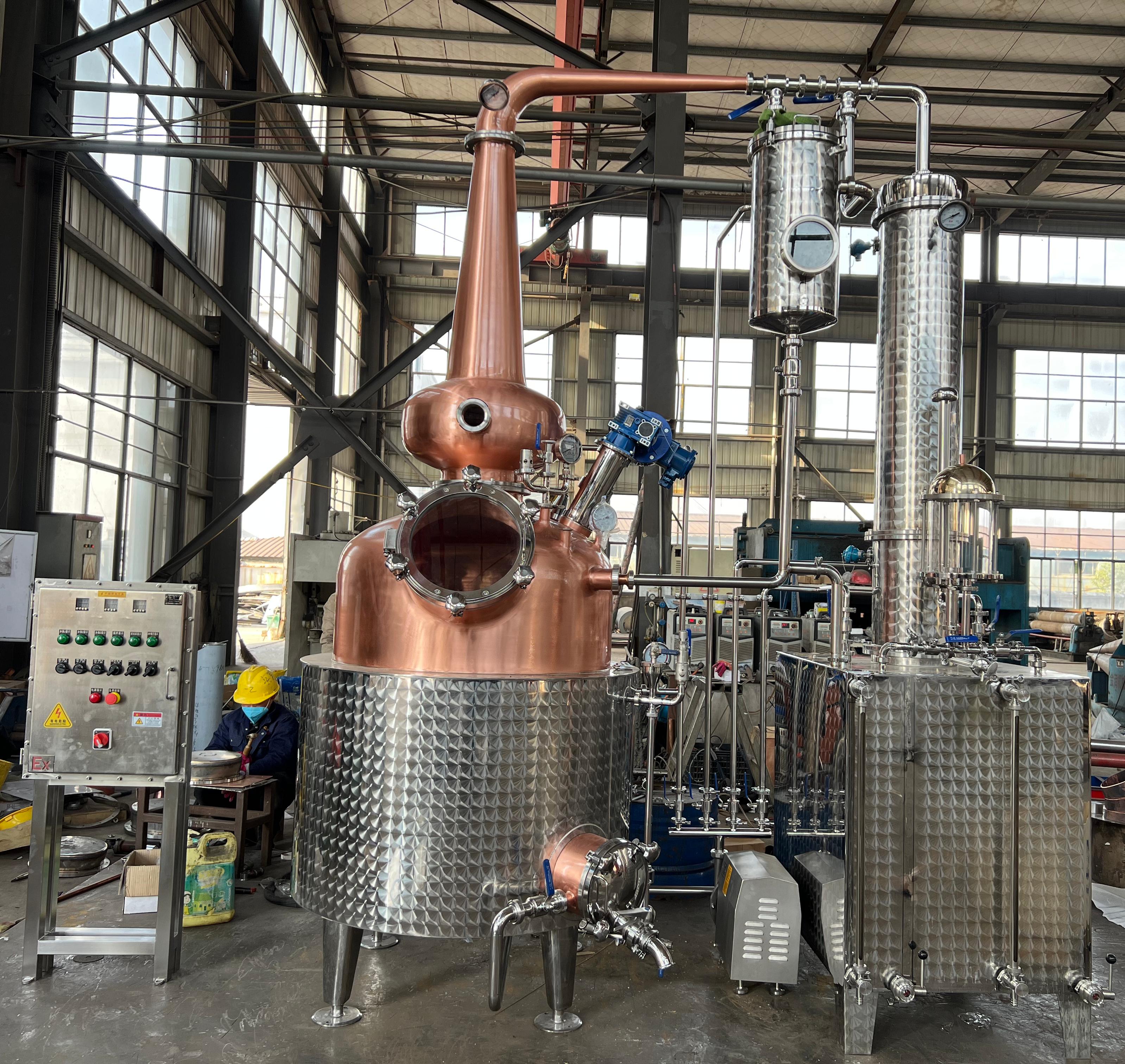

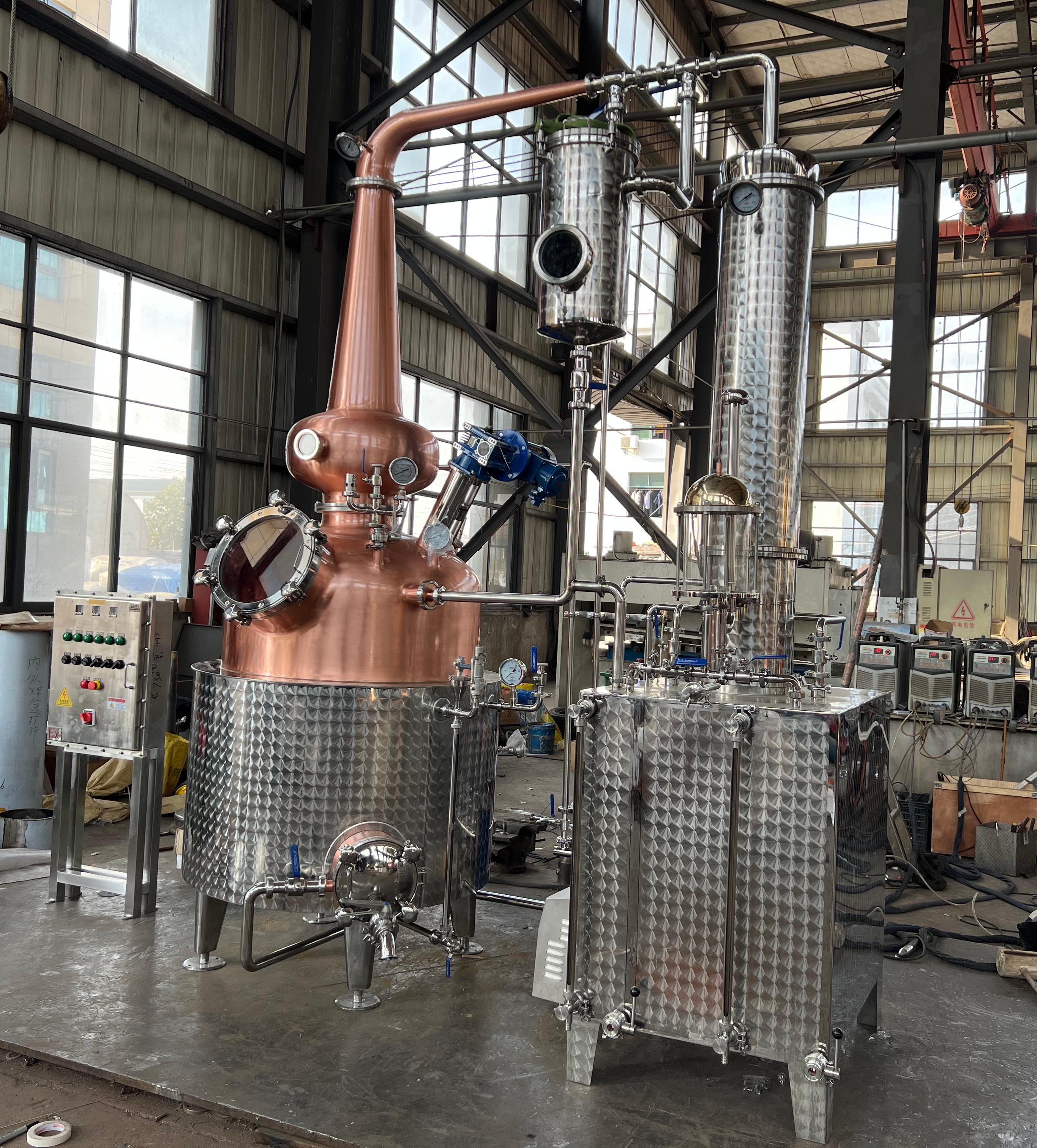

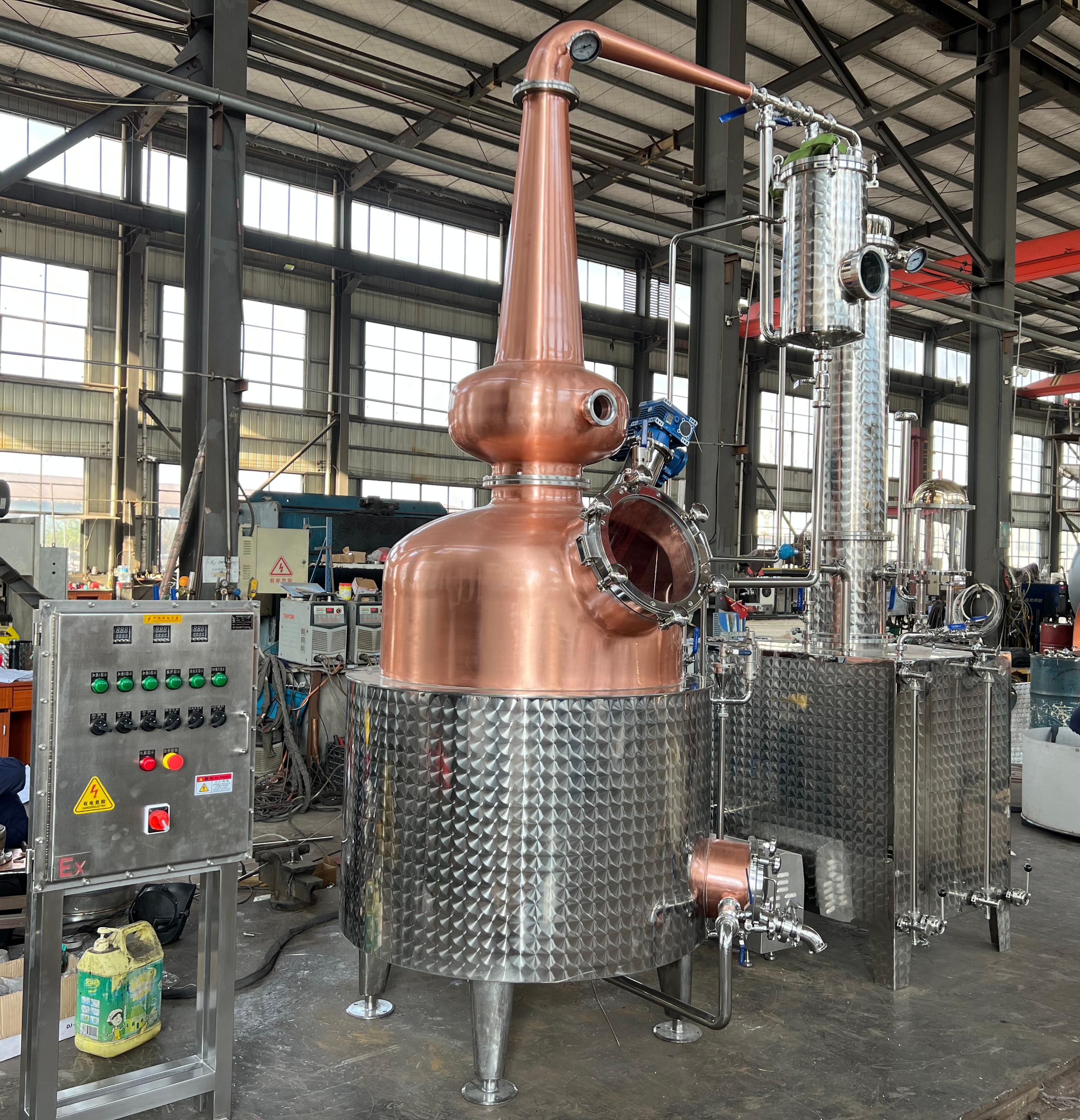

500L Copper Pot Still Whiskey Spirit Distiller

Professional-Grade Precision for High-Volume Whiskey Production

The 500L Copper Pot Still Whiskey Spirit Distiller is a comprehensive, hybrid unit designed for craft distilleries seeking to produce authentic, large-batch spirits. Combining the classic flavor-enhancing properties of copper pot stills with the high-purity output of modern rectification columns, the 500L Copper Pot Still Whiskey Spirit Distiller is the ideal centerpiece for producing smooth whiskey, bourbon, and brandy.

Premium Copper & Stainless Steel Construction

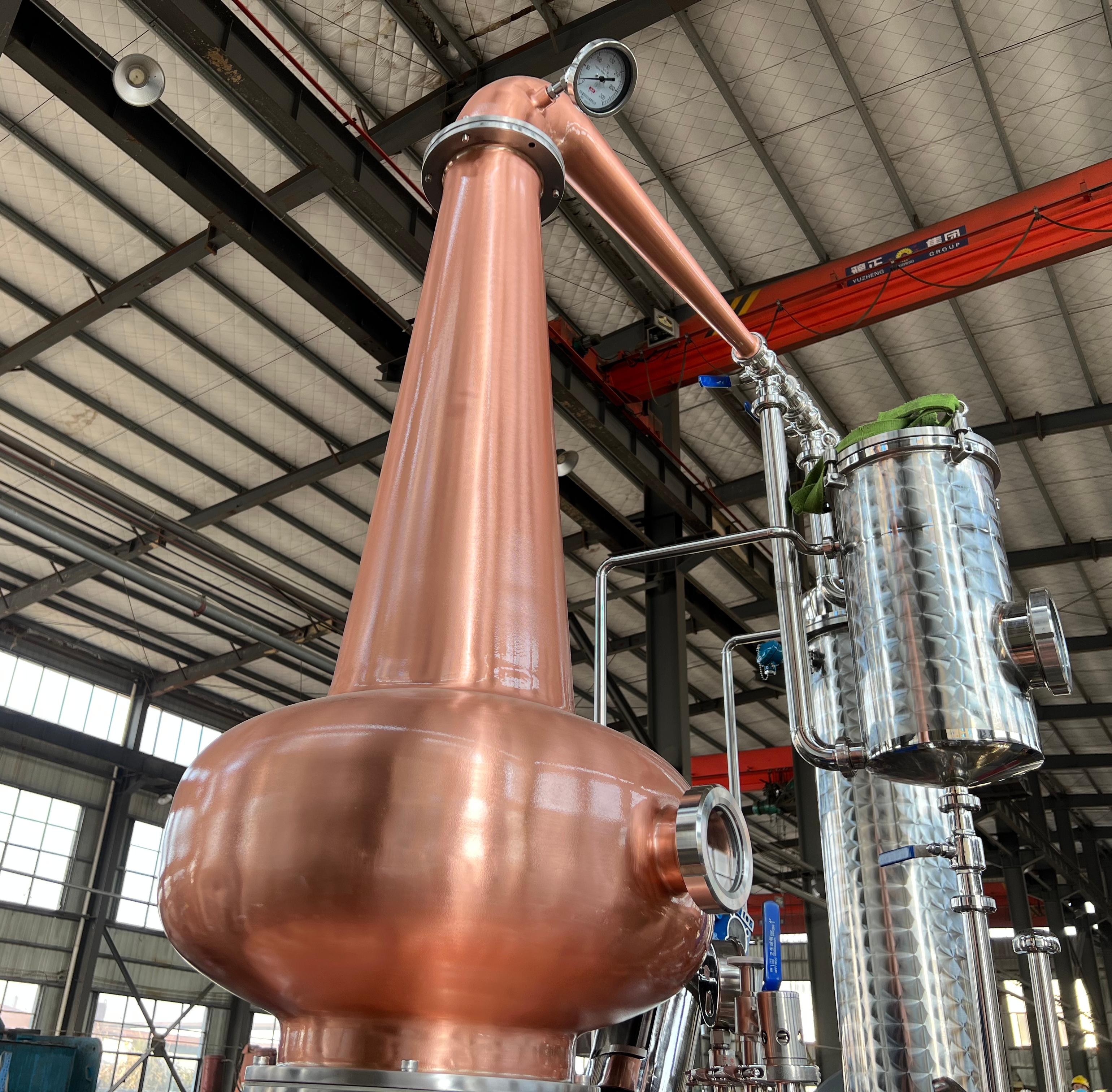

The 500L Copper Pot Still Whiskey Spirit Distiller features a hybrid build that maximizes both flavor profile and industrial durability. The massive boiler is encased in a polished, diamond-patterned stainless steel jacket with a high-capacity copper head and traditional swan neck. This ensures that the 500L Copper Pot Still Whiskey Spirit Distiller effectively removes unwanted sulfur compounds while maintaining the structural integrity required for commercial-scale operations.

Advanced Rectification & Visibility

The standout feature of the 500L Copper Pot Still Whiskey Spirit Distiller is its tall rectification column, equipped with multiple sight glasses. These allow the distiller to monitor liquid-vapor interaction in real-time, providing the precision needed for both pot still and column still modes. An integrated sight glass on the copper onion head further enhances the "eyes-on" operation of the 500L Copper Pot Still Whiskey Spirit Distiller.

Professional Control & Modular Design

The 500L Copper Pot Still Whiskey Distiller is designed as a complete, integrated workstation. It includes a dedicated electronic control panel for managing heating and system parameters with precision, as well as a heavy-duty stainless steel frame that houses the collection vessels and filtration units. This "all-in-one" approach makes the 500L Copper Pot Still Whiskey Spirit Distiller easy to install and operate in a professional distillery environment.

ZR BREW is a leading manufacturer of brewing, distilling, winemaking, and kombucha fermentation equipment with 14 years of industry expertise. We are dedicated to our high-end product line and uphold the craftsman spirit to deliver first-class brewing solutions. With a strong reputation for quality and reliability, we have established partnerships with clients across more than 40 countries worldwide.

500L Copper Pot Still Whiskey Spirit Distiller— Product Advantages

1. Material & Craftsmanship

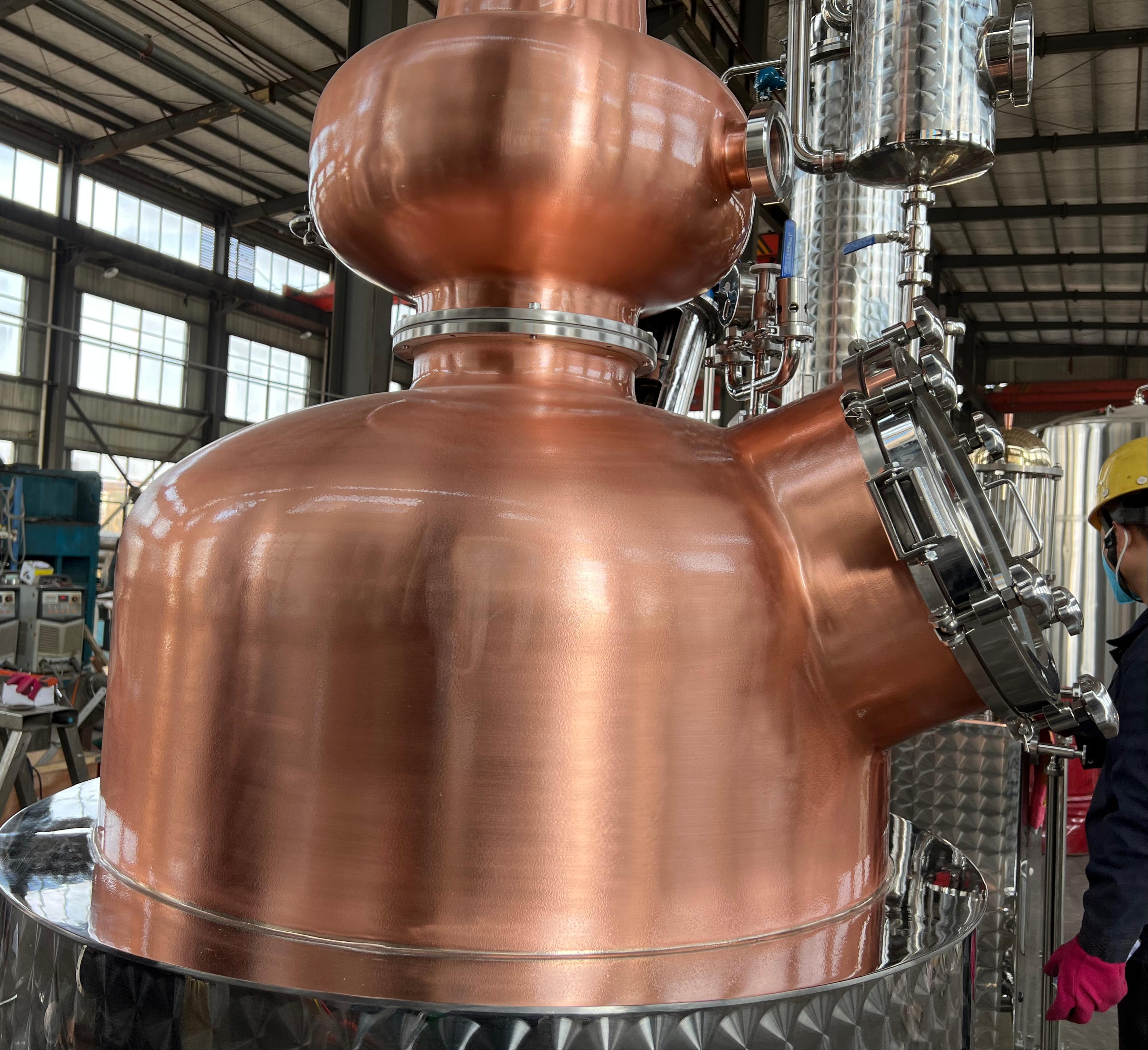

          • Copper Pot Still & Helmet: Crafted from high‑purity red copper with mirror‑polished finish. Copper reacts with sulfur compounds during distillation to effectively eliminate sulfide off‑odors, delivering authentic smooth whiskey character.

          • 304 Stainless Steel Boiler Base: Hammered‑finish stainless steel lower section provides superior durability, corrosion resistance, and food‑grade hygiene for long‑term commercial operation.

          • Full Copper Vapor Contact Pathway: Helmet, lyne arm, and spirit safe all constructed from premium copper — maximizing copper contact throughout the vapor path for optimal flavor development.

2. Functional Design

          • 500L Working Capacity: Ideal size for established craft distilleries and commercial whiskey production, offering significant batch throughput while maintaining artisanal quality control.

          • Motorized Agitator System: Industrial‑grade motor with explosion‑proof rating ensures uniform heat distribution and complete mixing of the mash, improving extraction efficiency and batch consistency.

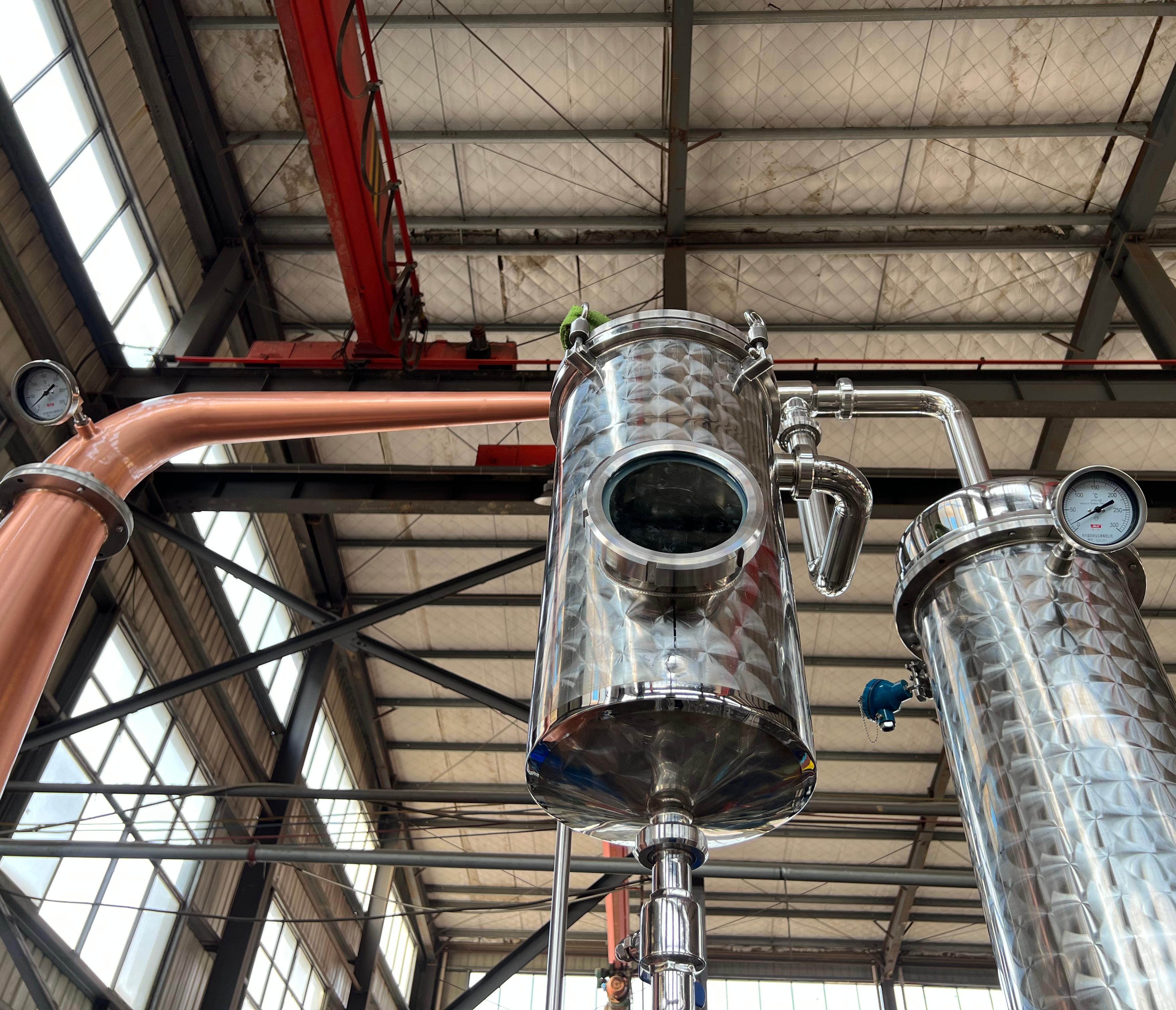

          • Dedicated Dephlegmator with Sight Glass: Stainless steel partial condenser with large observation window provides adjustable reflux ratio, allowing the distiller to fine‑tune whiskey character from light and fruity to full and complex.

          • Multi‑Purpose Switching: Suitable for distilling Whiskey, Brandy, Rum, and other pot‑still spirits — one unit meets diverse production requirements for craft distilleries.

3. Temperature Control & Monitoring

          • Multi‑Point Temperature Detection: Thermometers installed at the pot still, helmet, dephlegmator, and condenser to monitor temperature of each section in real time, guaranteeing distillation accuracy and batch consistency.

          • Pressure Indication System: Industrial‑grade pressure gauges fitted at critical process points to ensure safe operating conditions throughout each production run.

          • Explosion‑Proof Control Panel: Dedicated standalone control cabinet with Ex‑rated construction, multiple heating switches, indicator lights, and safety alarms for precise thermal management in hazardous environments.

4. Structural Advantages

          • Integrated Collection Base: Built‑in hammered stainless steel cabinet houses collection vessels with individual discharge valves, enabling clean simultaneous heads/hearts/tails separation without interrupting the distillation run.

          • Large Manway Opening: Oversized circular opening with clamped lid enables easy mash loading, interior inspection, and thorough cleaning between batches.

          • Heavy‑Duty Conical Legs: Three robust stainless steel conical legs provide stable, elevated mounting for the large‑capacity pot still, allowing easy floor access for cleaning and drainage.

          • Built‑In Pumps & Valves: Integrated circulation pumps and blue‑handled ball valves throughout the system eliminate the need for external equipment and provide precise flow control.

5. Premium Advantage

          • Professional‑Grade Whiskey Production: This advanced pot still system combines traditional copper craftsmanship with modern automation and safety features — the ideal choice for serious whiskey producers demanding both quality and operational efficiency.
