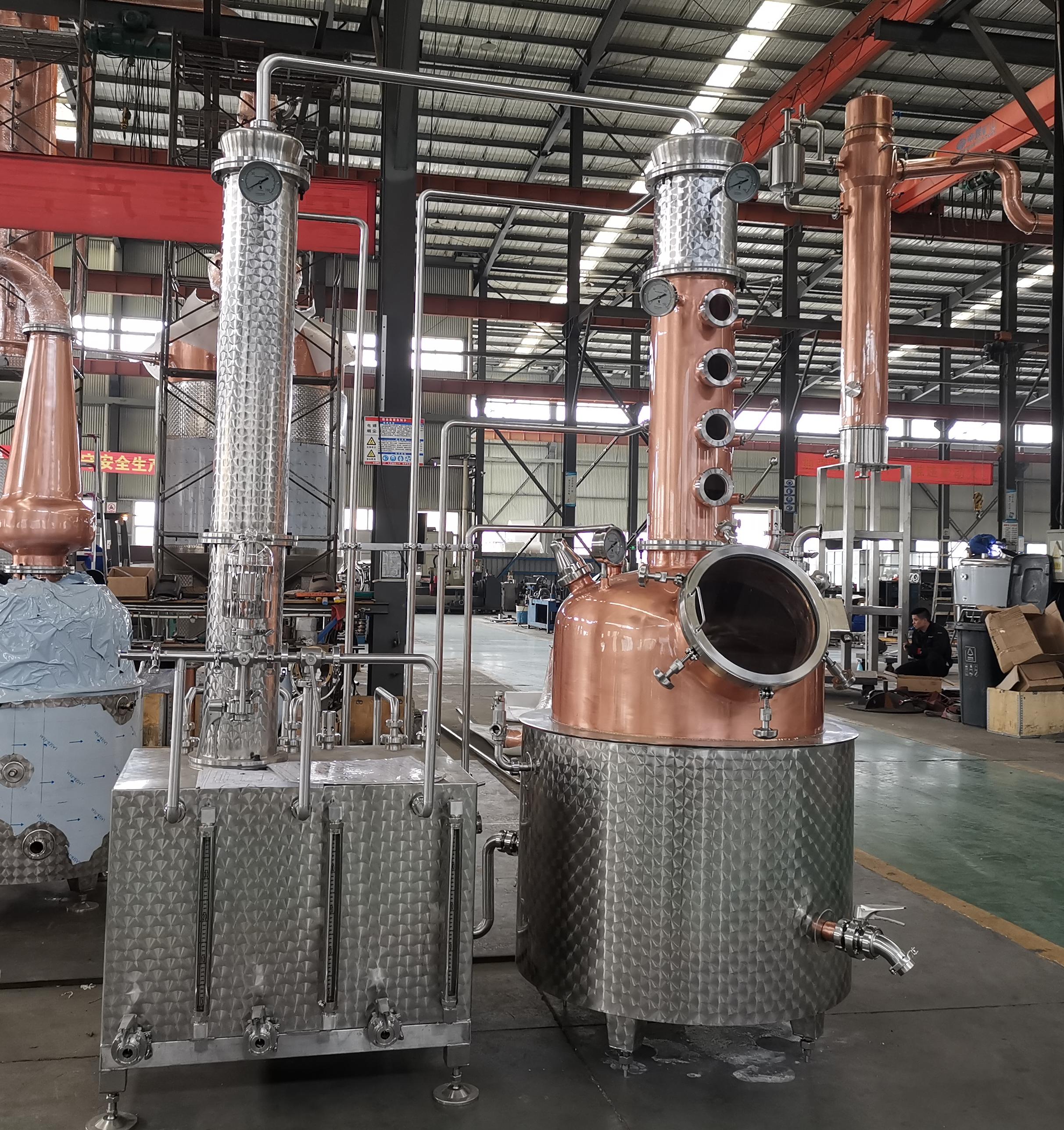

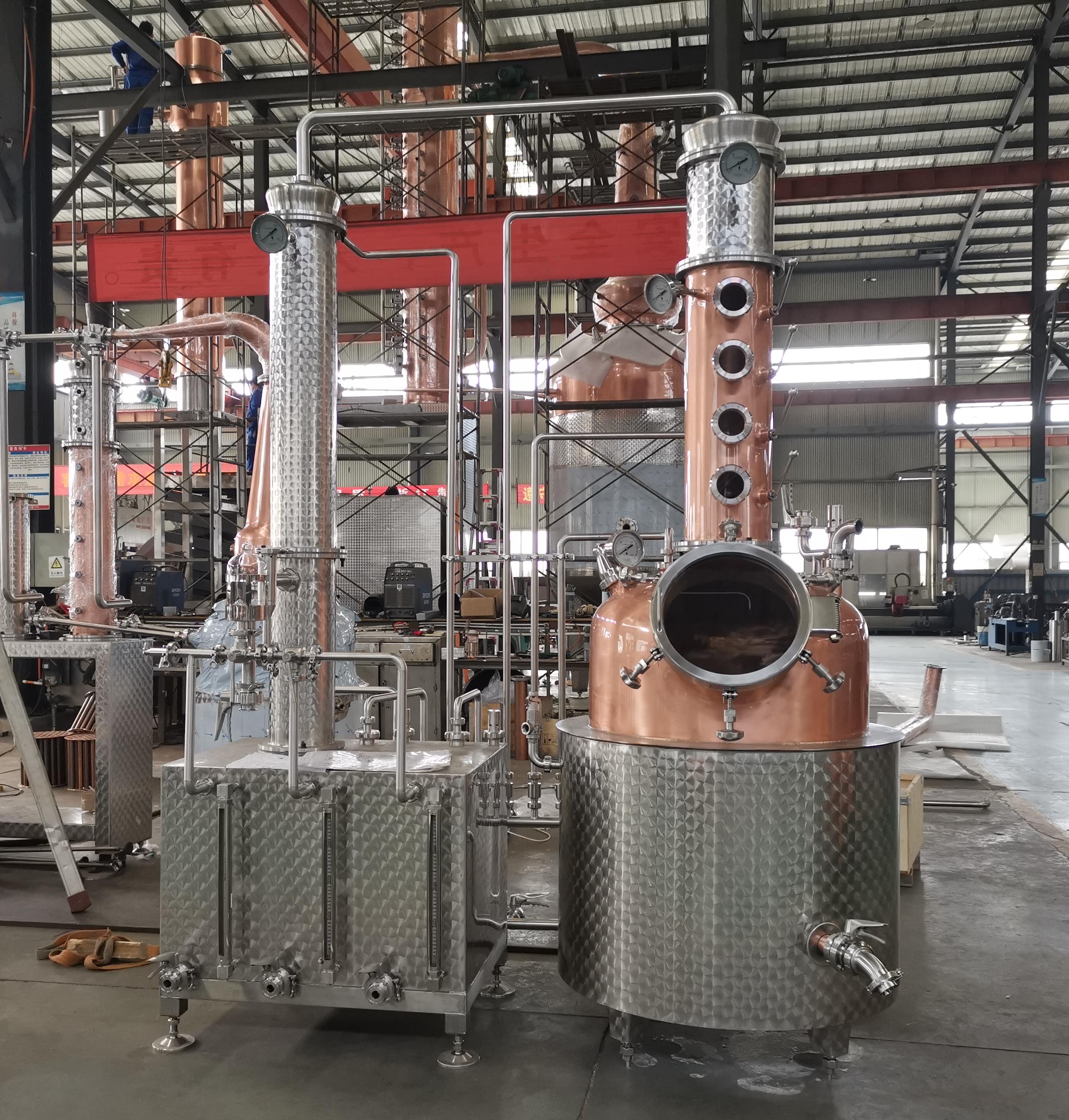

500L Column Still for Whiskey Distillation

Professional-Grade Precision for Large-Scale Craft Whiskey Production

The 500L Column Still for Whiskey Distillation is a heavy-duty, professional-grade system meticulously engineered for mid-to-large-scale craft distilleries. Featuring a sophisticated modular design with a separate condenser and collection unit, this setup combines traditional copper distillation craftsmanship with highly efficient industrial distilling technology. It is specifically designed to deliver high-volume, consistent, and exceptionally clean whiskey, while also perfectly handling bourbon, rum, and brandy production.

Robust Hybrid Construction with Dedicated Condensing Unit

This 500L system features a premium hybrid build. The large boiler is crafted from food-grade SUS304 stainless steel with a diamond-embossed finish, ensuring maximum hygiene and durability for heavy-duty runs. The upper onion-shaped neck and the column are made of high-purity copper, which naturally catalyzes reactions to effectively eliminate unwanted sulfur compounds, resulting in a remarkably smooth and richly layered flavor profile. The separate, highly efficient stainless steel condenser and collection tank (equipped with sight glasses) allow for stable cooling and seamless, continuous operation.

Advanced Multi-Plate Copper Column with Direct Fire / Steam Options

At the core of the 500L Column Still is its enlarged multi-plate copper fractioning column, fitted with multiple sight glass ports. This advanced column design achieves highly precise fractional distillation and stable internal reflux. Heavy vapors condense and flow back to the boiler, while refined alcohol vapors travel through the piping to the dedicated condenser. This structure enables distillers to perfectly separate the heads, hearts, and tails, yielding a cleaner, more aromatic, and highly refined whiskey distillate at a commercial scale. (Heating methods available include direct fire, steam jacket, or electric depending on user requirements).

Industrial-Grade Efficiency, Visibility & Easy Maintenance

Designed for rigorous commercial operation, the 500L Column Still features a large, angled quick-opening manway for effortless loading and cleaning, along with a bottom discharge valve for easy waste draining. A comprehensive set of gauges (pressure and temperature) and sampling ports are placed strategically for real-time monitoring and precise cut selection. The detachable flange connections and the standalone condensing station significantly simplify internal cleaning and maintenance, making this still a durable and highly practical investment for expanding distilleries.

500L Hybrid Twin-Column Still for Whiskey Distillation-Product Advantages

1. Material & Craftsmanship

·  Hybrid Boiler Construction (Copper Inner, Stainless Outer): The 500L boiler features a thick pure red copper inner bowl, providing excellent heat conductivity and a natural catalytic reaction that strips harsh sulfides, promoting a rich, fruity whiskey profile. The exterior is wrapped in heavy-duty, diamond-hammered 304 stainless steel, which offers remarkable structural strength, superior thermal insulation, and high scratch resistance in demanding production environments.

·  Pure Copper Distillation Column: The main rectification column is meticulously crafted from high-grade red copper. Featuring multiple observation sight glasses and precision-engineered copper plates inside, it ensures maximum vapor-to-liquid interaction, effectively concentrating the complex esters and malt aromas desired by master distillers.

·  Polished Copper Vapor Routing: The extensive vapor piping and connection lines between the boiler and the condenser are fabricated from polished copper. This extended copper contact path further purifies the spirit before condensation, ensuring a remarkably smooth and clean final product.

·  Fully Sanitized 304 Stainless Steel Auxiliary Unit: The complete condenser and collection system (left side) is housed within a heavy-duty, hammered stainless steel rectangular chassis. All wetted parts strictly meet food-grade standards, guaranteeing zero chemical leaching and making the system exceptionally easy to clean and maintain for long-term commercial use.

2. Functional Design

·  Independent Condenser & Collection Module (Split Design): Unlike traditional stills where the condenser is hung on the side, this system features a dedicated, freestanding stainless steel unit housing the efficient multi-tube condenser, spirit safe, and collection valves. This innovative modular layout significantly reduces overall height, allows for flexible workshop placement, and provides a centralized, ergonomic area for precise alcohol collection and blending.

·  Optimized for Electric/Steam Heating with Built-in Agitation: Designed without a direct-fire base, this still is engineered to operate flawlessly with electric immersion heaters or steam jackets. It integrates an internal motorized agitator system (visible via the control piping/valves) that constantly stirs the wash. This ensures uniform temperature distribution, prevents grain solids from scorching, and effectively protects the copper interior, preserving the purest whiskey flavors.

·  Customizable Reflux & Multi-Column Capability: The large multi-sight-glass column offers precise control over the internal reflux ratio. The complex cross-piping allows for flexible distillation modes, enabling distillers to operate as a classic pot still for heavy, robust bodies, or adjust the valves to achieve a higher-proof, lighter grain whiskey style, offering unprecedented versatility in spirit production.

·  500L Commercial-Grade Scale: With a 500L working capacity, this system is perfectly tailored for expanding micro-distilleries and mid-scale craft production. It strikes an ideal balance between large output capacity and manageable footprint, allowing for substantial daily throughput without requiring massive industrial infrastructure.

·  Ergonomic Full-Scale Access: The boiler features a large, wide-mouth front manway door, providing effortless access for loading grain mash and performing thorough internal cleaning after each run. High-precision dial thermometers are strategically placed on the column and boiler to provide real-time data, ensuring precise cut points and consistent batch-to-batch quality. The heavy-duty adjustable leveling feet ensure absolute stability on any factory floor.
