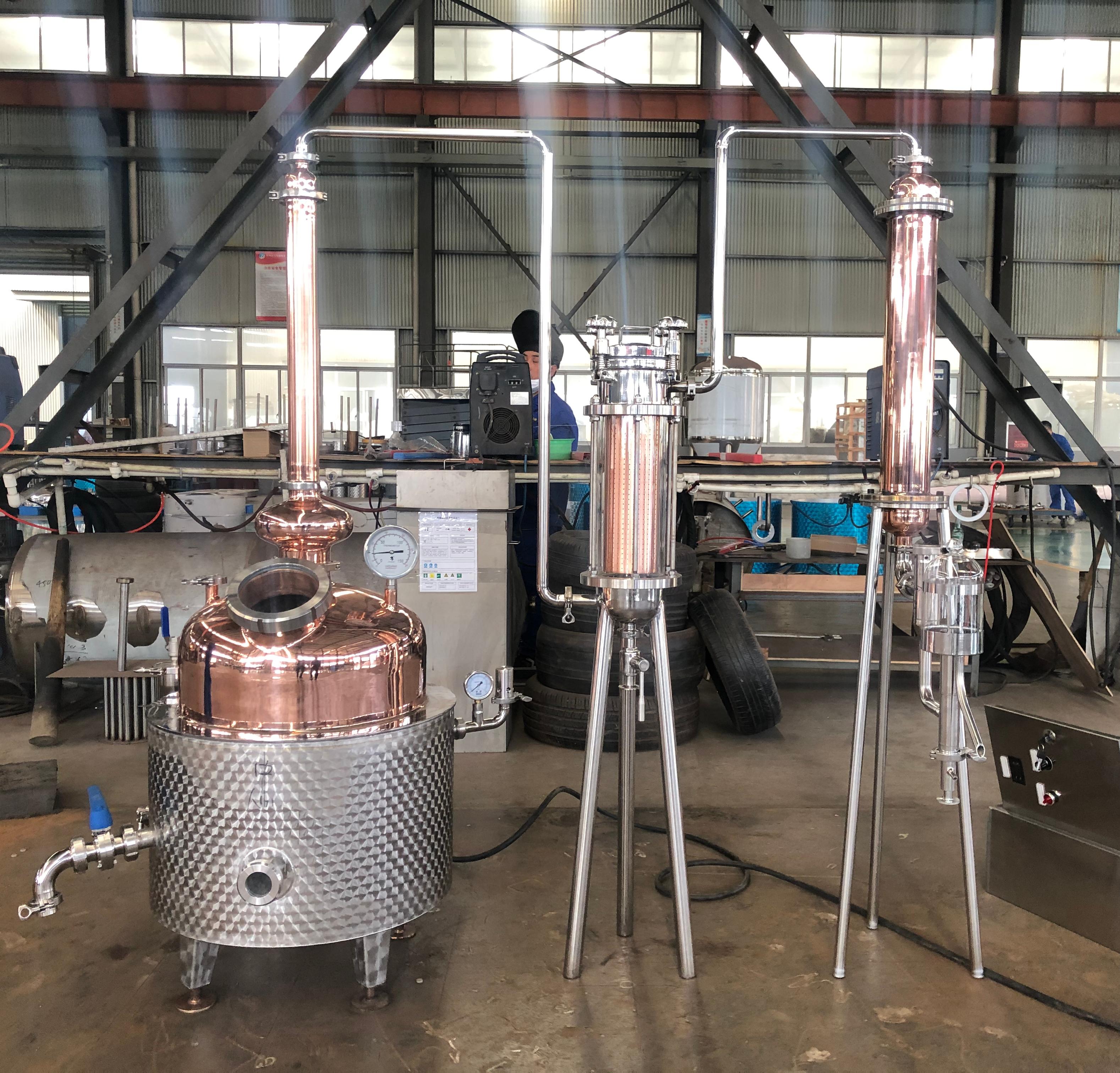

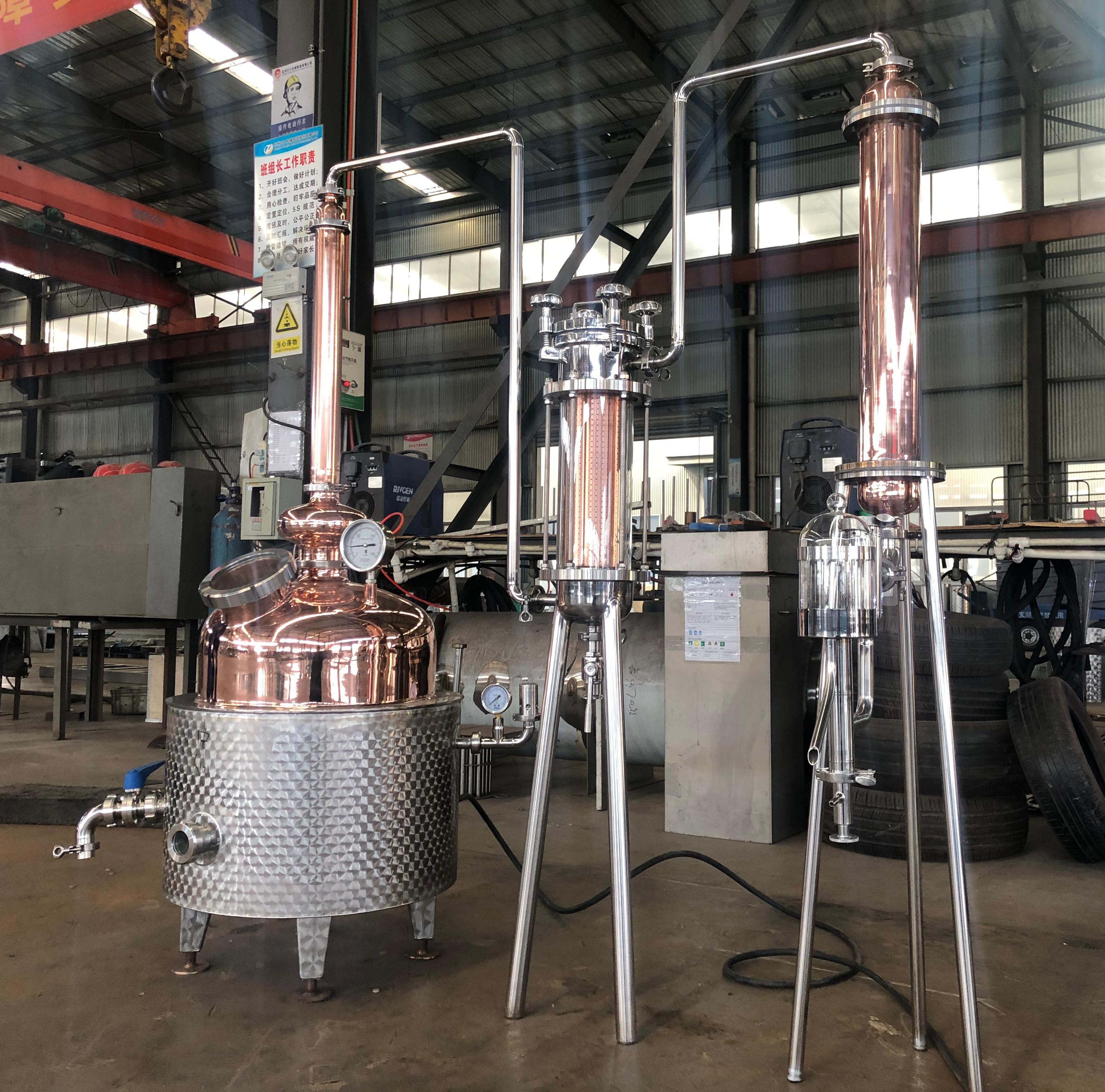

100L Gin Distiller

The complete compact system for aromatic, high-proof gin.

This 100L Gin Distiller is a sophisticated, all-in-one distillation system designed for craft distilleries, gin bars, or boutique producers who want to create expressive, botanical-forward spirits . Featuring a beautifully integrated setup with a dedicated gin basket and a standalone condensing tower, it provides the perfect balance of traditional copper craftsmanship and modern distilling efficiency.

A refined hybrid of copper and stainless steel.

The boiler is constructed from food-grade SUS304 stainless steel with a classic diamond-embossed finish, providing exceptional hygiene and durability . The onion-shaped dome, the column, and the gin basket are crafted from high-purity copper. This copper construction plays a vital role in distilling by naturally catalyzing reactions that strip away unwanted sulfur compounds, resulting in a smoother, more aromatic, and exceptionally clean spirit profile .

Key Components:

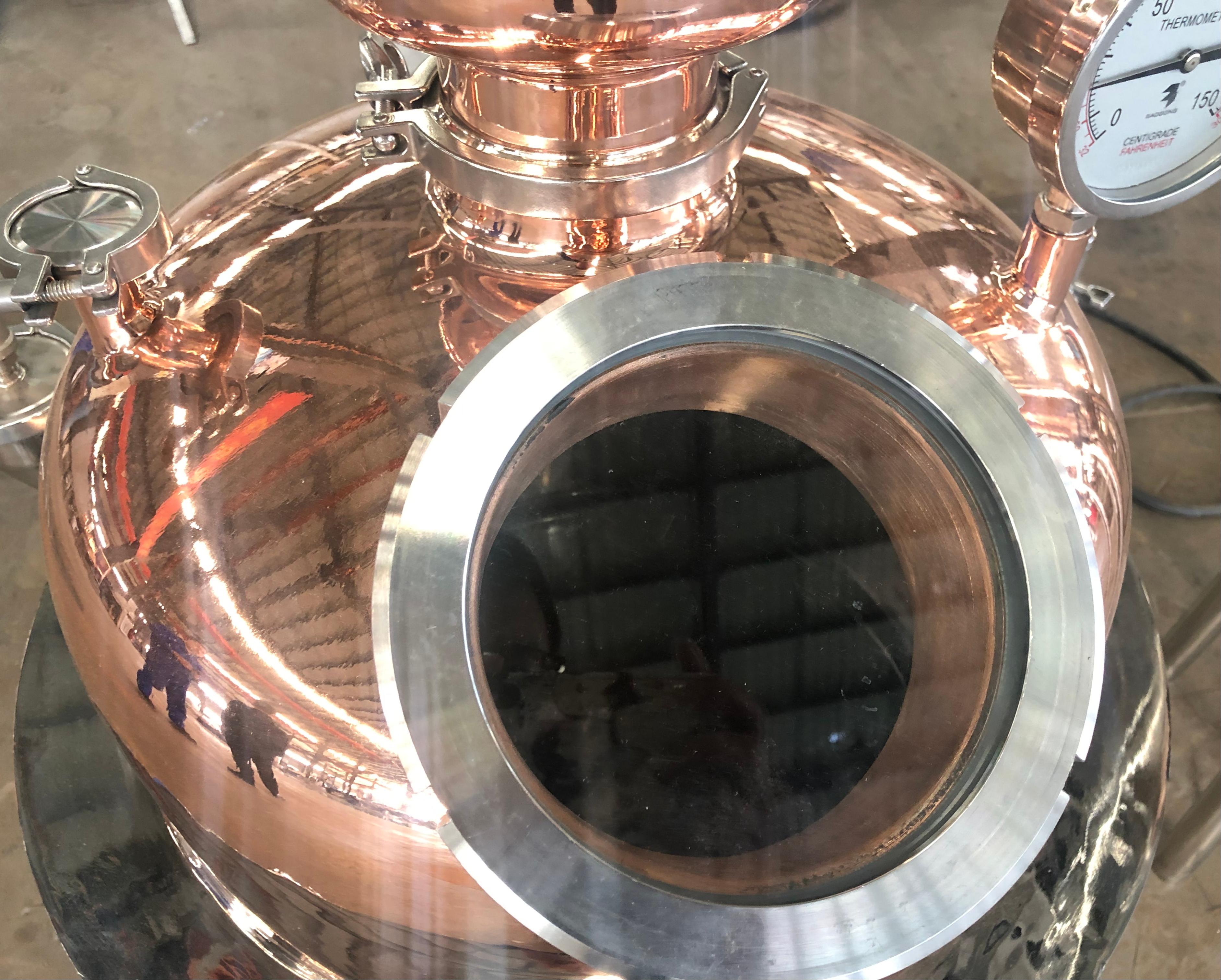

·  Main Still Boiler: 100L effective volume, complete with a manway, temperature gauge, and safety valves .

·  Gin Basket: A dedicated vessel for holding botanicals (juniper, coriander, citrus peel, etc.). Vapors pass through the basket to extract essential oils and infuse complex aromas without distilling the solids .

·  Rectification Column: Multi-plate copper column with sight glasses, allowing real-time observation of the internal reflux for precise cuts .

·  Condenser & Collection: A highly efficient stainless steel condenser ensures maximum cooling, paired with a parrot outlet for easy sampling and spirit collection .

·  CIP System: Equipped with a built-in Cleaning-In-Place spray ball, making sanitation and maintenance quick and effortless .

100L Modular Gin Distiller-Product Advantages

1. Material & Craftsmanship

·  Hybrid Boiler Construction (Copper Inner, Hammered Stainless Outer): The 100L boiler features a high-purity red copper inner bowl, which actively catalyzes the removal of sulfides and enriches the spirit with a vibrant, botanical-forward character. This is seamlessly encased in a durable, diamond-hammered 304 stainless steel outer shell, providing excellent structural rigidity, superior thermal insulation, and a scratch-resistant finish for long-lasting commercial use.

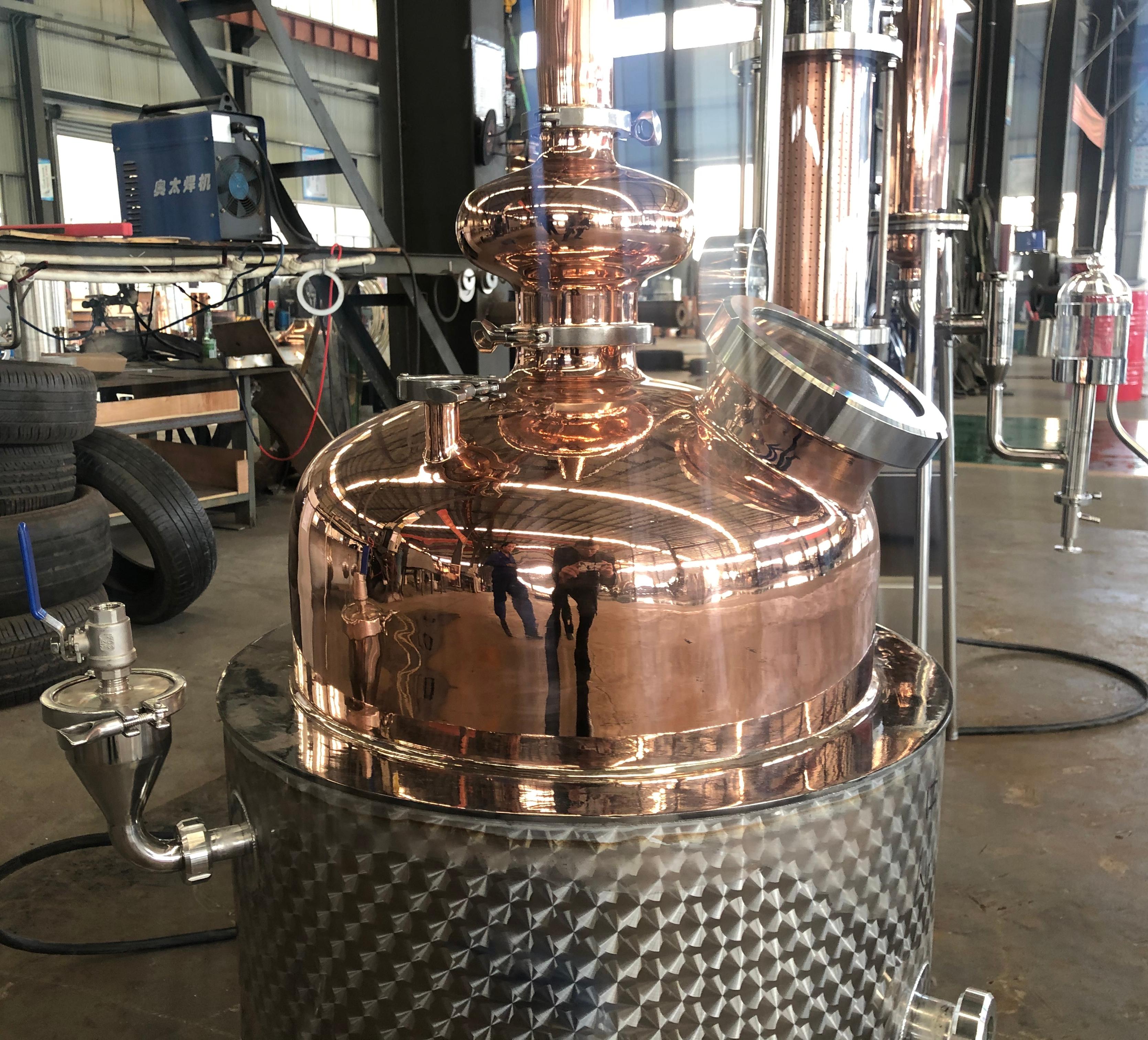

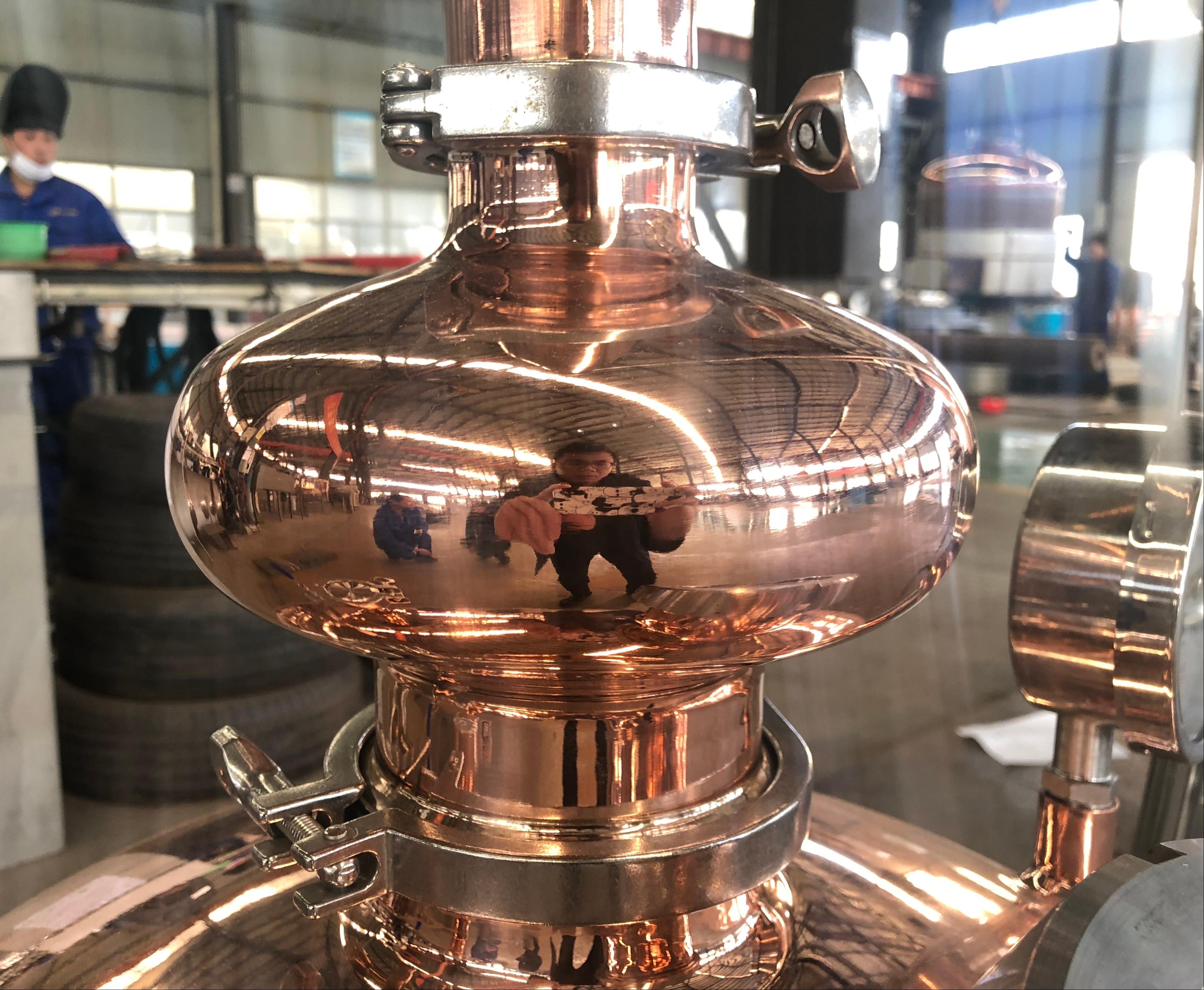

·  Classic Copper Onion Head & Vapor Path: The pot is topped with a traditional hand-hammered copper "whiskey helmet" (onion head) to allow for optimal vapor expansion, retaining a rich mouthfeel. All vapor piping, reflux columns, and primary condenser sections are fabricated from pure, food-grade red copper to ensure maximum copper-to-vapor contact for impeccable spirit purification.

·  Mirror-Polished Stainless Steel Stands & Fittings: All independent towers are supported by heavy-duty, mirror-polished 304 stainless steel tripod stands, providing absolute stability and a premium, modern aesthetic. The entire system uses sanitary tri-clamp fittings and food-grade silicone gaskets to guarantee a 100% vapor-tight seal and absolute hygiene, making it exceptionally easy to disassemble and clean (CIP friendly).

2. Functional Design

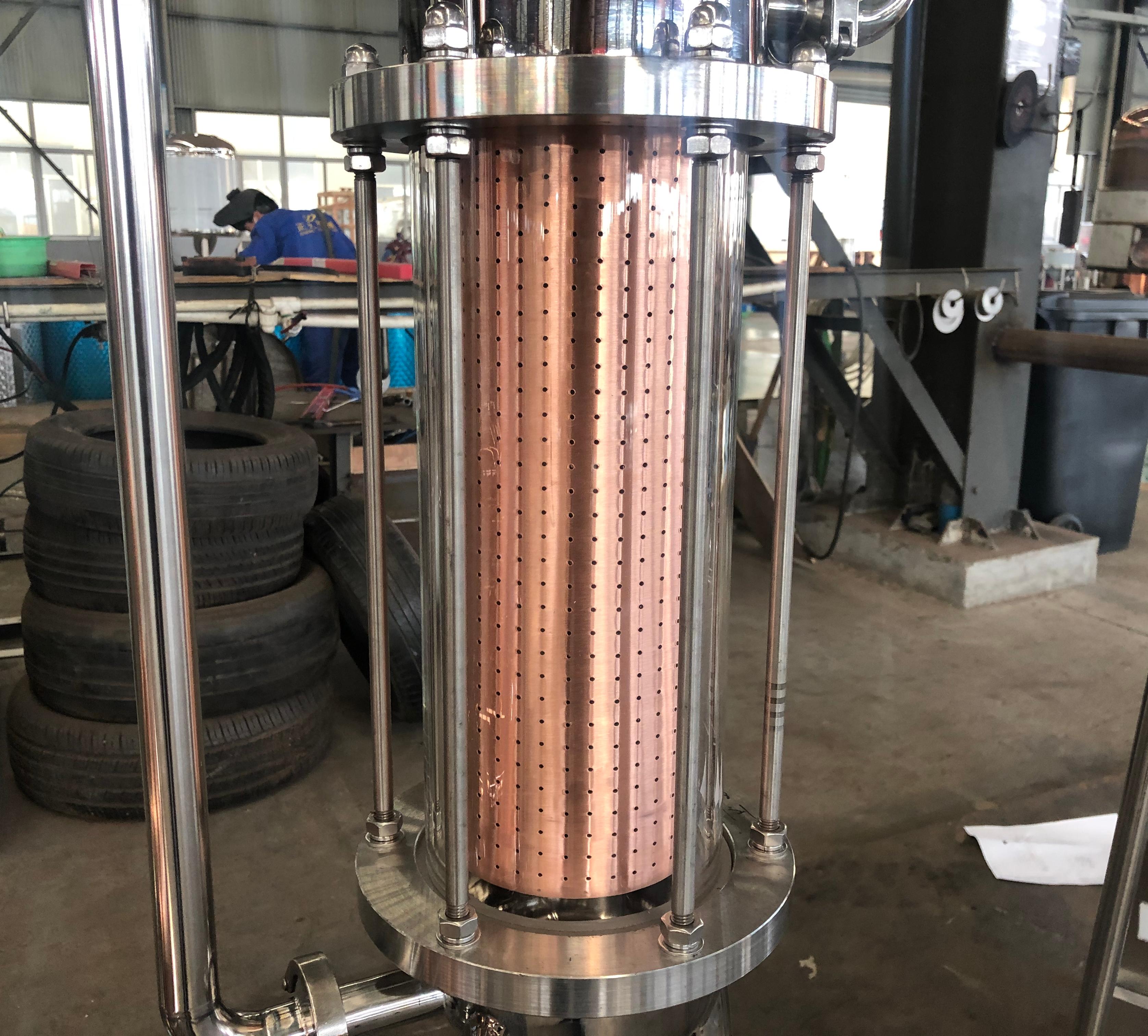

·  Modular Gin Basket & Multi-Tower System: Specifically designed for botanical infusion, this system features a dedicated, freestanding Gin Basket (Botanical Vapor Chamber) with glass sight windows, flanked by a secondary condenser column. The modular setup allows the distiller to easily fill and swap botanicals without disrupting the wash, while the glass chambers provide a visually stunning, real-time view of the vapor passing through the herbs and spices.

·  100L Pilot-Scale Capacity: Perfectly sized for micro-distilleries, tasting rooms, and R&D labs. The 100L working volume allows for efficient recipe development, small-batch premium releases, and high-consistency production without the high costs and time constraints of large-scale runs.

·  Precision Multi-Observation & Instrumentation: The main copper column and the freestanding towers are equipped with multiple sight glasses and high-accuracy dial thermometers. Distillers can meticulously monitor the live vapor rising, condensation, and distillation progress, allowing for absolute precision when making heads, hearts, and tails cuts to achieve the perfect balance of flavor and proof.

·  Versatile Operation for Multiple Spirits: While optimized for complex gin profiles (light, medium, or heavy botanical extraction), the hybrid nature of the main boiler and column allows it to seamlessly function as a traditional pot still or column still, enabling the production of whiskey, brandy, or vodka within the same unit.

·  Precision Electric Heating: Designed for clean and precise operation, the boiler integrates seamlessly with an electric heating system. The external control panel provides exact temperature management, ensuring an even, rolling boil that prevents scorching and protects the delicate botanical oils, maximizing the final yield and purity of the distillate. Heavy-duty adjustable leveling feet ensure the entire assembly remains perfectly stable on any floor.
