100L Whiskey Column Still

Professional-Grade Precision for Craft Whiskey

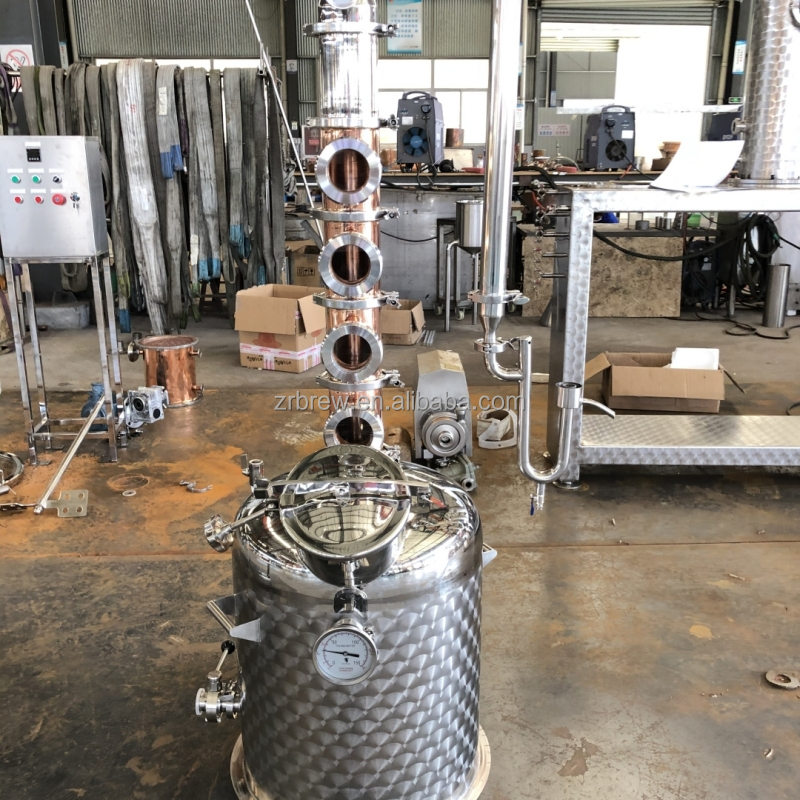

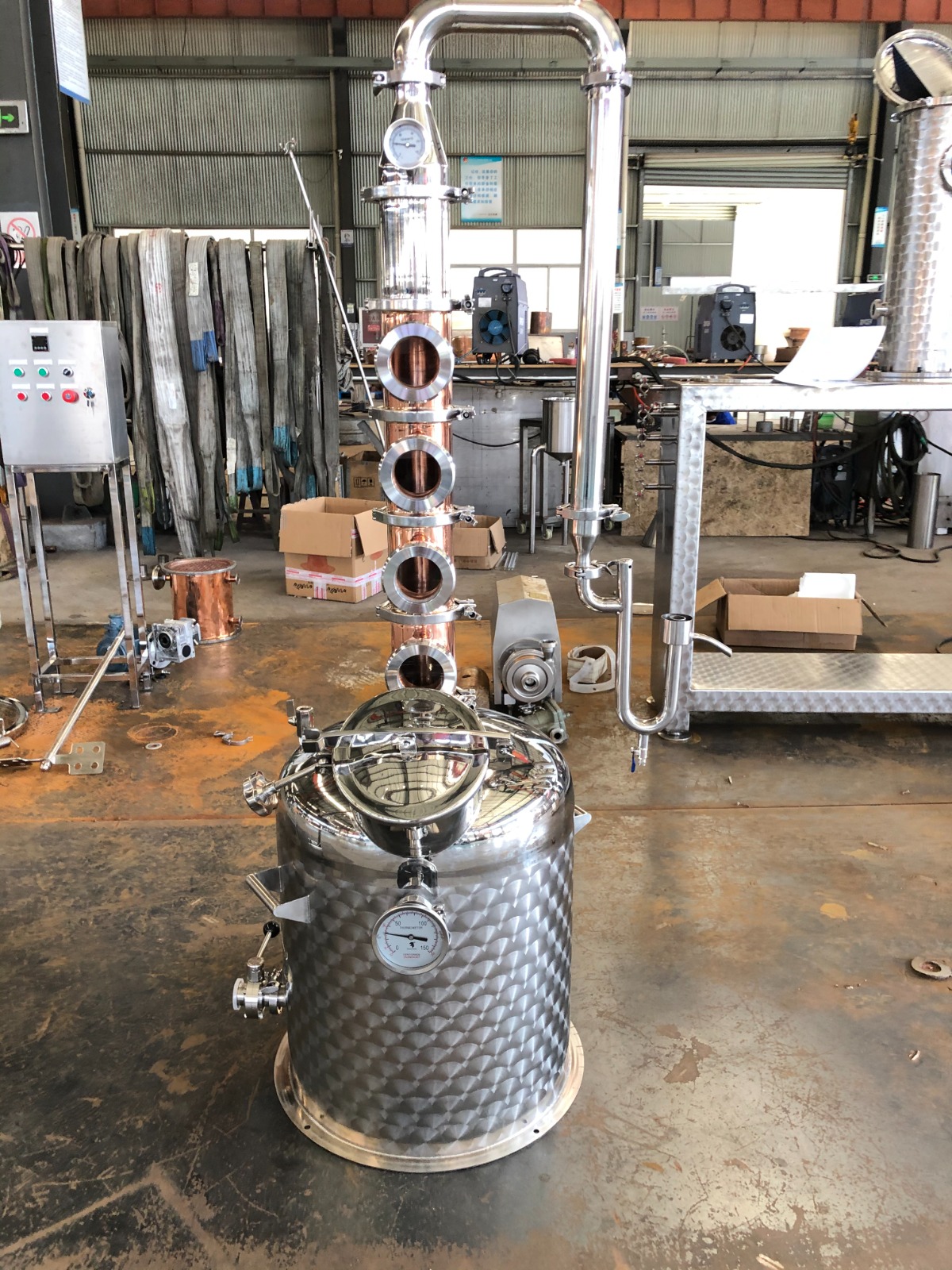

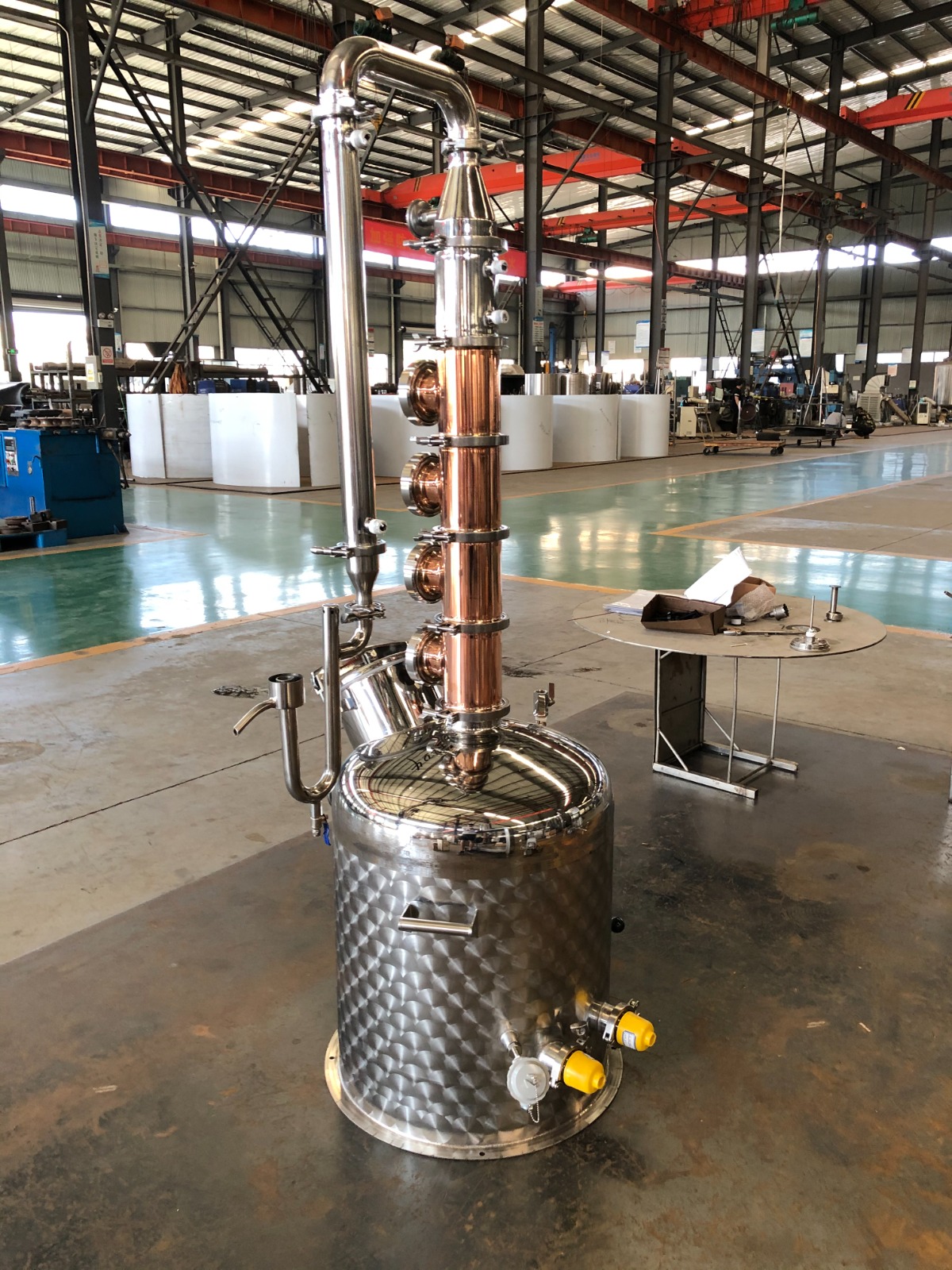

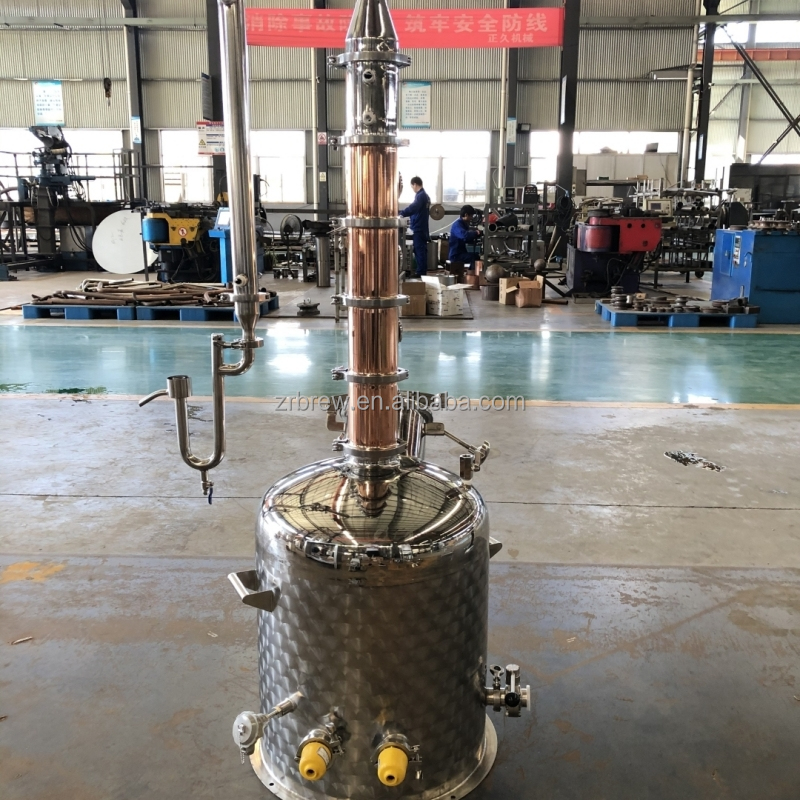

The 100L Whiskey Column Still Spirit Distiller is a comprehensive, professional-grade unit engineered specifically for craft distilleries dedicated to premium whiskey production. Combining traditional copper distillation advantages with modern column distilling technology, the 100L Whiskey Column Still Spirit Distiller delivers consistent, high-quality whiskey with rich flavor and clean profile, and it is also suitable for bourbon, rum and brandy making.

Premium Copper & Stainless Steel Construction

The 100L Whiskey Column Still Spirit Distiller features a hybrid build that maximizes whiskey flavor and equipment durability. The fractioning column is made of high-purity copper. Copper can trigger natural catalytic reactions and effectively remove unwanted sulfur compounds, bringing smooth and layered taste to your whiskey. The boiler is constructed with diamond embossed food-grade SUS304 stainless steel, maintaining food-grade hygiene and stable long-run performance.

Multi-Plate Copper Column for Whiskey Distillation

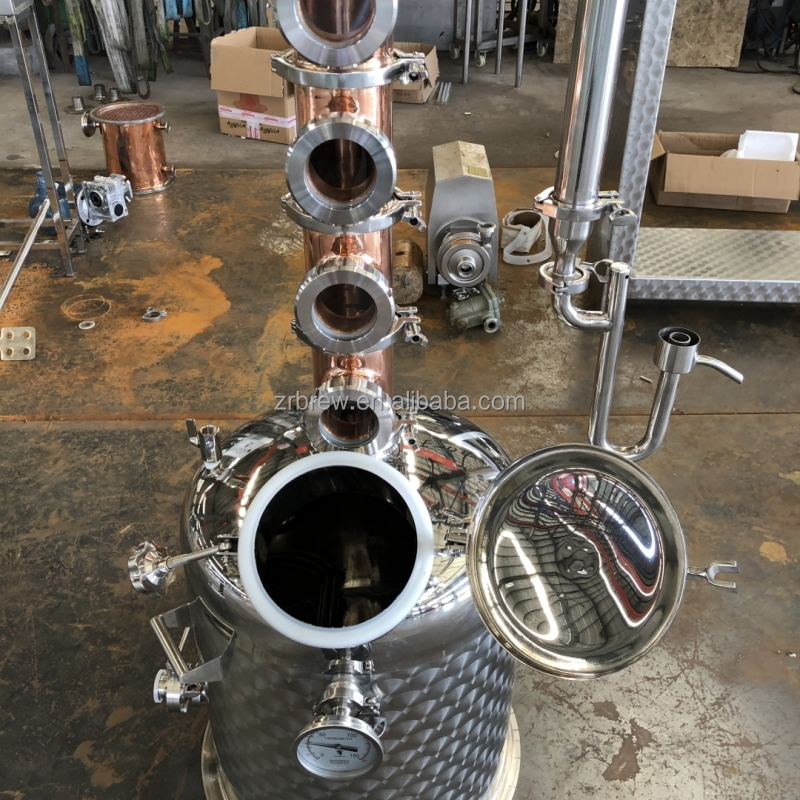

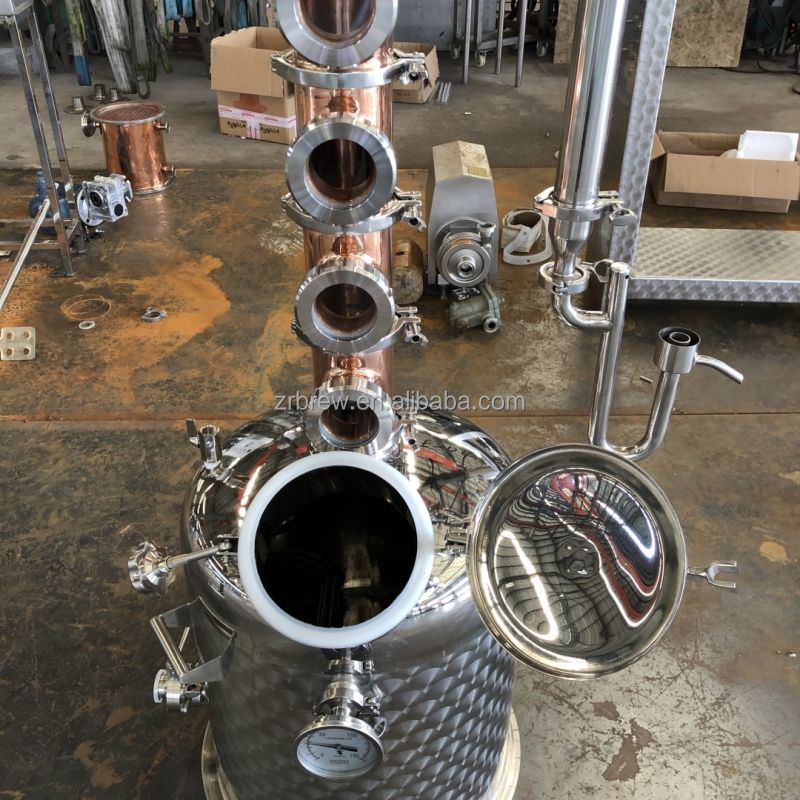

At the heart of the 100L Whiskey Column Still Spirit Distiller is its multi-plate copper fractioning column fitted with sight glass windows, the core component for whiskey distillation. This column design achieves controllable fractional distillation and stable internal reflux. Heavy vapors condense and flow back to the boiler, while refined alcohol vapors rise upward to the condenser, helping you separate cuts precisely and get cleaner whiskey distillate.

Efficiency & Visibility

The 100L Whiskey Column Still Spirit Distiller is designed for hands-on whiskey distilling operation. Sight glass ports on the copper column allow real-time observation of vapor and reflux status. A pressure gauge monitors working pressure continuously. The sampling port enables easy distillate sampling during whiskey runs, and the bottom discharge valve simplifies waste liquid draining. Flange connections are detachable for easy internal cleaning and maintenance, making this still a practical option for small-batch whiskey production.

100L Whiskey Column Still— Product Advantages

1. Material & Craftsmanship

    • Premium Red Copper Column Sections: Fabricated from high-purity red copper, the bubble cap trays inside the column efficiently adsorb sulfides from whiskey vapor, softening the taste and forming rich, layered malt flavor. Sight windows installed on column sections enable direct observation of bubble state and distillation progress.

    • 304 Hammered Stainless Steel Boiler: Diamond hammered SUS304 boiler has outstanding thermal conductivity and uniform heating performance. The textured tank improves structural strength and scratch resistance, fully meeting food-grade hygiene standards for whiskey production.

    • Copper Vapor Contact Path: The vapor flows through copper trays for long-time contact, which is the core to create authentic craft whiskey flavor. All spirit-wetted parts are food-grade materials, safe for alcoholic beverage manufacturing.

2. Functional Design

    •100L Working Volume: Compact capacity specially designed for small-batch craft whiskey distillation, perfectly suited for micro distilleries, brand trial production and recipe development. It occupies little floor space and requires lower initial investment.

    •Multi-tray Column Reflux System: The copper bubble cap column creates stable fractional distillation & natural reflux. It separates volatile impurities precisely and concentrates the malt aroma, delivering consistent high-quality whiskey hearts.

    •Curved Vapor Pipeline & High-efficiency Condenser: Optimized curved vapor pipeline smooths vapor rising. Stainless steel coil condenser realizes rapid and full condensation, reduces alcohol volatilization loss and raises whiskey yield.

    •Customizable Reflux Ratio: Adjustable reflux helps distillers tune the flavor profile of whiskey, to produce light, medium or rich style malt whiskey.

3. Temperature & Pressure Control & Monitoring

    •Built-in Pressure Gauge: Installed on the top of column to monitor real-time vapor pressure, stabilize distillation conditions and guarantee safe continuous operation.

    •Precise Cut-point Control: Combined temperature & pressure monitoring supports accurate separation of foreshots, heads, hearts and tails, stably collecting high-quality whiskey heart cut.

    •Gentle & Even Electric Heating: Electric heating option provides stable, mild heat input, prevents scorching the mash, and protects the delicate malt aroma of whiskey.

4. Structural Advantages

    •Bottom Drain Valve: Bottom mounted drain valve enables quick and complete discharge of spent mash after each distillation batch, shortening cleaning & turnaround time.

    •Reinforced Lifting Lugs: Heavy-duty lifting lugs on boiler body for convenient transport, positioning and installation of the whole still.

    •Independent Sampling Outlet: Special spirit sampling tap for real-time alcohol strength testing during whiskey distillation, convenient for on-site quality judgment.

    •Modular Assembly Structure: Detachable column segments, easy to disassemble, clean and maintain, reducing cross-contamination risk between different whiskey batches.

5. Premium Advantage

    •Professional Small-batch Whiskey Distillation System: This dedicated 100L copper column still is engineered for craft whiskey production. The copper tray fractionation brings clean, balanced malt notes. It is the ideal pilot distillation equipment for distillers to develop unique single malt whiskey formulas before scaling up to large commercial stills.
