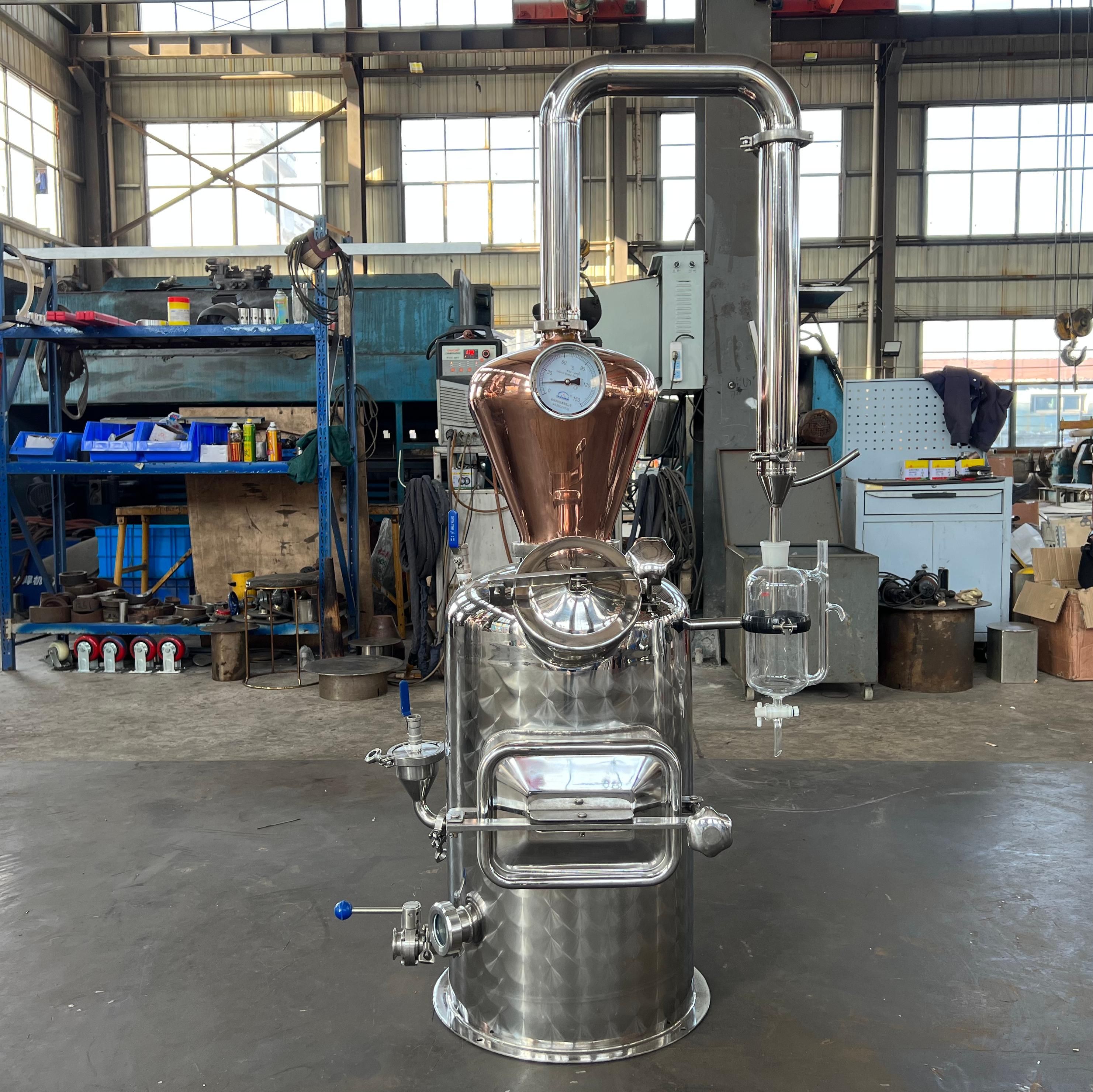

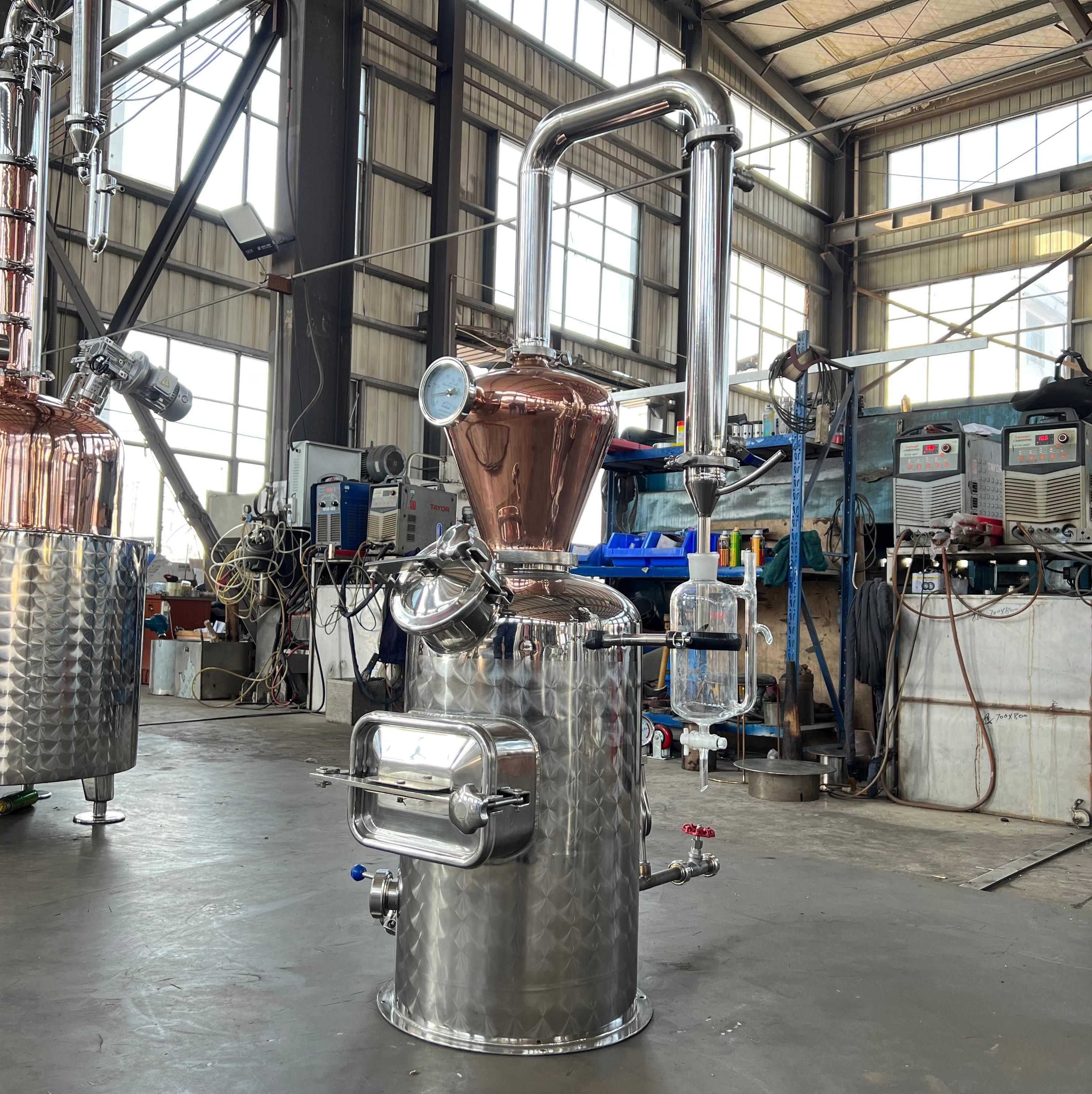

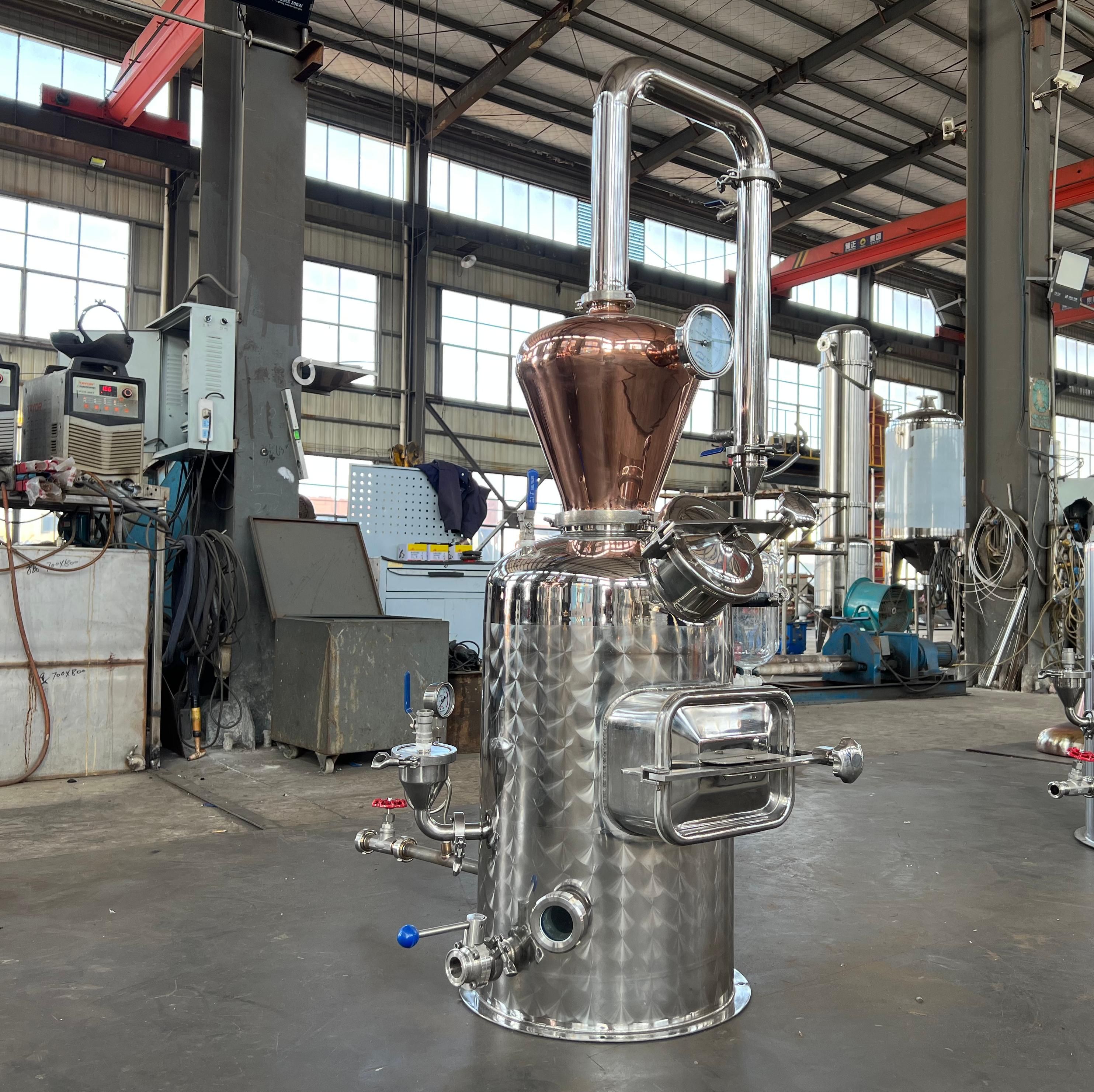

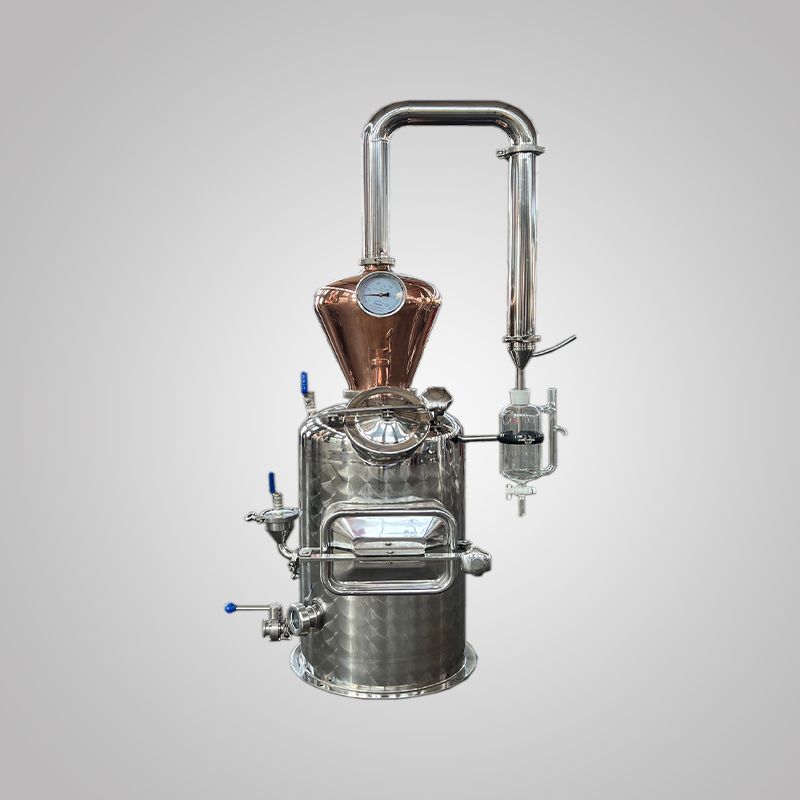

50L Copper Essential Oil Distiller

A compact, precision-built system for artisan essential oil and hydrosol production.

When your goal is to capture the pure, aromatic essence of botanicals, this 50L copper essential oil distiller delivers. Designed for small-batch artisan producers, it combines a durable stainless steel boiler with a pure copper distillation head and a dedicated glass-viewing essential oil separator. It is a complete, turnkey system for producing premium essential oils, hydrosols, and floral waters with remarkable clarity and yield.

Pure copper distillation head for superior aromatic retention.

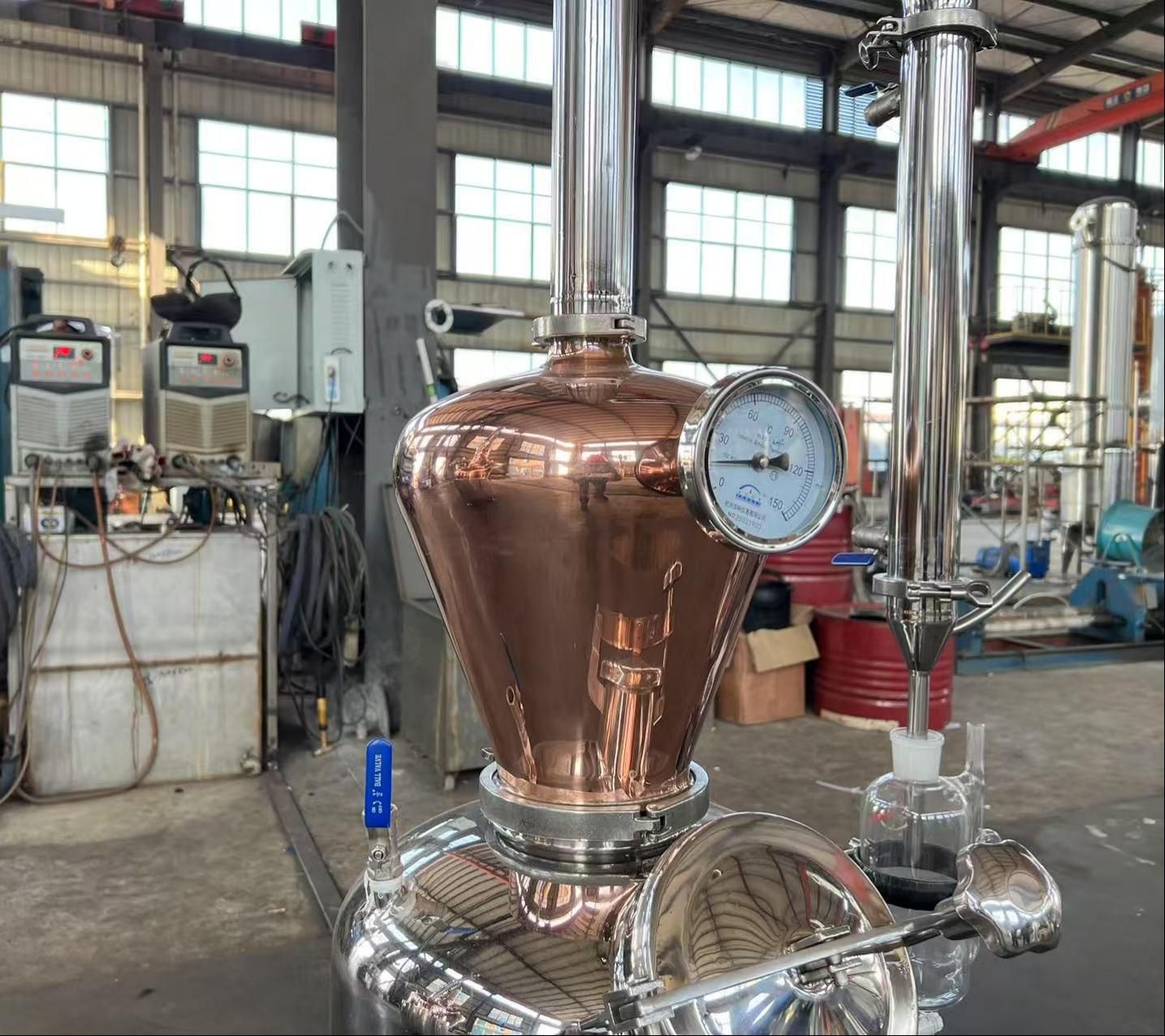

At the heart of this system is a handcrafted copper distillation head, shaped to promote optimal vapor expansion and gentle separation. Copper acts as a natural catalyst, removing sulfur compounds and other harsh elements that can dull delicate floral and herbal notes. The result is an essential oil with a remarkably clean, true-to-plant aroma—whether you are distilling lavender, rosemary, eucalyptus, or citrus peel.

Integrated essential oil separator with glass viewing window.

Unlike basic stills that require external separators, this system includes a dedicated essential oil collector with a glass viewing window. This allows you to monitor the separation of oil and hydrosol in real time, ensuring you capture every drop of precious essential oil. The separator is equipped with sanitary fittings and a precise valve system, making it easy to decant and collect your final product.

50L stainless steel boiler with copper dome.

The centerpiece is a 50L stainless steel boiler, chosen for its durability and ease of cleaning. The boiler features a large, quick-opening manway for loading botanicals, as well as a built-in sight glass and pressure gauge for safe, accurate monitoring. The copper dome sits securely on top, creating a sealed vapor path that preserves the delicate aromatics of your botanical material.

Compact, countertop-friendly design.

This 50L system is compact enough to fit on a sturdy workbench or countertop, making it ideal for small-scale artisan producers, herbalists, and research labs. The modular design allows for easy disassembly and cleaning, while the stainless steel and copper construction ensures years of reliable service.

50L Copper Essential Oil Distiller-Product Advantages

1. Material & Craftsmanship

• Hybrid Boiler Construction (Copper Inner, Hammered Stainless Outer): The 50L boiler features a high-purity red copper inner bowl, which acts as a natural catalyst to preserve the delicate aromatic compounds and terpenes of the botanical material during steam distillation. It is fully encased in a heavy-duty, diamond-hammered 304 stainless steel jacket, providing exceptional structural rigidity, superior thermal insulation, and maximum durability against the corrosive nature of essential oils.

• Classic Copper "Onion" Expansion Chamber: The boiler is topped with a beautifully hand-hammered copper "onion" head. This traditional design allows the hot, volatile vapors to expand and cool slightly before entering the gooseneck, preventing the "bumping" of plant material and ensuring a pure, unburnt essential oil profile.

• Precision Stainless Steel & Glass Condensation Path: The vapor travels through a smooth stainless steel gooseneck into a high-efficiency vertical condenser, which rapidly cools the vapor back into liquid. The system terminates in a specialized glass essential oil separator (Florentine flask), meticulously engineered to separate the lighter essential oil from the heavier hydrosol (floral water) based on density.

• Sanitary Mirror-Polished Finish & Precision Valves: All wetted surfaces feature a mirror-polished finish to prevent organic residue adhesion. The system is equipped with multiple high-precision brass/steel valves for precise control over steam, cooling water, and output flow, connected by heavy-duty tri-clamp fittings with food-grade silicone gaskets for a perfectly vapor-tight seal.

2. Functional Design

• 50L Precision Botanical Batch Capacity: Specifically sized for high-value essential oil production, aromatherapy distilleries, and R&D laboratories. The 50L working volume allows for the extraction of substantial yields of premium essential oil and hydrosol from delicate flowers, herbs, and spices without the high cost of industrial-scale runs.

• Integrated Essential Oil Separator (Florentine Flask): Unlike standard stills, this system features a dedicated, integrated glass oil separator. This allows the distiller to continuously and visually separate the essential oil from the hydrosol in real-time. The glass construction ensures zero contamination and allows for easy collection of the pure, high-value oil.

• Precision Multi-Valve Monitoring & Control: The boiler is equipped with high-accuracy dial thermometers and multiple control valves (visible on the left side). This allows the operator to precisely manage temperature, pressure, and vapor flow, ensuring delicate botanical compounds are not destroyed by excessive heat, resulting in a superior, true-to-nature aromatic profile.

• Compact, Space-Saving Vertical Design: The entire system is arranged vertically with the condenser and oil separator mounted on the side. This compact, integrated design significantly reduces the overall footprint, making it ideal for small workshops, laboratories, or boutique production spaces.

• Clean Electric/Steam Heating & Easy Maintenance: Optimized for clean electric heating (or gentle steam injection), the boiler guarantees a controlled, even boil that prevents scorching of the botanical material. The large front manway provides effortless access for loading the plant material and deep cleaning, while the bottom drain valve ensures quick removal of spent biomass. The adjustable feet provide absolute stability on any workbench or factory floor.
